GD3100 - Cutler Hammer Eaton 100 Amp 3 Pole 480VAC G-Frame Molded Case Circuit Breaker, Bolt-On, 65kAIC, Series C, LI Trip, UL Listed

GD3100

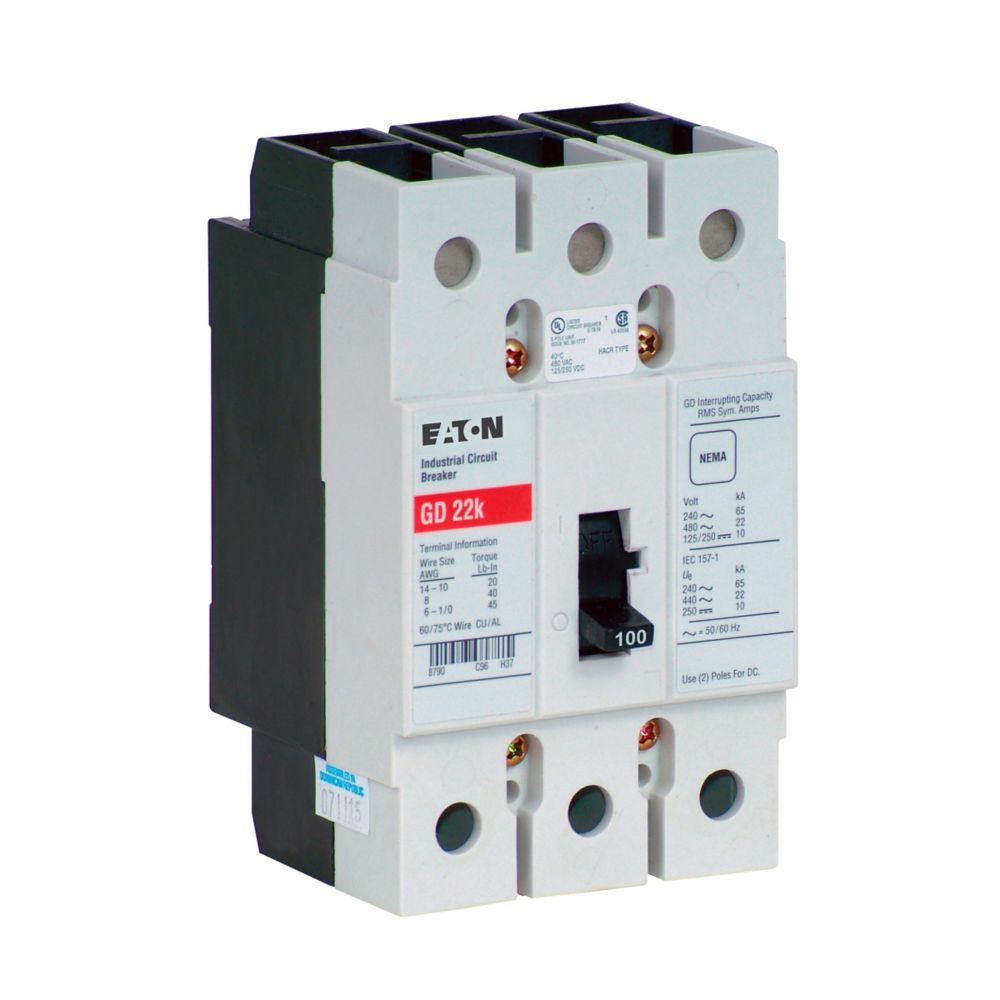

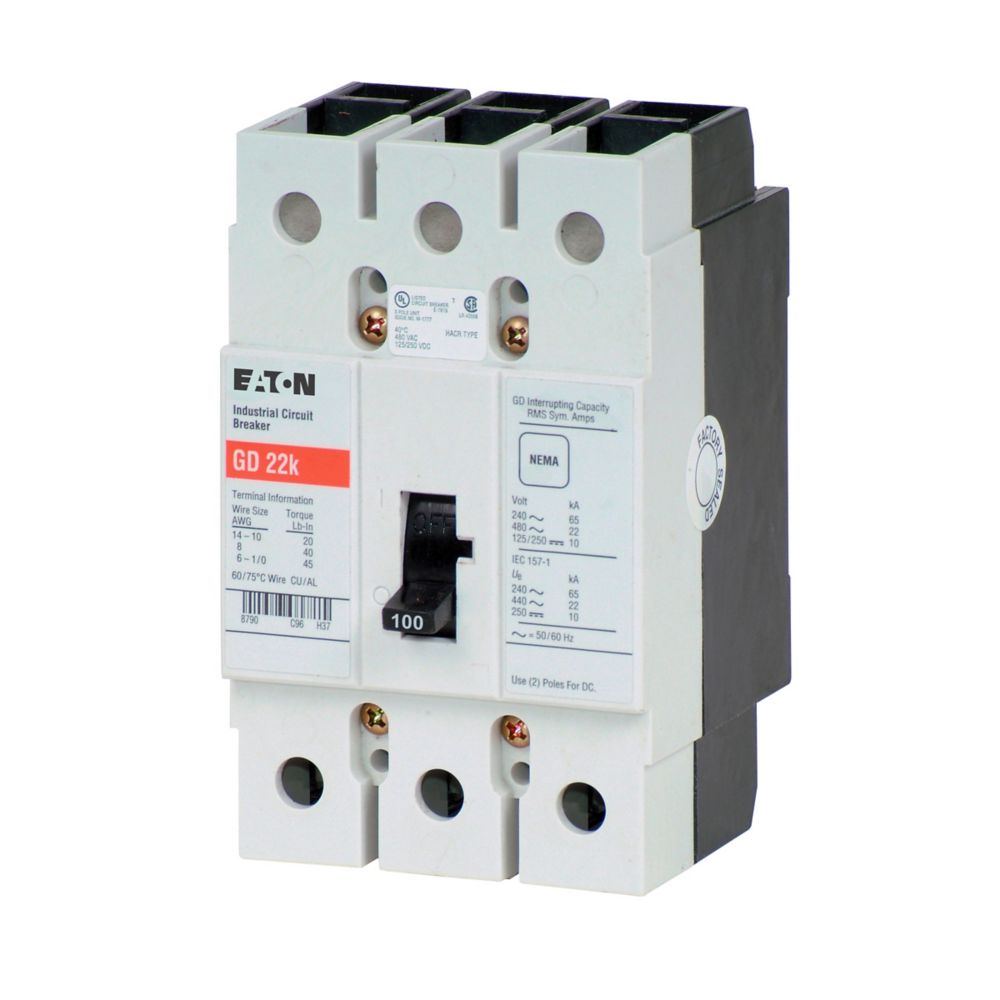

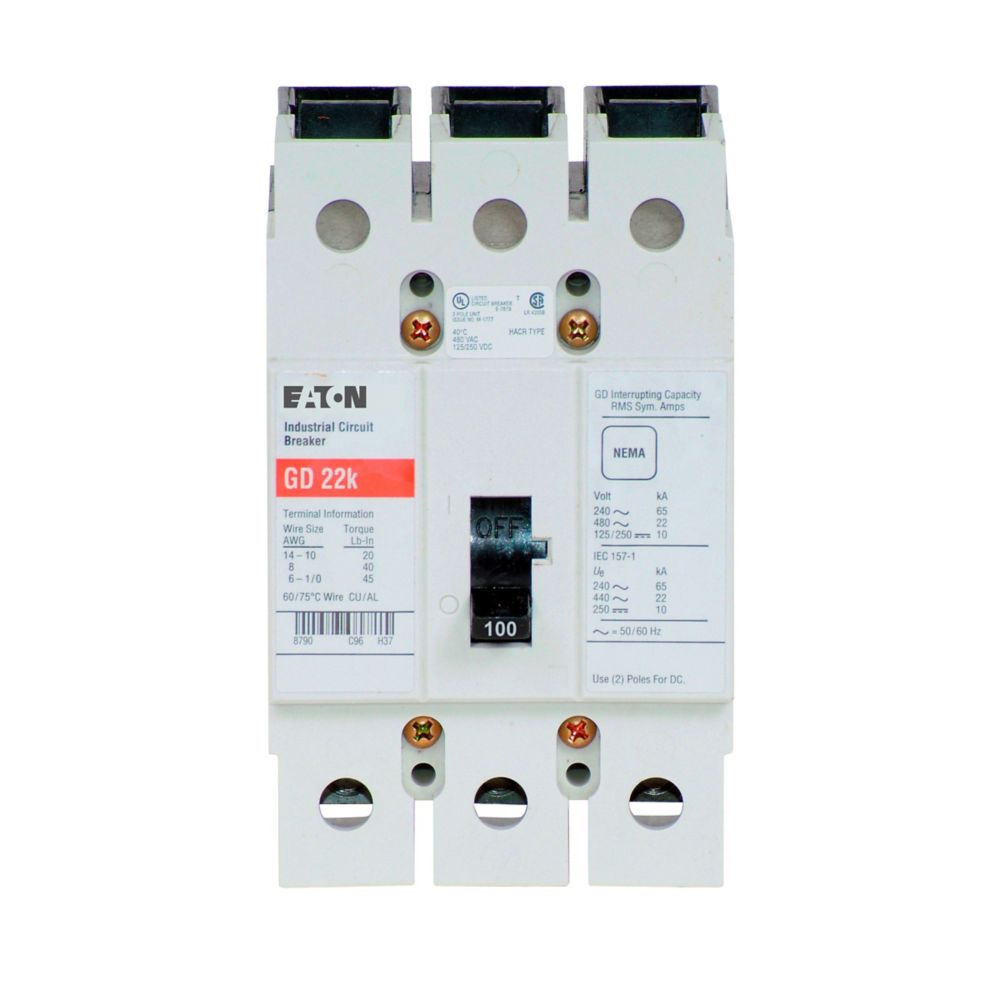

GD3100 is a Cutler Hammer Eaton Series C, G-frame, 3-pole molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This circuit breaker features a 100 Amp current rating, 480VAC/125-250VDC voltage rating, and bolt-on mounting for secure installation. It offers both long-time and instantaneous (LI) trip functions, with an interrupting rating of 65kAIC at 240VAC and 22kAIC at 480VAC. The GD3100 is UL listed and NEMA compliant, ensuring reliability and safety for your power distribution needs.

Key Specifications
• Part Number: GD3100
• Manufacturer: Cutler Hammer Eaton
• Amperage: 100 Amp
• Voltage: 480VAC, 125/250VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kAIC at 240VAC, 22kAIC at 480VAC
• Series/Frame: Series C, G-Frame
• Trip Unit: Fixed thermal, fixed magnetic (LI)
• Connection: Feed-Thru
• Certifications: UL Listed, NEMA
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GD3100
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GD
• Voltage : 480
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 22kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : G Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679072936
• GTIN : 00786679072936
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
• Weight : 2.05
• Certification : UL Listed
