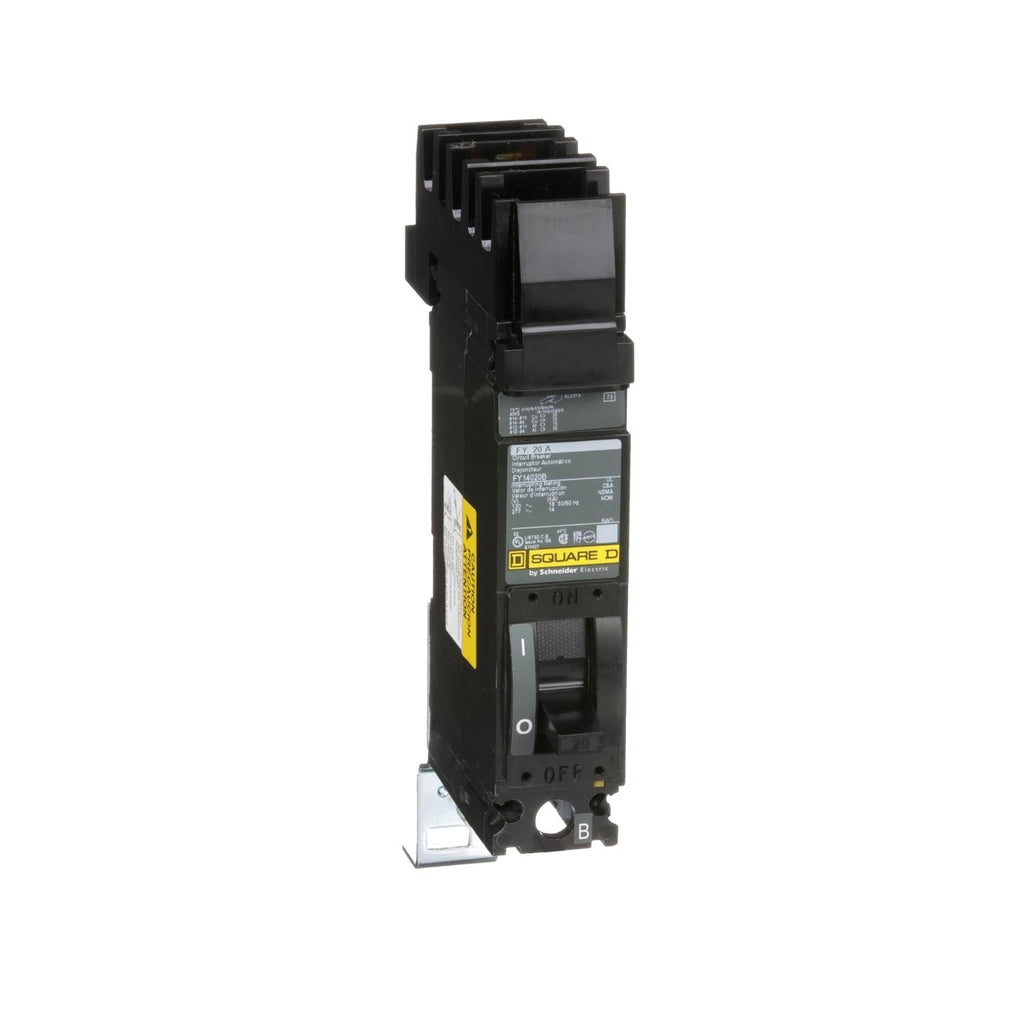

FY14020B - Square D 20 Amp 277 Volt 1 Pole Thermal Magnetic Circuit Breaker I-Line Mount

FY14020B

FY14020B is a 20 Amp, 277 Volt, 1 Pole thermal magnetic circuit breaker from Square D designed for reliable circuit protection with I-Line plug-in mounting.

This Square D FY14020B circuit breaker features a thermal-magnetic trip unit providing dependable overload and short-circuit protection. It has a 1 Pole configuration with a 20 Amp rating and 277 VAC voltage rating, suitable for commercial and light industrial applications. The breaker includes an 18kA interrupt rating at 277 VAC and uses an I-Line style plug-in connection with lug load terminals for secure and easy installation. It is part of the F Frame series and offers a magnetic hold current of approximately 275 Amps and an instantaneous trip current of 600 Amps.

Key Specifications
• Amperage: 20 Amps
• Voltage Rating: 277 VAC
• Poles: 1
• Interrupt Rating: 18kA @ 277 VAC, 25kA @ 120 VAC
• Mounting Type: I-Line plug-in
• Trip Unit: Thermal Magnetic
• Frame/Series: F Frame
• Magnetic Hold Current: Approx. 275 Amps
• Instantaneous Trip Current: 600 Amps
• Connection Type: Lug load terminals
• Certifications: Meets industry standards for molded case circuit breakers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FY14020B
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FY
• Voltage : 277
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901010081
• GTIN : 00785901010081
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
