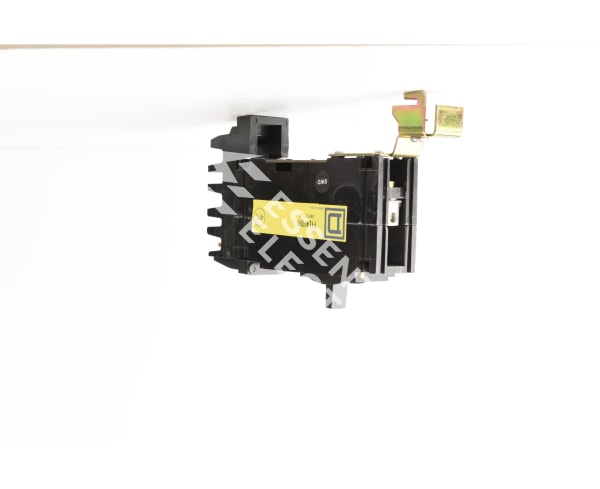

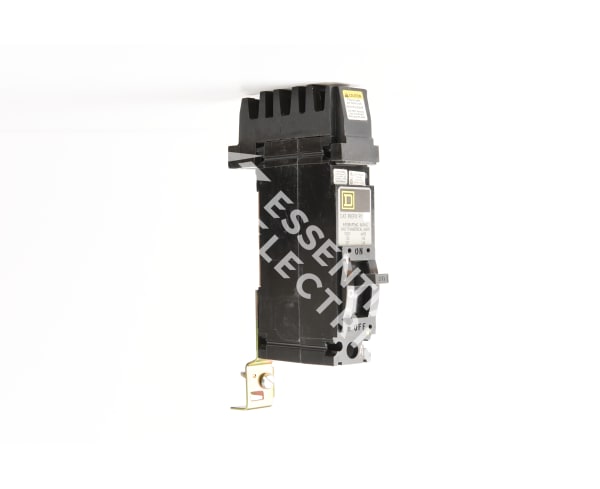

FY14020A - Square D 20 Amp 1 Pole 277V I-Line Molded Case Circuit Breaker

FY14020A

FY14020A is a Square D 20 Amp, 1 Pole, 277 Volt I-Line molded case circuit breaker designed for reliable circuit protection.This FY series breaker features thermal magnetic trip units, a 14kA interrupting rating at 240/277 VAC, and is suitable for plug-in I-Line mounting. It supports 125 VDC operation and complies with UL, CSA, and NOM certifications.

Key Specifications
• Amperage: 20 Amps
• Voltage: 277 VAC, 125 VDC
• Poles: 1
• Interrupting Rating: 14kA at 240/277 VAC
• Mounting Type: I-Line Plug-In
• Series/Frame: FY
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, NOM
• Frequency: 50/60 Hz
• Magnetic Hold Current: 275 A
• Magnetic Trip Current: 600 A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FY14020A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FY
• Voltage : 277
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 18kA@277V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901010074
• GTIN : 00785901010074
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 1.5 in (38.1 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 2
