Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
FXD62A250

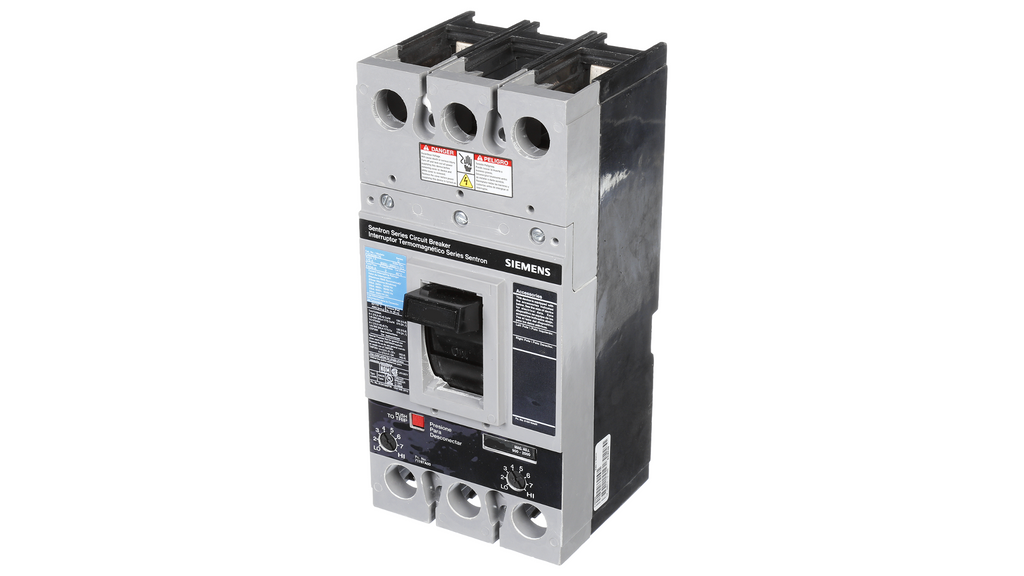

FXD62A250 is a Siemens molded case circuit breaker designed for use in panelboards, switchboards, control panels, and OEM equipment. This 2-pole breaker provides thermal-magnetic trip protection and is rated for 250 amperes at 600 VAC with a 22 kA symmetrical interrupt rating. The FXD6 frame family offers reliable performance in industrial and commercial applications.
- Amperage Rating: 250A
- Voltage: 600 VAC
- Number of Poles: 2
- Interrupt Rating: 22 kA RMS Symmetrical
- Trip Type: Thermal-Magnetic
- Frame Family: FXD6
- Breaker Type: Molded Case Circuit Breaker
- Wire Range: #6-350 kcmil Cu, #4-350 kcmil Al
- Suitable for panelboards, switchboards, and control panels
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: FXD62A250
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 250
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : I - Instantaneous
- Frame Size : FD Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Magnetic Only
Product Data
- Country of Origin : Mexico
- Weight : 14
- Certification : UL, CSA, IEC
