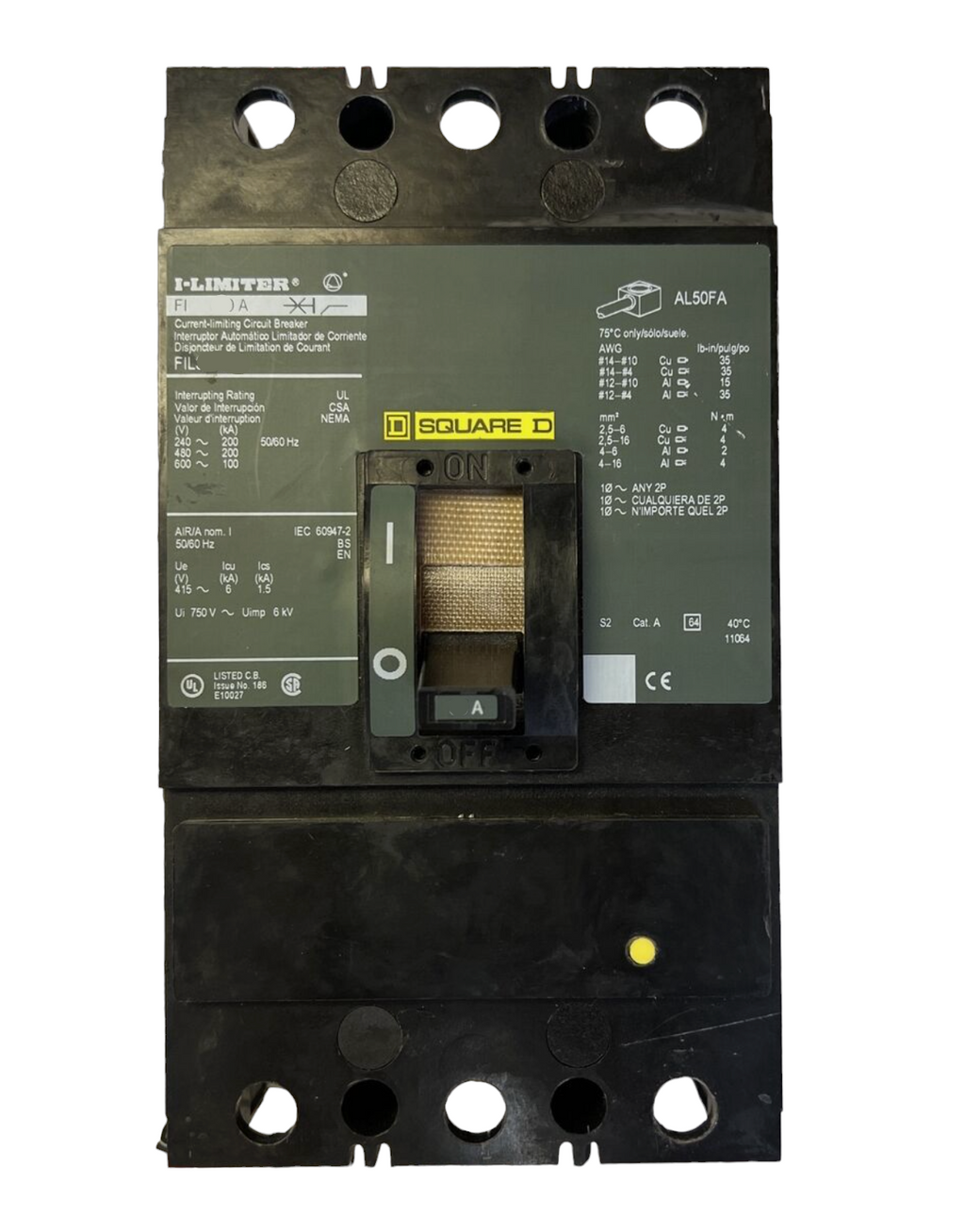

FIL360451021 - Square D 100A Frame 45A 3-Pole 600V Current Limiting Circuit Breaker

FIL360451021

FIL360451021 is a Square D molded case current limiting circuit breaker designed for reliable thermal-magnetic protection in industrial power distribution applications.

This 3-pole breaker features a 100 ampere frame with 45 ampere trip rating and is rated for 600 volt operation. The current limiting design provides enhanced protection against fault conditions. The breaker is UL listed and CSA certified, meeting industry standards for safety and performance. It includes the exclusive VISI-TRIP indicator for visual trip status confirmation and ambient temperature compensation for consistent operation across varying environmental conditions.

• Frame Amps: 100A
• Trip Amps: 45A
• Poles: 3
• Voltage Rating: 600V
• Interrupt Rating: 65KA @ 240VAC, 25KA @ 480VAC, 18KA @ 600VAC
• Type: Current Limiting Molded Case Circuit Breaker
• Trip Unit: Thermal-Magnetic
• Certifications: UL Listed, CSA Certified
• Features: VISI-TRIP Indicator, Ambient Compensated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120/240Vac shunt trip

Specifications

• Part Number: FIL360451021
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FIL Series
• Type : FIL
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 11
