Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
FI36090CBA

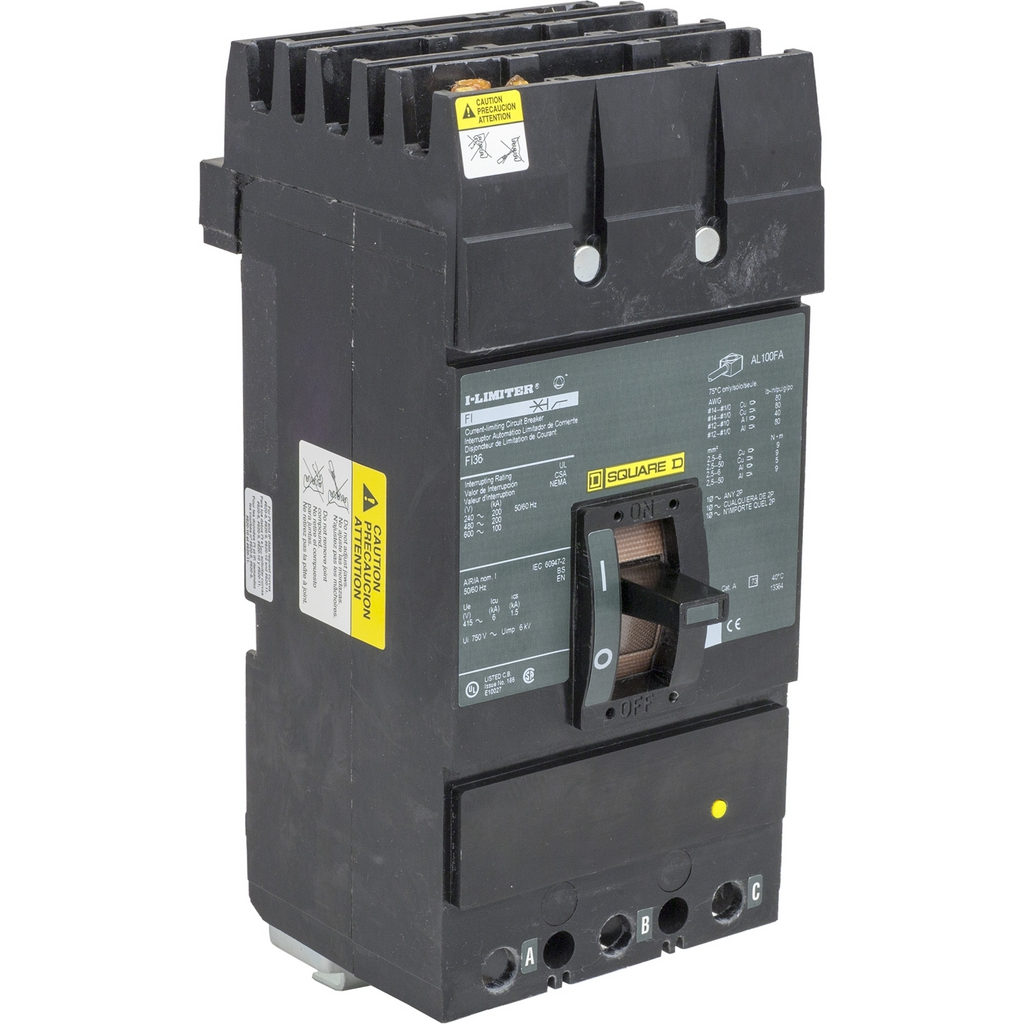

FI36090CBA is a 3 pole molded case circuit breaker rated for 90 amperes at 600 volts AC with thermal magnetic trip functions and I-Line style plug-in mounting. This current limiting circuit breaker is designed for industrial and commercial power distribution applications requiring reliable overcurrent protection and fast response times. Key Specifications
- Amperage Rating: 90 Amps
- Voltage Rating: 600V AC
- Poles: 3
- Frame Type: FI
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
- Mounting Style: I-Line Plug-In
- Current Limiting Capacity: 200kA at 480V
- Interrupting Rating: 100kA at 600V
Specifications
- Part Number: FI36090CBA
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : FI
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 12
