Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FI36070

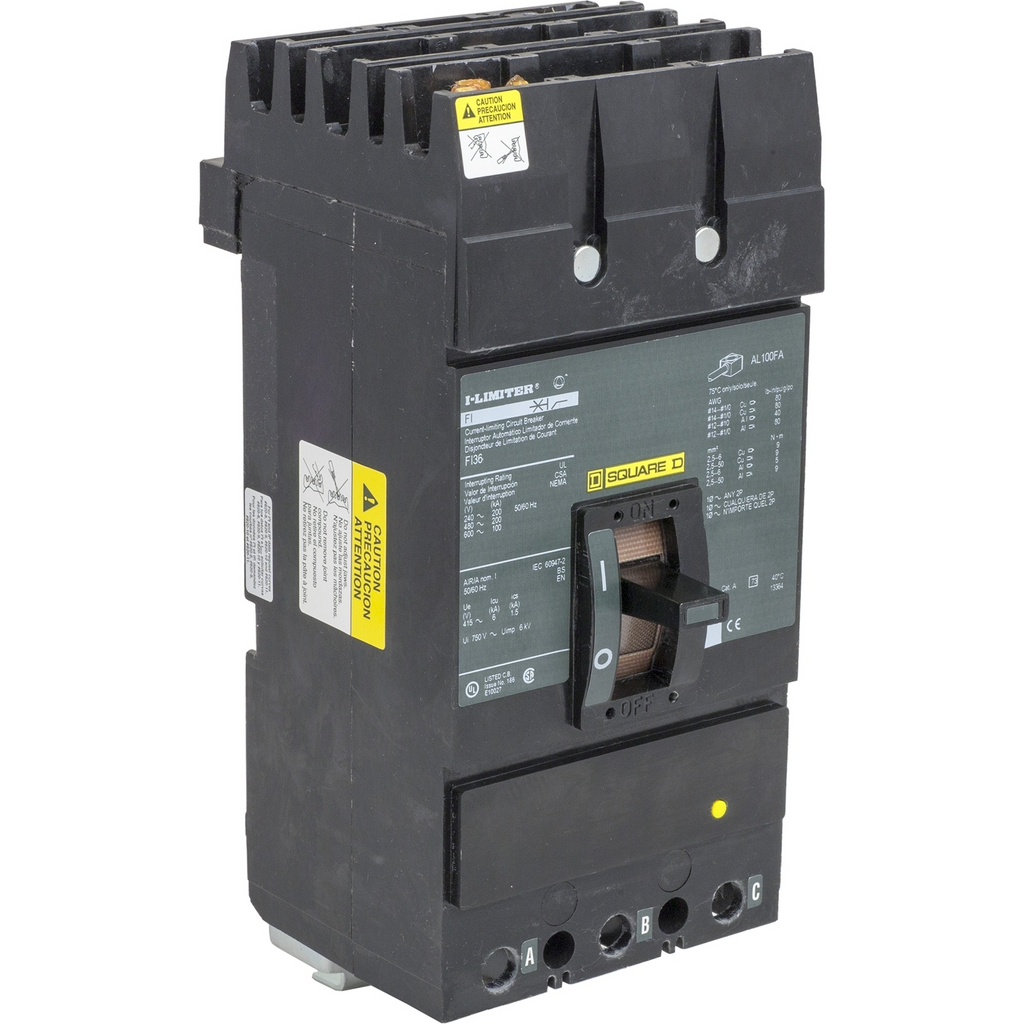

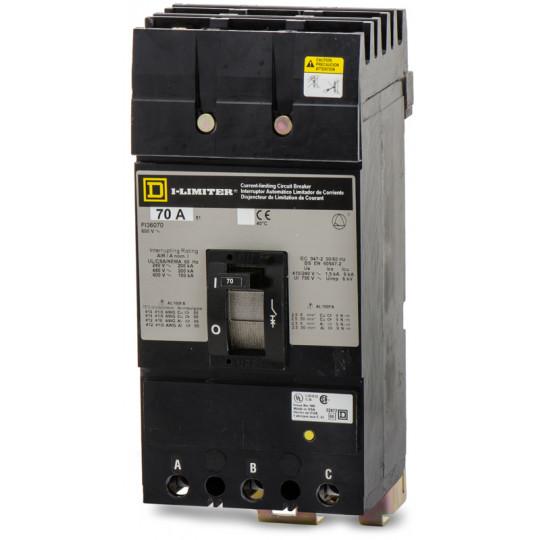

FI36070 is a Square D molded case circuit breaker with a 70 amp rating, designed for 600 volt applications with 3 poles and FI frame type.This thermal magnetic circuit breaker features a plug-on mounting type suitable for I-Line style installations. It provides current limiting protection with a 200kA interrupt rating at 480V, ensuring reliable performance in three-phase electrical systems. The breaker is UL, CSA, and CE certified for safety and compliance.
- Manufacturer: Square D
- Part Number: FI36070
- Amperage: 70A
- Voltage: 600V AC
- Poles: 3
- Frame Type: FI (I-Line style)
- Mounting Type: Plug-On
- Interrupt Rating: 200kA @ 480V
- Trip Unit: Thermal Magnetic
- Phase: 3
- Certifications: UL, CSA, CE
- Current Limiting Feature
Specifications
- Part Number: FI36070
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : FI
- Voltage : 600
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901210726
- GTIN : 00785901210726
- Country of Origin : Mexico
- Dimensions : Length 2 ft (0.61 m)
- Weight : 12
