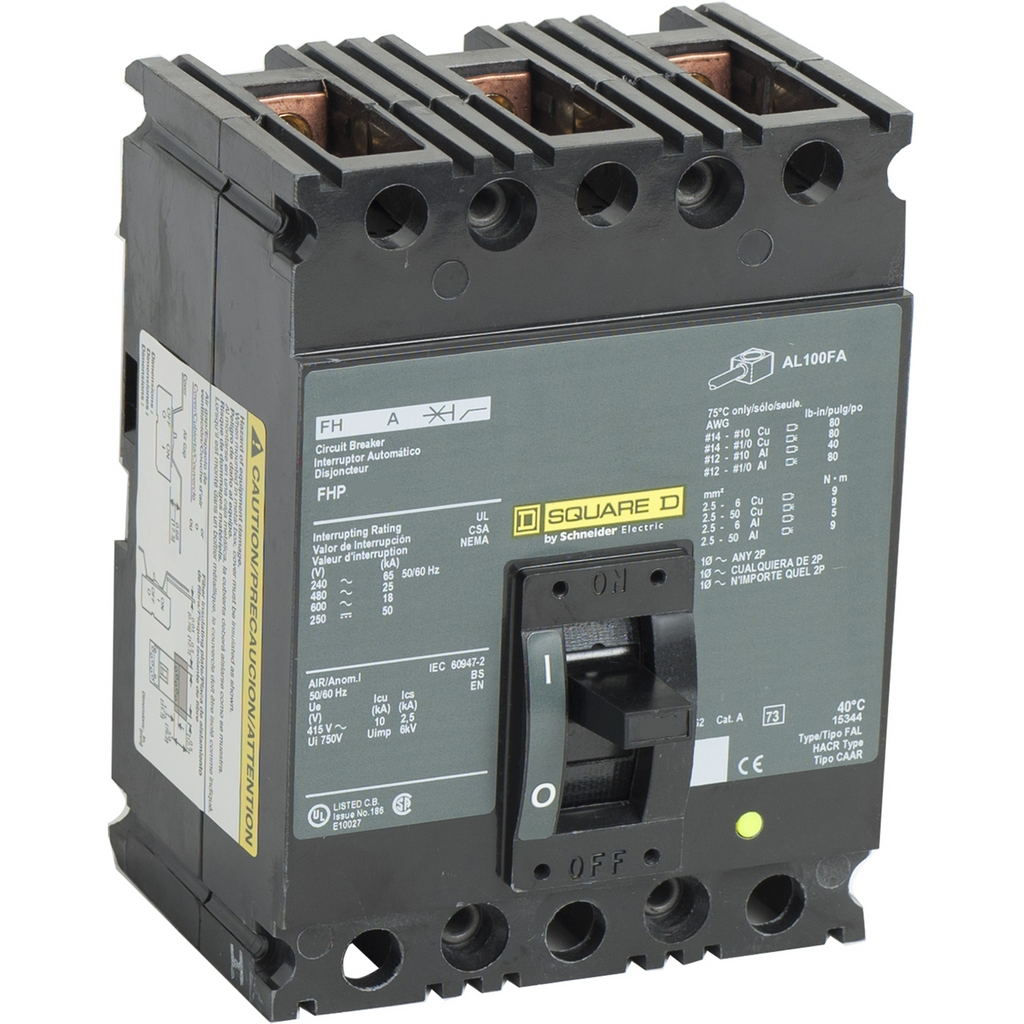

FHP36100V - Square D 100A 600V 3-Pole Thermal Magnetic Molded Case Circuit Breaker I-Line

FHP36100V

FHP36100V is a Square D 3-pole thermal magnetic molded case circuit breaker with a 100 ampere current rating and 600 volt maximum voltage rating designed for I-Line panelboards and switchboards.

This circuit breaker features a high interrupting rating of 25kA at 480V, thermal magnetic trip unit technology, and an F-frame size. It mounts using the I-Line style plug-in connection and is suitable for three-phase power distribution applications requiring reliable overcurrent protection.

• Amperage: 100 A
• Voltage Rating: 600 V AC
• Number of Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 25kA at 480V
• Series/Frame: FH Series, F-Frame
• Trip Unit: Thermal Magnetic
• Connection: I-Line connection line / lugs load
• Breaking Capacity Code: H
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FHP36100V
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FHP Series
• Type : FHP
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 5
