2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FHP36050

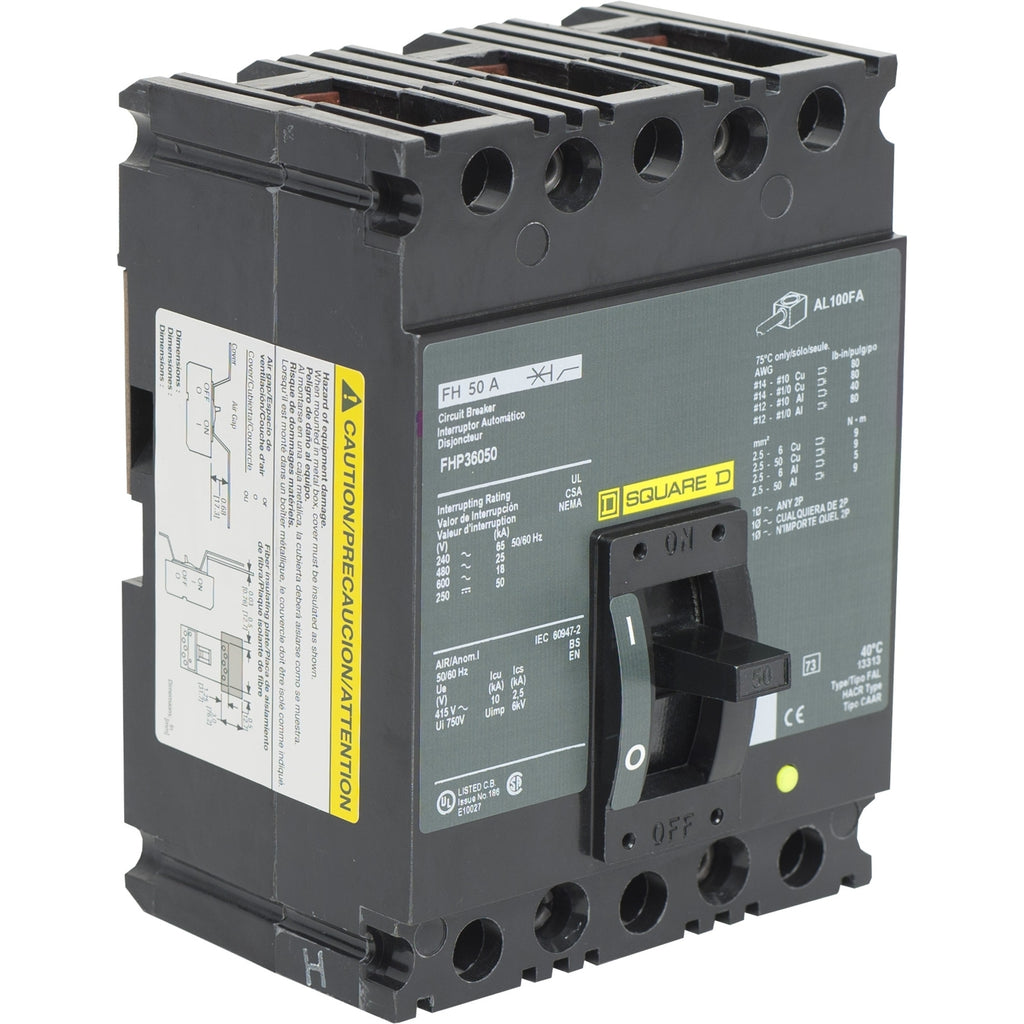

FHP36050 is a 50 amp, 600 volt, 3 pole molded case circuit breaker from Square D designed for reliable panel mounting and circuit protection.This Square D FHP36050 circuit breaker features a thermal magnetic trip unit, FHP frame type, and a high interrupting capacity rated at 25kA at 480VAC. It is a bolt-on style breaker suitable for 600V systems with a 3 pole configuration, providing robust protection for industrial and commercial electrical applications.
- Amperage: 50A
- Voltage Rating: 600V AC
- Poles: 3
- Interrupting Rating: 25kA at 480VAC
- Frame Type: FHP
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On / Panel Mount
- Frequency: 60Hz
- HACR Type Certified
- Dimensions: Approx. 4.5" W x 6.0" H x 3.13" D
Specifications
- Part Number: FHP36050
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FHP Series
- Type : FHP
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901313687
- Country of Origin : Mexico
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 5
