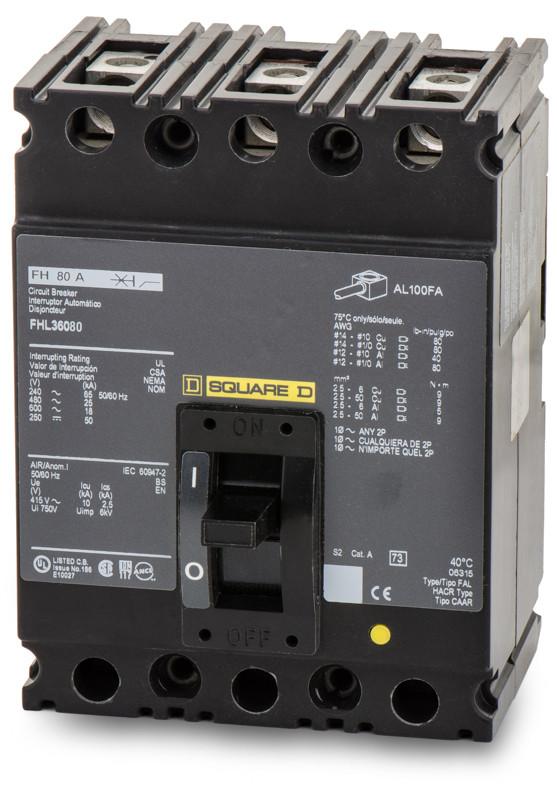

FHL36080 - Square D 80 Amp 600 Volt 3 Pole Thermal Magnetic Circuit Breaker FHL Frame

FHL36080

FHL36080 is a 3 pole, 80 amp, 600 volt thermal magnetic molded case circuit breaker from Square D's FHL series designed for unit mounting.This circuit breaker features a 25kA interrupting rating at 480V, feed-thru connection type, and includes long-time and instantaneous trip functions. It is UL and CSA certified and suitable for industrial and commercial applications requiring reliable overcurrent protection.

• Amperage: 80A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Unit Mount
• Interrupting Rating: 25kA at 480V
• Frame Type: FHL
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Connection Type: Feed-Thru
• Terminal Connection: Line and Load Side Lug
• Certifications: UL, CSA
• Standards: HACR
• Dimensions (LxWxH): 4.13 x 4.5 x 6.4 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FHL36080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FHL Series
• Type : FHL
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901563365
• GTIN : 00785901563365
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 5.07
• Certification : CSA-UL LISTED
