FHL36070 - Square D 70 Amp 600V 3 Pole Thermal Magnetic Circuit Breaker, Feed-Thru, 25kAIC at 480V

Save $1,561.14
SKU: FHL36070-New
Condition: New
Price:
$1,212.66 $2,773.80
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

FHL36070 - Square D Feed-Thru 70 Amp 3 Pole Circuit Breaker - Essential Electric Supply
FHL36070 - Square D 70 Amp 600V 3 Pole Thermal Magnetic Circuit Breaker, Feed-Thru, 25kAIC at 480V - Essential Electric Supply

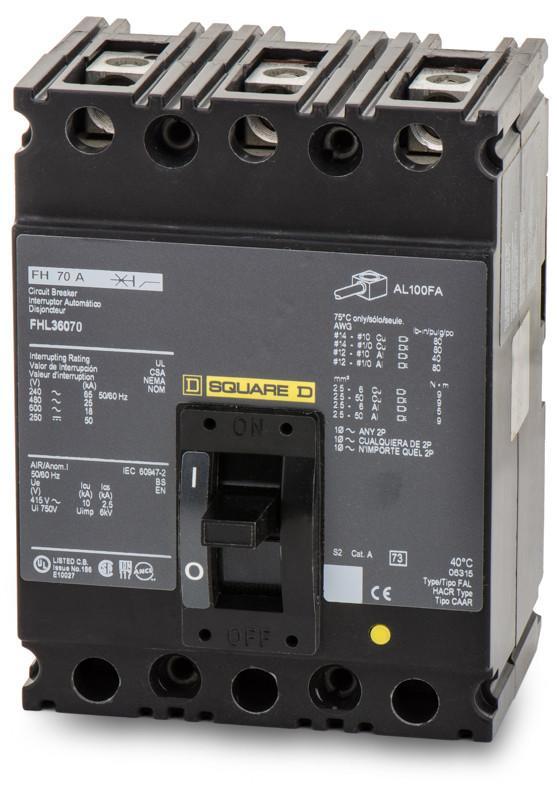

Roll over image to zoom in Click on image to zoom Images are for reference only
FHL36070 - Square D Feed-Thru 70 Amp 3 Pole Circuit Breaker - Essential Electric Supply
FHL36070 - Square D 70 Amp 600V 3 Pole Thermal Magnetic Circuit Breaker, Feed-Thru, 25kAIC at 480V - Essential Electric Supply

Description

FHL36070


FHL36070 is a Square D 3 pole, 70 amp thermal magnetic molded case circuit breaker designed for 600VAC applications.This FHL series breaker features a feed-thru connection type with LI long-time and instantaneous trip functions, providing reliable protection with a 25kA interrupting rating at 480V.
    Key Specifications
    • Amperage: 70 Amps
    • Voltage Rating: 600VAC
    • Number of Poles: 3
    • Mounting Type: Unit Mount
    • Interrupting Rating: 25kAIC at 480V
    • Series/Frame: FHL
    • Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
    • Connection Type: Feed-Thru (Line and Load Side Lugs)
    • Certifications: UL, CSA, HACR Compliant
    • Dimensions (LxWxH): 4.13 x 4.5 x 6.4 inches
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: FHL36070
    • Manufacturer : Schneider Electric
    • Brand : Square D
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : FHL Series
    • Type : FHL
    • Voltage : 600
    • Amperage : 70
    • Phase : 3
    • Poles : 3
    • AIC rating : 25kA@480V
    • Connection : Feed-Thru
    • Functions : LI - Long-Time and Instantaneous Trip
    • Frame Size : F Frame
    • Protection : Thermal Magnetic

    Product Data

    • UPC : 785901241478
    • GTIN : 00785901241478
    • Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
    • Weight : 4.601
    • Certification : UL LISTED-CSA

Accesories

Part Manufacture Sub Category
AL100FA
HPAFK
