Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FHL36050

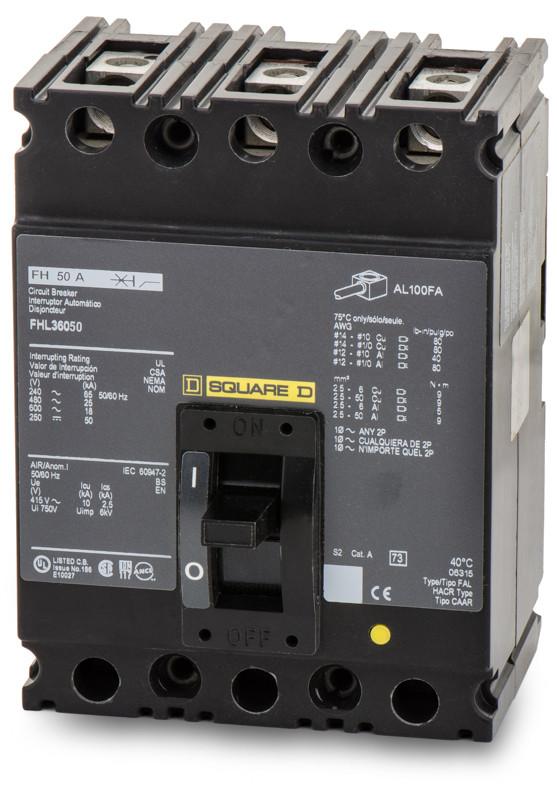

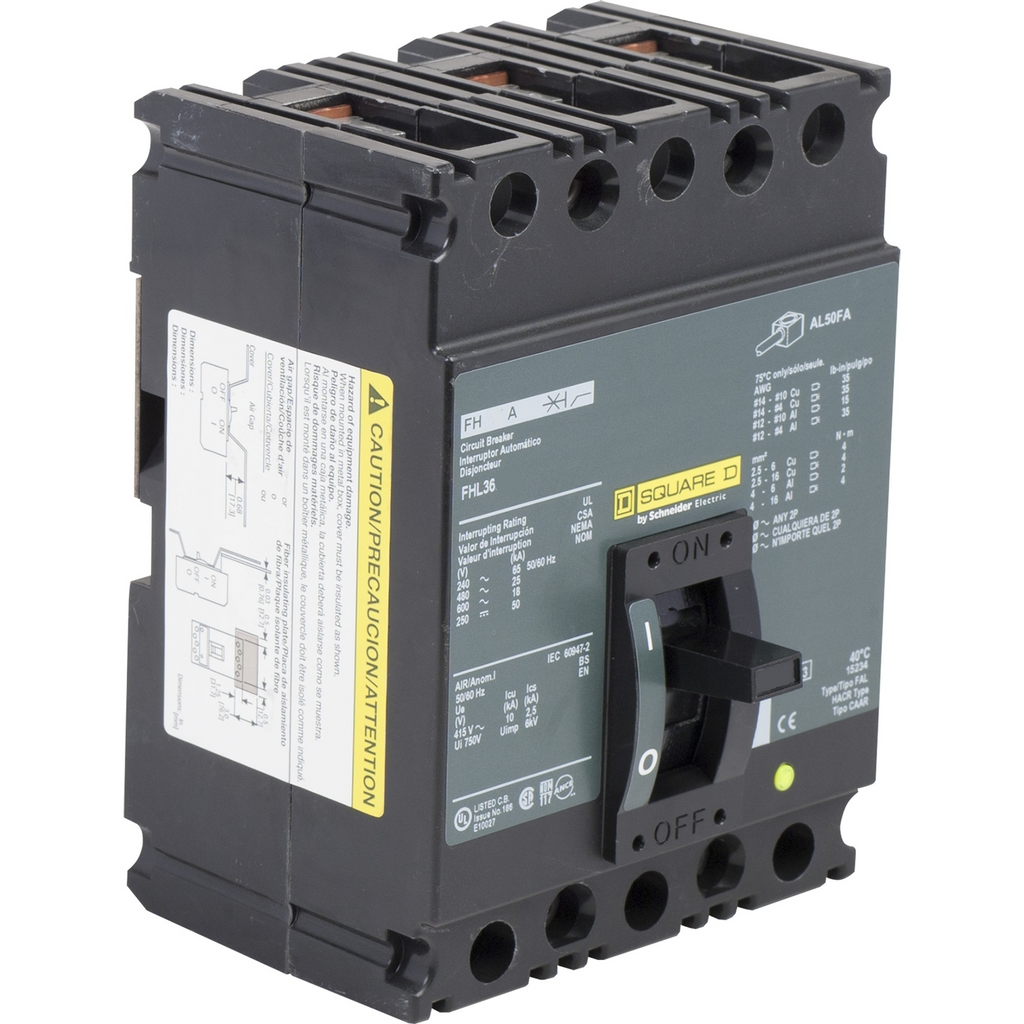

FHL36050 is a 3 pole, 50 amp, 600 volt thermal magnetic molded case circuit breaker by Square D designed for reliable industrial and commercial power distribution protection.This Square D FHL36050 circuit breaker features a thermal magnetic trip unit with a 25kA interrupt rating at 480V, suitable for high interrupting capacity applications. It includes feed-thru lugs for line and load side connections and is UL listed, built on the F-Frame series for durability and safety compliance.
- Manufacturer: Square D
- Part Number: FHL36050
- Amperage: 50 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Interrupt Rating: 25kA at 480V
- Trip Unit: Thermal Magnetic
- Mounting Type: Molded Case
- Series/Frame: F-Frame
- Feed-Thru Lugs: Yes
- Certifications: UL Listed
Specifications
- Part Number: FHL36050
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FHL Series
- Type : FHL
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901241454
- GTIN : 00785901241454
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 5.031
- Certification : CSA-UL LISTED
