Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FHL16090

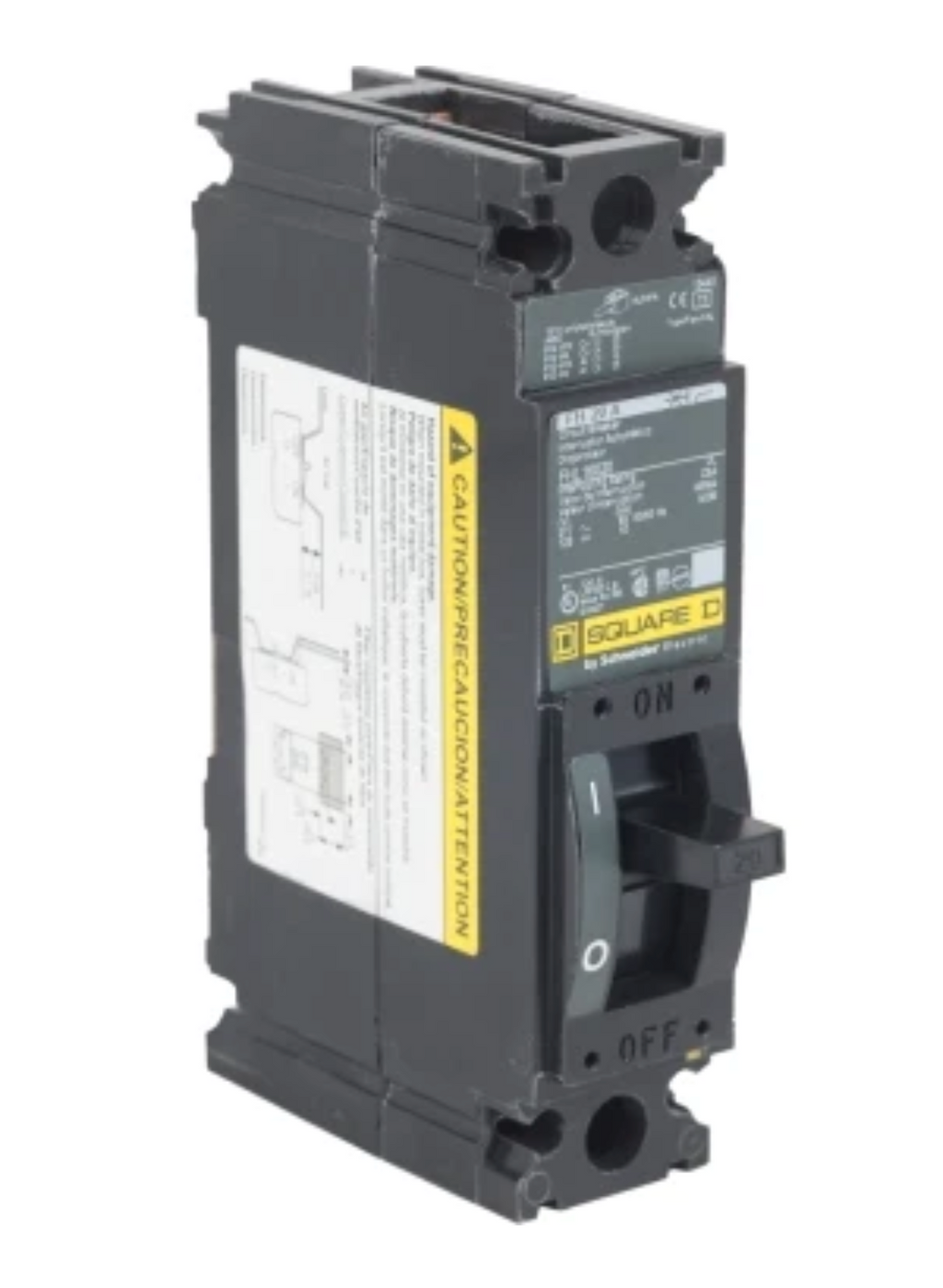

FHL16090 is a Square D 90 Amp, 1 Pole, 277 Volt thermal magnetic circuit breaker designed for reliable circuit protection.This molded case circuit breaker features a thermal magnetic trip unit providing both long-time and instantaneous trip protection. It is rated for 90 amps at 277 volts AC and has a single pole configuration suitable for various electrical applications. The breaker offers a 25kA interrupt rating at 240VAC and 277VAC, and 10kA at 125VDC, ensuring safe interruption of fault currents. It is part of the F-Frame series and designed for individual mounting.
- Key Specifications
- Amperage: 90 Amp
- Voltage: 277 Volt AC
- Poles: 1 Pole
- Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
- Interrupt Rating: 25kA @ 240VAC and 277VAC, 10kA @ 125VDC
- Series/Frame: F-Frame
- Mounting Type: Individually Mounted
- Part Number: FHL16090
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FHL Series
- Type : FHL
- Voltage : 277
- Amperage : 90
- Phase : 1
- Poles : 1
- AIC rating : 25kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
- GTIN : 00785901578321
- Country of Origin : Mexico
- Dimensions : Length 17.4 in (441.96 mm)
- Weight : 2
