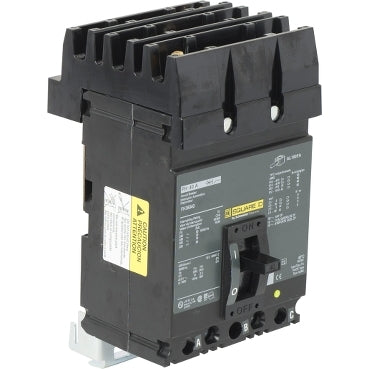

FH360401021 - Schneider Electric 40A 600V 3-Pole FH Series Molded Case Circuit Breaker Plug-On Mount

FH360401021

FH360401021 is a 40 amp, 600 volt, 3-pole molded case circuit breaker from Schneider Electric's FH series designed for reliable power distribution protection.This circuit breaker features a thermal-magnetic trip unit, plug-on mounting type compatible with I-Line panels, and a high interrupting rating suitable for industrial applications. It supports voltages up to 600 VAC and 250 VDC with interrupting capacities up to 65 kA at 240 VAC and 50 kA at 250 VDC. The breaker frame type is F, and it includes a 120/208/240 VAC shunt trip option. It is UL, CSA, and NOM certified for safety and performance.

Key Specifications
• Amperage: 40 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: Plug-On (I-Line compatible)
• Interrupting Rating: Up to 65 kA at 240 VAC
• Frame Type: F
• Trip Unit: Thermal-Magnetic
• Includes 120/208/240 VAC Shunt Trip
• Certifications: UL, CSA, NOM
• Terminal Wire Size: 12 to 1/0 AWG Aluminum, 14 to 1/0 AWG Copper
• Dimensions: 4.5" W x 4.13" D x 6" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FH360401021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FH
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
