Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Panel Mount
Description
FDPWT2213R

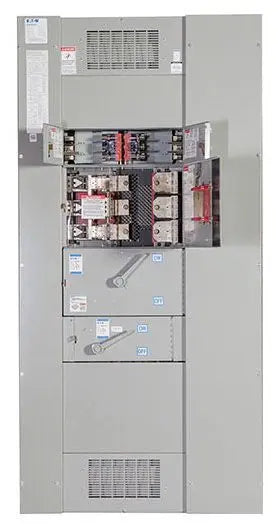

FDPWT2213R is a Type FDPW fusible panelboard switch designed for dual-amperage applications with Unit 1 rated at 30A and Unit 2 rated at 100A. This two-pole switch operates at 240 Vac or 250 Vdc and features Class R fuse compatibility for reliable overcurrent protection in panelboard installations. The switch is engineered for use in PRL4-F or CDP/FDP Distribution Panelboard chassis and includes an interlock mechanism for enhanced security and operational safety. Key Specifications
- Catalog Number: FDPWT2213R
- Unit 1 Rating: 30A
- Unit 2 Rating: 100A
- Voltage: 240 Vac / 250 Vdc
- Poles: Two-pole
- Fuse Type: Class R
- Wire Size: #14 AWG to 1/0 AWG
- Horsepower: 7.5 hp @ 240V AC (Unit 1), 30 hp @ 240V AC (Unit 2)
- Interrupting Capacity: 200 kAIC at 240V AC
- Mounting: Panel mount in distribution panelboard
- Enclosure Height: 10.3 inches
Specifications
- Part Number: FDPWT2213R
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Type FDP
- Type : FDPWT
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 200kA@240V
- Fuse Class : R,H,K
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : SFHA
Product Data
- UPC : 786679775042
- GTIN : 00786679775042
- Country of Origin : Mexico
- Dimensions : 22 in x 10 in x 8 in (Length/Depth x Height x Width)
- Weight : 15
