FDPW366MR - Cutler Hammer 600A 600V 3-Pole FDPW Fusible Panelboard Switch, Horizontal Mount

FDPW366MR

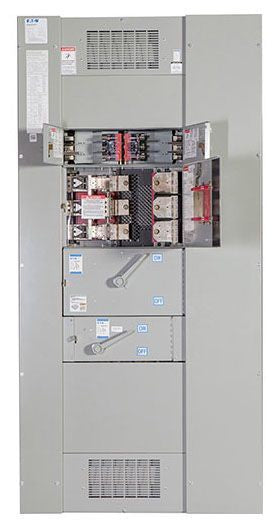

FDPW366MR is a Cutler Hammer fusible panelboard switch designed for 600 Amp, 600 Volt applications with a 3-pole configuration and horizontal mounting.

This Type FDPW switch features a fusible design with Class R fuses, a 200 kA interrupt rating, and is suitable for panelboard main switch use. It supports wire sizes from (2) #4 AWG to 600 kcmil or (4) 3/0 AWG to 250 kcmil, and has horsepower ratings of 200 hp at 240 VAC, 400 hp at 480 VAC, and 500 hp at 600 VAC. The switch is built for reliable performance in industrial and commercial electrical distribution systems.

• Manufacturer: Cutler Hammer
• Part Number: FDPW366MR
• Amperage: 600A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Type: FDPW Fusible Panelboard Switch
• Mounting Type: Horizontal Panel Mount
• Interrupt Rating: 200 kAIC
• Fuse Class: Class R
• Wire Size Range: (2) #4 AWG-600 kcmil or (4) 3/0 AWG-250 kcmil
• Horsepower Ratings: 200 hp at 240 VAC, 400 hp at 480 VAC, 500 hp at 600 VAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FDPW366MR
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Panel Mount
• Family : Type FDP
• Type : FDPW
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Fuse Class : R,H,K
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : TFK

Product Data

• UPC : 786679783955
• GTIN : 00786679783955
• Country of Origin : Mexico
• Dimensions : 25 in x 10.25 in x 16.5 in (Length/Depth x Height x Width)
• Weight : 55.12
• Certification : UL Listed
