FDPW323 - Cutler Hammer 100A 3-Pole Fusible Panelboard Switch 240V

FDPW323

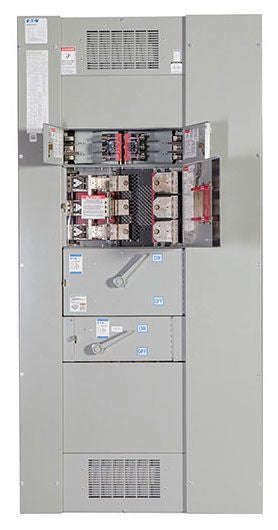

FDPW323 is a Cutler Hammer fusible panelboard switch designed for commercial, industrial, and service entrance applications to protect and switch feeder and branch circuits. This switch is rated for 100 amps and 240 volts AC, with three poles for reliable circuit protection and switching. The FDPW323 is a horizontally mounted, fusible switch suitable for panelboard installations. It features a robust design for load break and load make operations, making it ideal for demanding environments. The switch is compatible with Class R fuses and supports wire sizes from #14 to 1/0.

• Amperage: 100A
• Voltage: 240V AC, 250V DC
• Poles: 3
• Mounting Type: Horizontal
• Interrupt Rating: 200kA at 240V AC, 10kA at 250V DC
• Series/Frame: FDP
• Fuse Class: Class R
• Wire Size: #14 to 1/0
• Application: Panelboard
• HP Rating: 30 HP at 240V AC
• Load Break/Make: Yes
• NEMA Rating: 1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FDPW323
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Panel Mount
• Family : Type FDP
• Type : FDPW
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R,H,K
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : TB

Product Data

• Weight : 35
