2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Panel Mount
Description
FDP368T

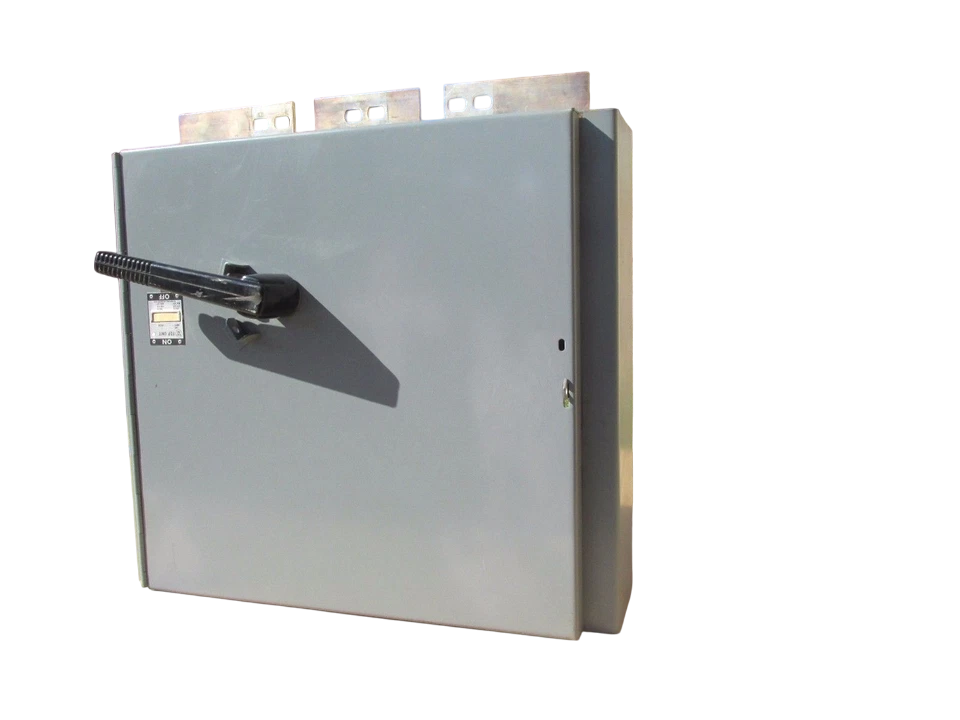

FDP368T is a three-pole, 1200A, 600VAC fusible panelboard switch from Eaton's FDPW series, designed for commercial and industrial applications requiring reliable circuit protection and switching. This Eaton FDP368T fusible panelboard switch features a vertical mounting configuration, Class L fuse provision, and a top feed main connection. It is rated for 1200A continuous current and 600VAC, with a maximum interrupting capacity of 200 kAIC. The switch is suitable for use in NEMA 1 enclosures and supports wire sizes (4) 250-750 kcmil or (8) #3/0 AWG-250 kcmil. It is ideal for feeder and branch circuit protection in panelboards and switchboards.
- Manufacturer: Eaton
- Part Number: FDP368T
- Series/Frame: FDPW
- Amperage: 1200A
- Voltage: 600VAC
- Poles: 3
- Interrupt Rating: 200 kAIC
- Mounting Type: Vertical
- Connection: Top Feed Main
- Fuse Class: Class L
- Wire Size: (4) 250-750 kcmil or (8) #3/0 AWG-250 kcmil
- Enclosure Type: NEMA 1
Specifications
- Part Number: FDP368T
- Manufacturer : Eaton
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Type FDP
- Type : FDP
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Fuse Class : T
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : HED
Product Data
- Weight : 150
