Product Info
- Manufacturer:Eaton
- Sub-Category:Panel Mount
Description
FDP323

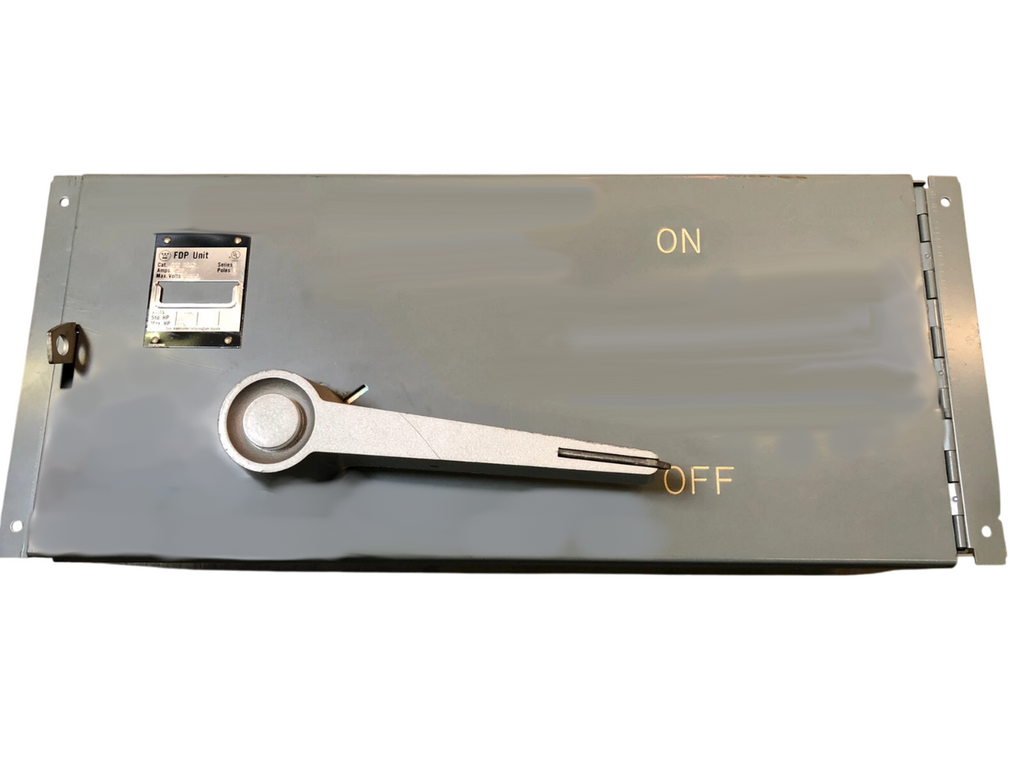

FDP323 is an Eaton fusible panelboard switch designed for commercial and industrial power distribution applications. This heavy-duty switching device provides reliable disconnection and overcurrent protection in electrical systems requiring manual isolation and fuse-based circuit protection. FDP323 delivers robust performance with a 100-amp current rating at 240 volts, three-pole configuration, and Class R fuse compatibility for enhanced safety and selectivity. The switch features a horizontal mounting design suitable for panelboard integration, with wire sizes accommodating #14 through 1/0 AWG conductors. Built with painted galvanized steel construction, this fusible switch is UL Listed and rated for 30 horsepower at 240 volts single-phase or three-phase applications.
- Amperage Rating: 100A
- Voltage Rating: 240V AC
- Number of Poles: Three-pole
- Fuse Class: Class R
- Wire Size: #14 to 1/0 AWG
- Horsepower Rating: 30 HP at 240V
- Interrupt Rating: 200 kAIC at 240V
- Enclosure Material: Painted galvanized steel
- Mounting Type: Horizontal panelboard
- Certifications: UL Listed
Specifications
- Part Number: FDP323
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Type FDP
- Type : FDP
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : ED
Product Data
- Weight : 35
