Product Info
- Manufacturer:Eaton
- Sub-Category:Panel Mount
Description
FDP326TR

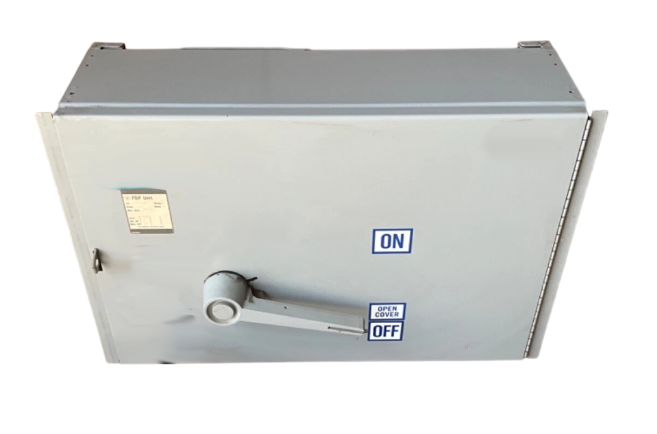

FDP326TR is a three-pole fusible panelboard switch rated 600 amperes at 240 volts AC, designed for commercial, industrial, and service entrance applications to protect and switch feeder and branch circuits. This Type FDP fusible switch features a maximum interrupting capacity of 200,000 amperes RMS symmetrical and is 100% load break and load make rated. The unit accommodates Class R fuses and supports wire sizes from #4 AWG to 600 kcmil or #3/0 AWG to 250 kcmil, with a maximum horsepower rating of 200 HP at 240 Vac. The switch is vertically mounted with top feed main connection and comes in a 16X unit size.
- Amperage Rating: 600A
- Voltage Rating: 240V AC
- Number of Poles: 3
- Interrupt Rating: 200 kAIC
- Fuse Class: Class R
- Mounting: Vertical, Top Feed Main
- Wire Size: #4 AWG-600 kcmil or #3/0 AWG-250 kcmil
- Horsepower Rating: 200 HP at 240V
- Unit Size: 16X
- Switch Type: Fusible Panelboard
- UL Listed
Specifications
- Part Number: FDP326TR
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Type FDP
- Type : FDP
- Voltage : 240
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : ED
Product Data
- Weight : 85
