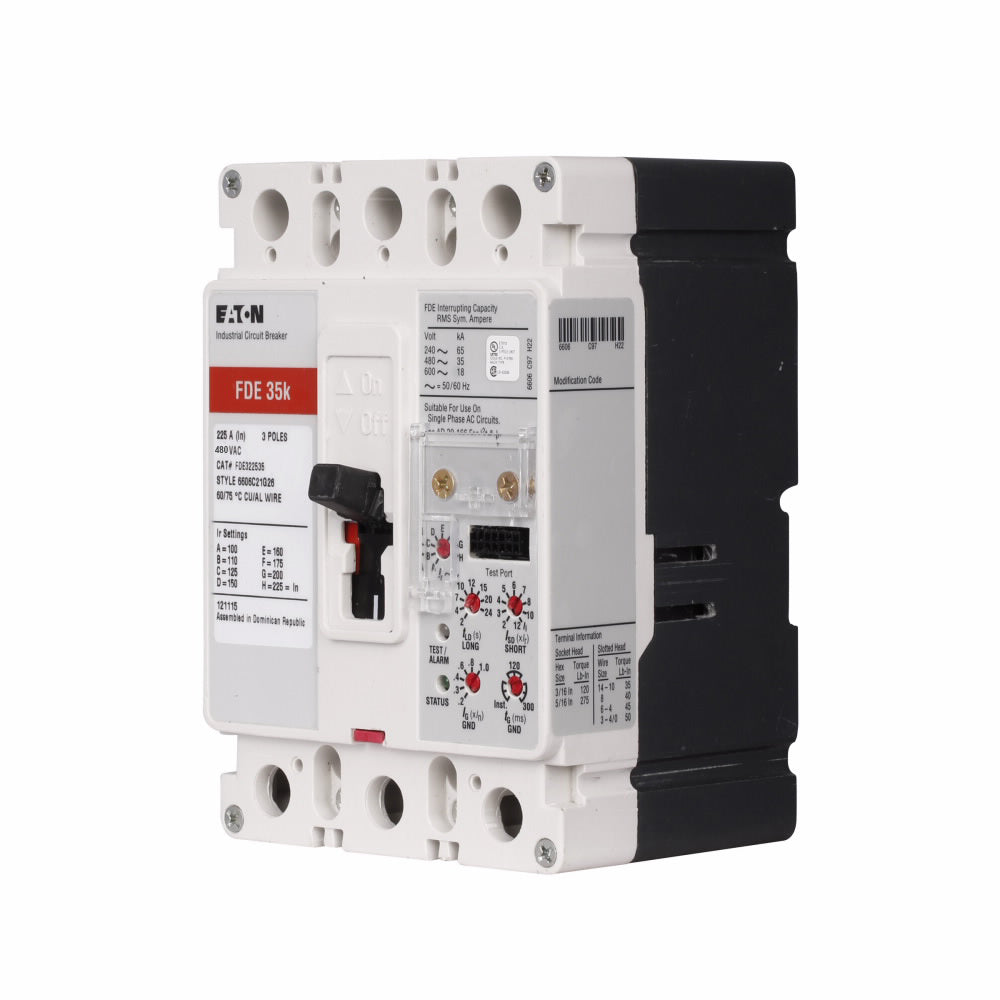

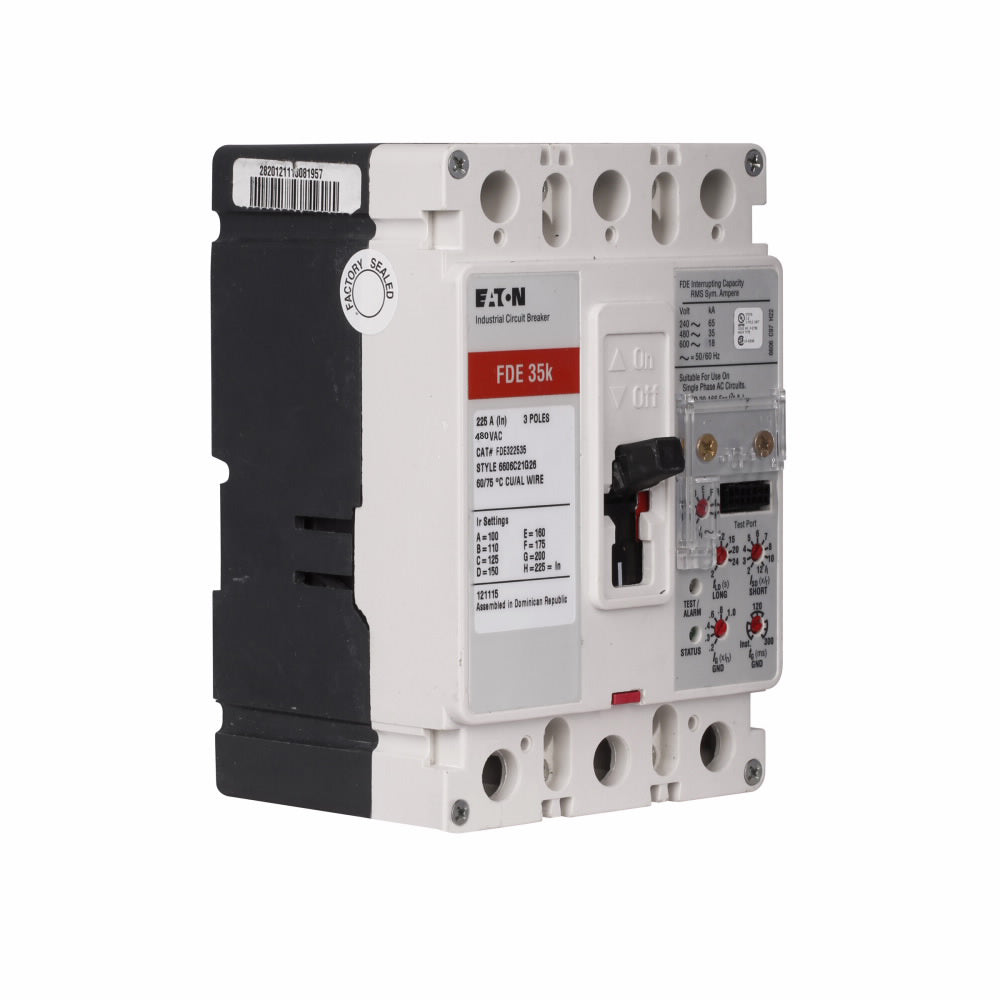

FDE322532 - Cutler Hammer 225A 600VAC 3-Pole F-Frame Electronic LSI Trip Circuit Breaker

FDE322532

FDE322532 is a Cutler Hammer Series C F-frame molded case circuit breaker rated for 225 amps and 600 VAC/250 VDC operation with electronic LSI trip technology.FDE322532 features a 3-pole design with a 35 kA interrupt rating at 480 VAC and 65 kA at 240 VAC, suitable for panel mounting. It provides reliable protection with an electronic long-time, short-time, and instantaneous (LSI) trip unit and complies with industry certifications for safety and performance.

Key Specifications
• Amperage: 225 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame: F-frame (Series C)
• Trip Unit: Electronic LSI (Long-time, Short-time, Instantaneous)
• Interrupt Rating: 35 kA @ 480 VAC, 65 kA @ 240 VAC
• Mounting Type: Panel mount
• Manufacturer: Cutler Hammer (Eaton)
• Category: Molded Case Circuit Breaker
• Certifications: Industry standard safety certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FDE322532
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FDE
• Voltage : 480
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : F Frame
• Protection : Solid State

Product Data

• UPC : 786685112138
• GTIN : 00786685112138
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 4.13 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Certification : UL Listed
