Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
FDCE308036

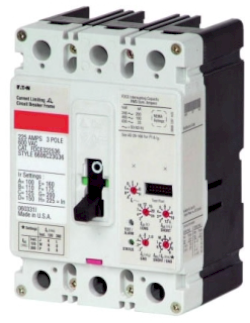

FDCE308036 is a 3-pole, 600-volt, 80-ampere molded case circuit breaker from Eaton (Cutler Hammer division) designed for industrial and commercial power distribution applications. This F-Frame circuit breaker features an electronic trip unit with LSIG (Long-time, Short-time, Instantaneous, Ground fault) protection technology, delivering reliable overcurrent and ground fault protection. The breaker is HACR rated and suitable for use in HVAC systems and other demanding applications requiring high-speed interruption and consistent performance across varying load conditions. Key Specifications
- Amperage: 80 Amps
- Voltage: 600 VAC
- Poles: 3
- Frame Size: F-Frame
- Trip Unit: 310+ LSIG Electronic
- Interrupt Rating: 100 kAIC at 480 VAC / 18 kAIC at 600 VAC
- Mounting: Bolt-on
- HACR Rated: Yes
- Terminal Configuration: Line and load terminals
Specifications
- Part Number: FDCE308036
- Manufacturer : Westinghouse
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FDCE
- Voltage : 600
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Frame Size : F Frame
- Protection : Solid State
Product Data
- UPC : 786685237206
- GTIN : 00786685237206
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.4
- Certification : UL Listed
