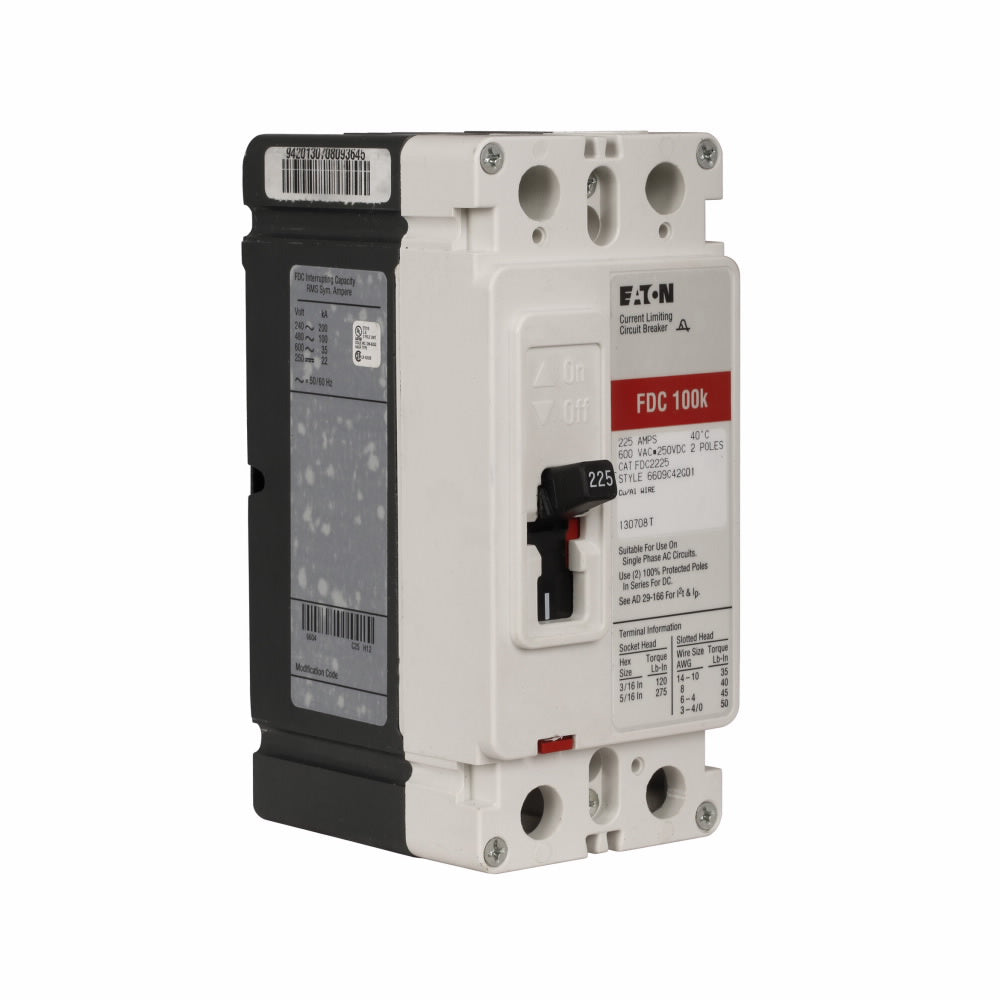

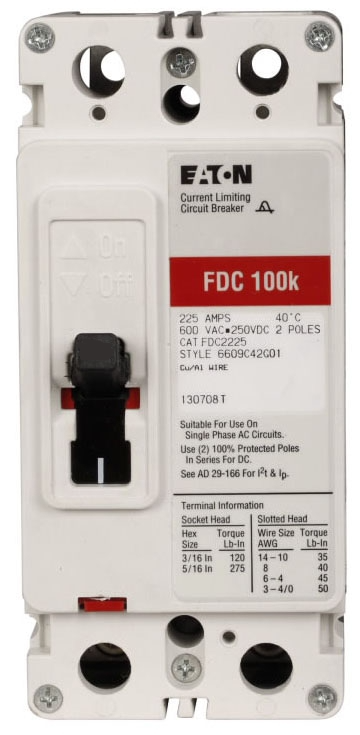

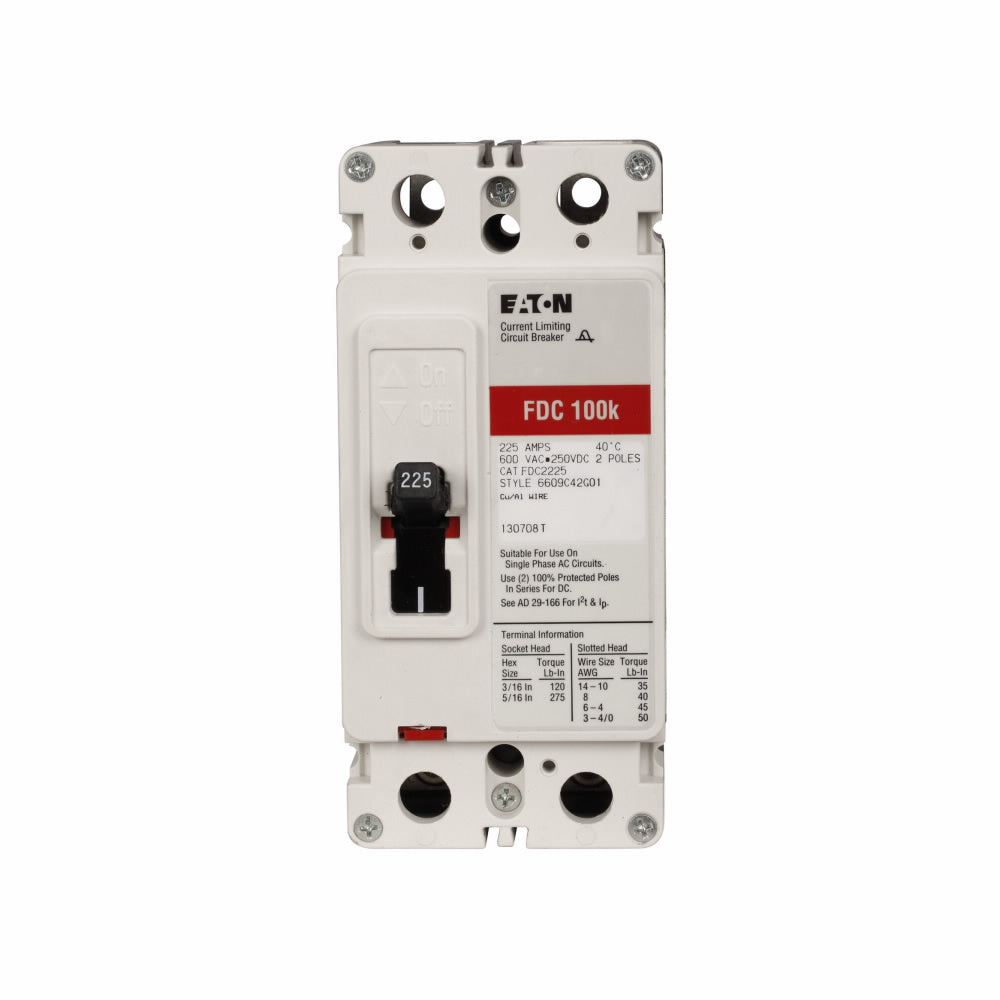

FDC2090L - Cutler Hammer 90A 600V 2-Pole Molded Case Circuit Breaker Series C Type FDC

FDC2090L

FDC2090L is a 2-pole molded case circuit breaker from Cutler Hammer's Series C Type FDC family, rated for 90 amps and 600 volts.

This circuit breaker features a thermal magnetic trip unit with line and load terminals, designed for feed-thru applications. It has a high interrupt rating suitable for industrial and commercial power distribution, providing reliable protection against overloads and short circuits. The breaker supports 600 VAC and 250 VDC operation with an interrupt rating of up to 200 kA at 240 VAC and 100 kA at 480 VAC.

• Amperage: 90A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 2
• Series/Frame: Series C, Type FDC
• Interrupt Rating: 200 kA at 240 VAC, 100 kA at 480 VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Feed-Thru
• Phase: Single Phase
• Current Limiting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FDC2090L
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FDC
• Voltage : 600
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679053461
• GTIN : 00786679053461
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 2
• Certification : UL Listed
