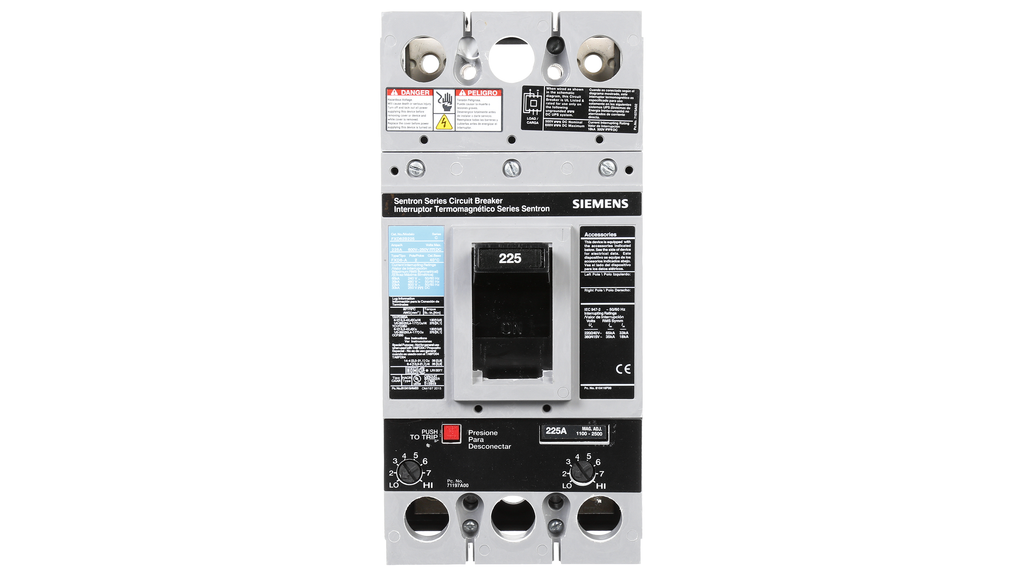

FD62B225L - Siemens FD Frame 225A 2-Pole 600V Molded Case Circuit Breaker

FD62B225L

FD62B225L is a Siemens FD Frame molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This 2-pole breaker features a 225A current rating and is rated for 600V AC, making it suitable for a wide range of applications requiring robust overcurrent protection. The FD62B225L breaker is part of the FD6 series and is equipped with interchangeable trip units for flexible configuration. It features line and load side lugs for easy wiring and is designed for surface mounting. The breaker is thermal magnetic and meets UL 489 and IEC 60947-2 standards for safety and performance. It has an interrupt rating of 22kA at 600V and 35kA at 480V, providing high fault current protection.

• Part Number: FD62B225L
• Manufacturer: Siemens
• Series/Frame: FD Frame
• Amperage: 225A
• Voltage: 600V AC
• Poles: 2
• Interrupt Rating: 22kA at 600V, 35kA at 480V
• Mounting Type: Surface Mount
• Trip Unit: Interchangeable, Thermal Magnetic
• Certifications: UL 489, IEC 60947-2
• Wire Range: #6—350 kcmil Cu, #4—350 kcmil Al
• Standards: UL 489, IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD62B225L
• Manufacturer : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : FD
• Voltage : 600
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : FD Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643005228
• GTIN : 00783643005228
• Country of Origin : Mexico
• Dimensions : 10.63 x 5.906 x 6.693 inch
• Weight : 8.62
