FD4100 - Eaton Molded Case Circuit Breaker 600V 100A 4-Pole F-Frame

FD4100

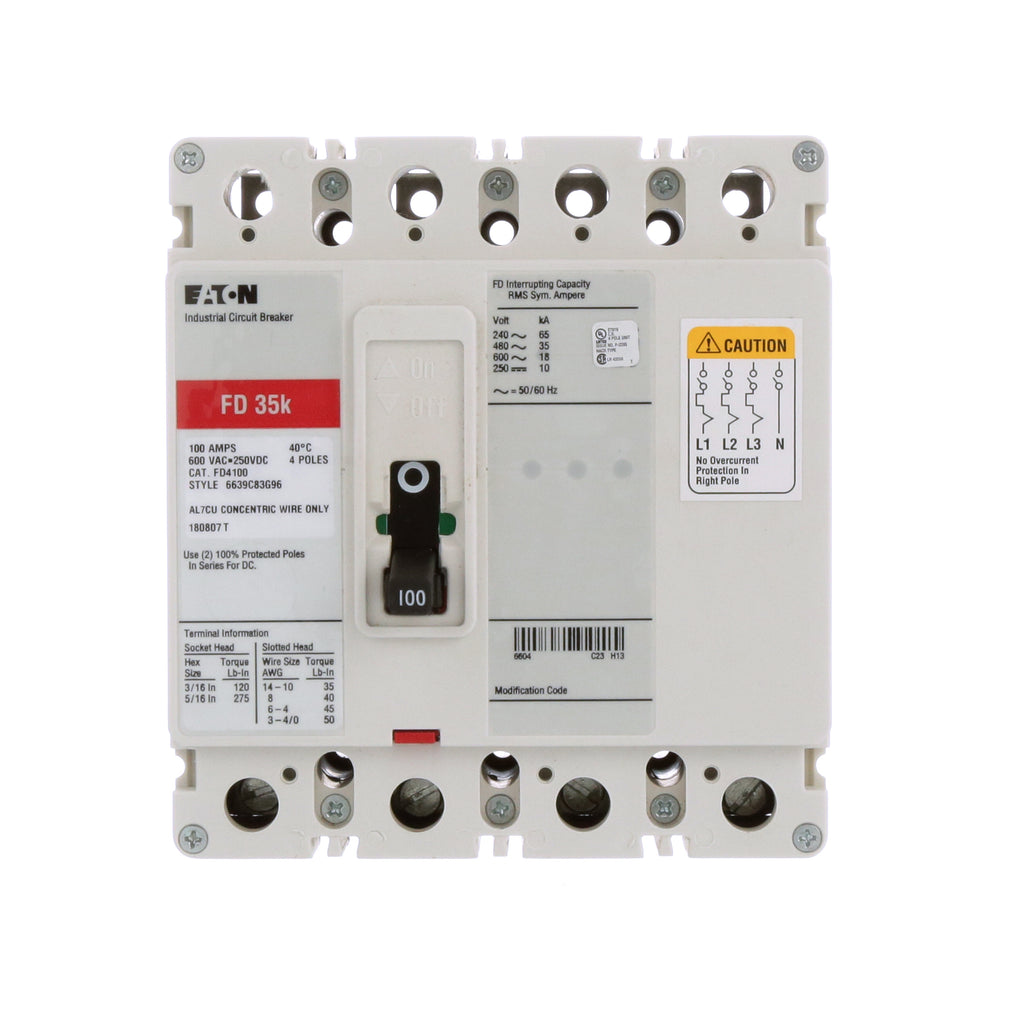

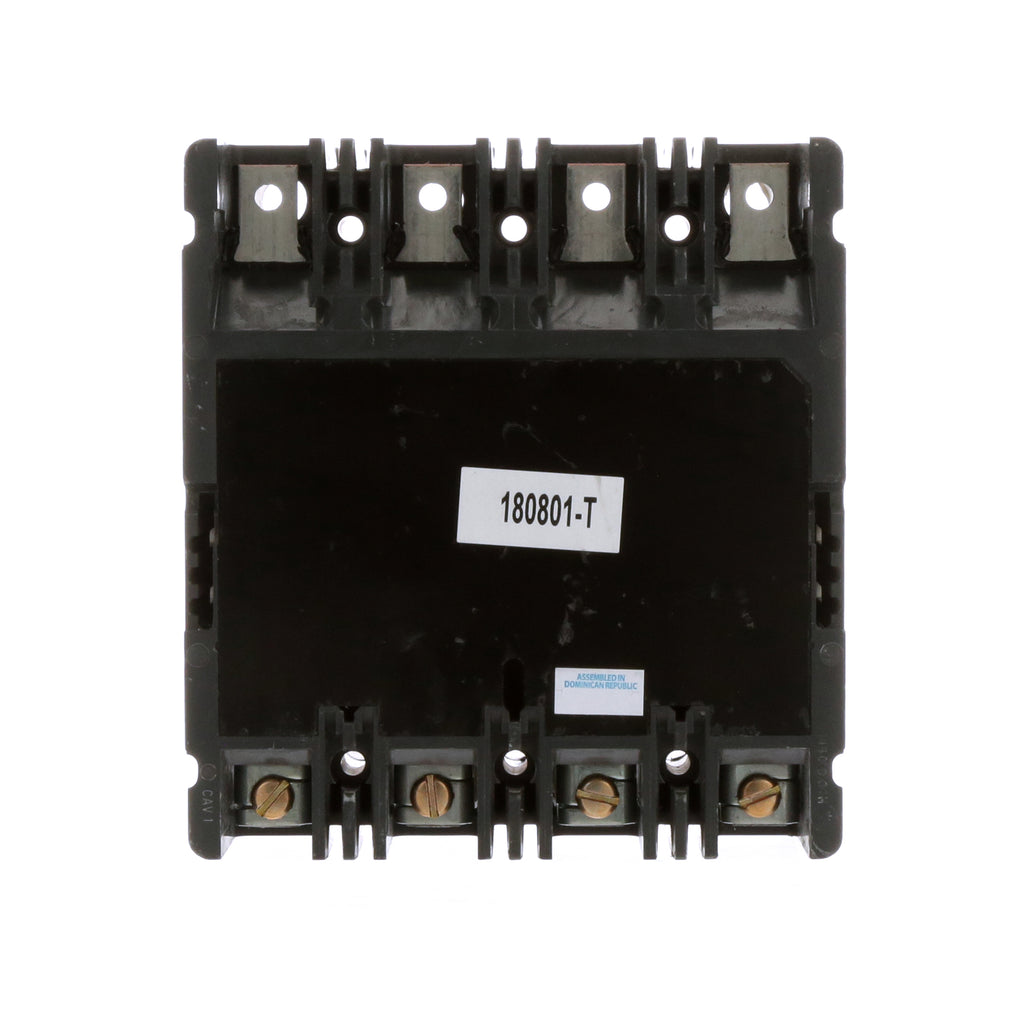

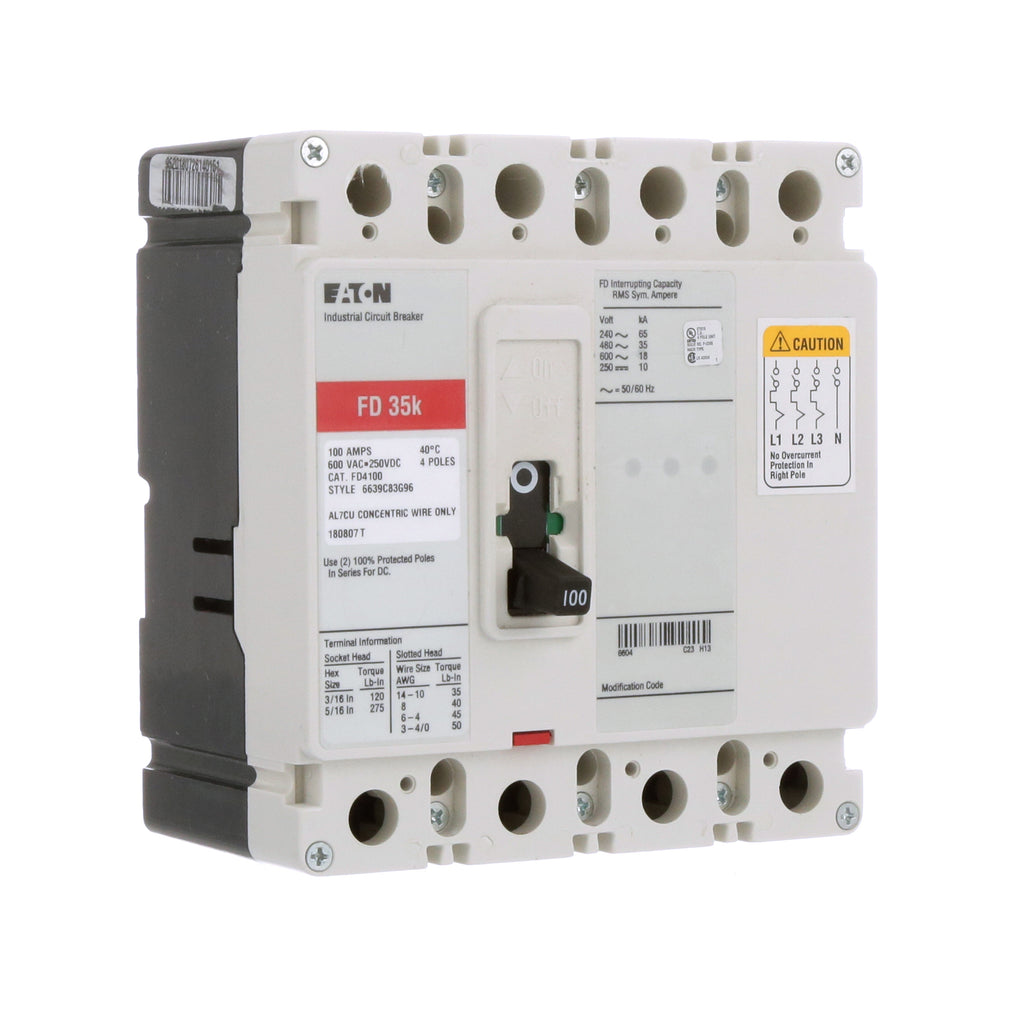

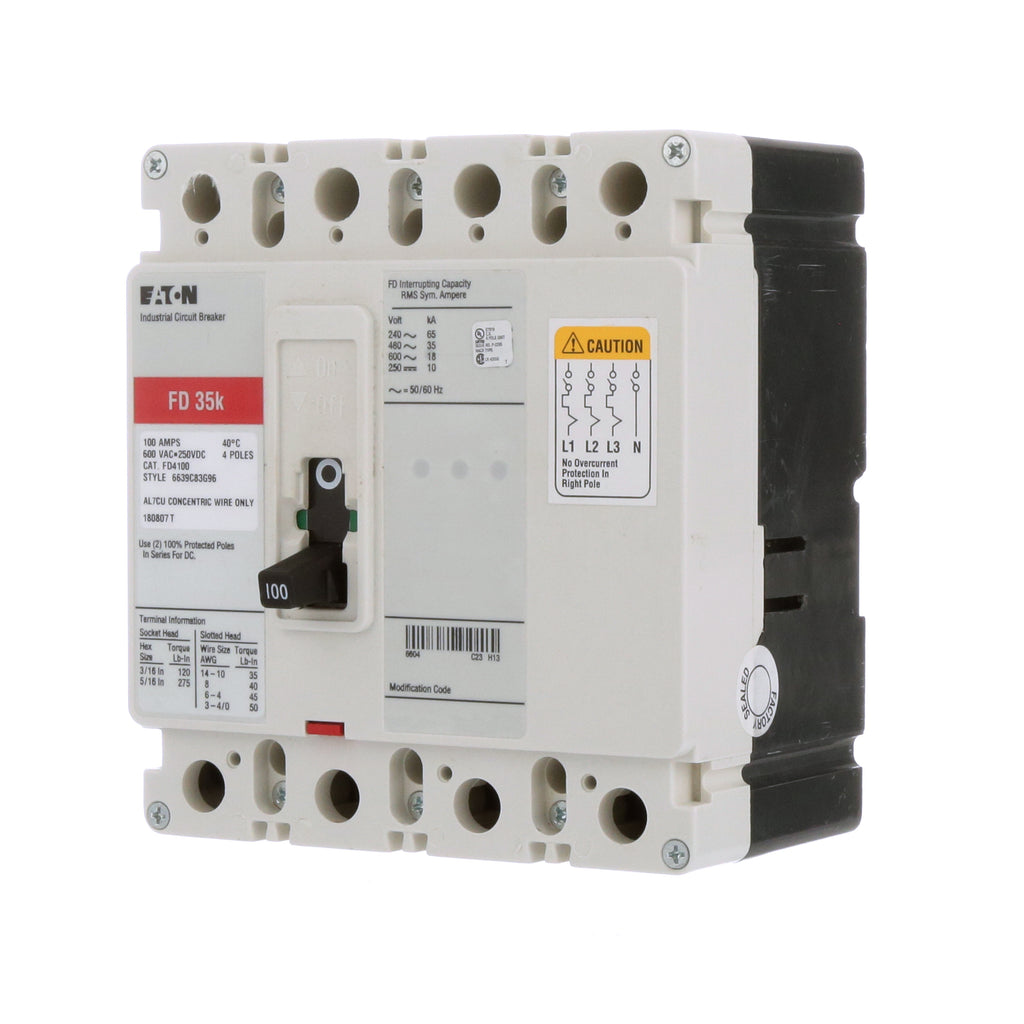

FD4100 is a four-pole, 600 Volt, 100 Amp molded case circuit breaker manufactured by Eaton (Cutler Hammer division) with fixed thermal and fixed magnetic trip protection. This F-frame, Series C breaker features patented contact design with high-speed blow-open action for superior performance and reliability in industrial power distribution applications. The FD4100 is designed for load-side mounting and operates at 50/60 Hz with a large domestic installed base ensuring widespread familiarity and acceptance throughout the United States.

• Amperage Rating: 100 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: Four Pole
• Frame Type: F-Frame
• Series: C Series
• Trip Type: Fixed Thermal, Fixed Magnetic
• Interrupt Rating: 65 kAIC at 240 VAC, 35 kAIC at 480 VAC
• Mounting: Load Side
• Frequency: 50/60 Hz
• Dimensions: 6 inches height, 3.38 inches length, 5.5 inches width
• Weight: 2.025 kg
• Country of Origin: US

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD4100
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 4
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679251102
• GTIN : 00786679251102
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 4.5
• Certification : UL Listed
