Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
FD3040V

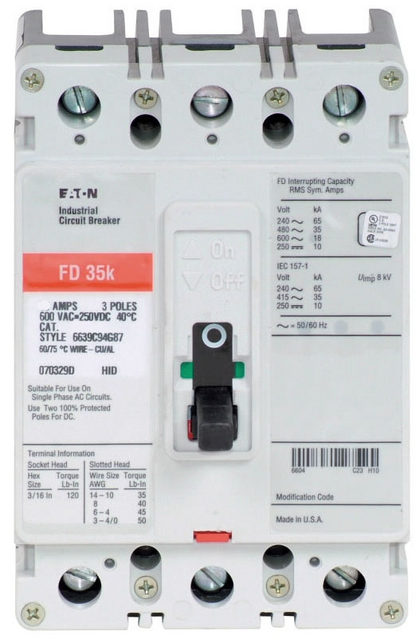

FD3040V is a 40 Amp, 3-pole molded case circuit breaker from Eaton's Series C F-frame lineup designed for panel mounting.
This circuit breaker features a thermal magnetic trip unit and is rated for 600 VAC at 50/60 Hz and 250 VDC. It offers interrupt ratings of 65kA at 240 VAC, 35kA at 480 VAC, and 18kA at 600 VAC, ensuring reliable protection for electrical circuits. The breaker is calibrated for 50 degrees Celsius operation and is suitable for various industrial and commercial applications requiring robust circuit protection.
- Amperage: 40 Amps
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3
- Mounting Type: Panel Mount
- Interrupt Rating: 65kA @ 240 VAC, 35kA @ 480 VAC, 18kA @ 600 VAC
- Series/Frame: Series C, F-Frame
- Trip Unit: Thermal Magnetic
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FD3040V
- Manufacturer : Eaton
- Brand : Westinghouse
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FD
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786679396704
- GTIN : 00786679396704
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
