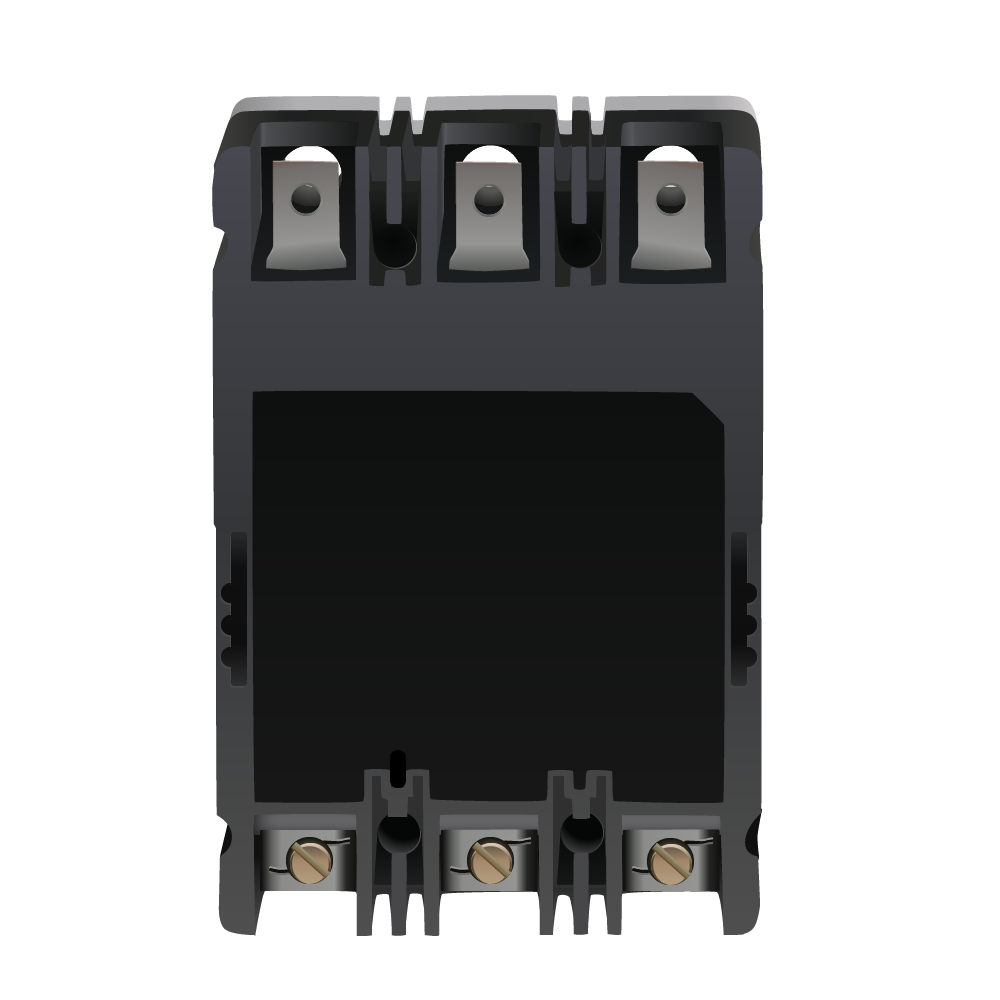

FD3035L - Cutler Hammer Eaton Westinghouse Series C 35A 600V 3P Molded Case Circuit Breaker, Complete, 35kA Interrupt, UL Listed

FD3035L

FD3035L is a complete, 3-pole molded case circuit breaker from Cutler Hammer, Eaton, and Westinghouse, designed for reliable power distribution and protection in commercial and industrial applications.

This Series C, F-frame breaker features a 35A amperage rating, 600V AC/250V DC voltage rating, and a standard interrupting capacity of 35kA at 480V AC. It is UL Listed for safety and compliance, and is supplied as a complete unit ready for installation.

Key Specifications
• Part Number: FD3035L
• Manufacturer: Cutler Hammer, Eaton, Westinghouse
• Amperage: 35A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Molded Case
• Interrupt Rating: 35kA @ 480V AC, 65kA @ 240V AC, 18kA @ 600V AC
• Series/Frame: Series C, F-frame
• Trip Unit: Standard (type not specified in sources)
• Certifications: UL Listed
• Operating Temperature: 40°C
• Type: FD
• Feed-thru design

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD3035L
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 600
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679451724
• GTIN : 00786679451724
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4
• Certification : UL Listed
