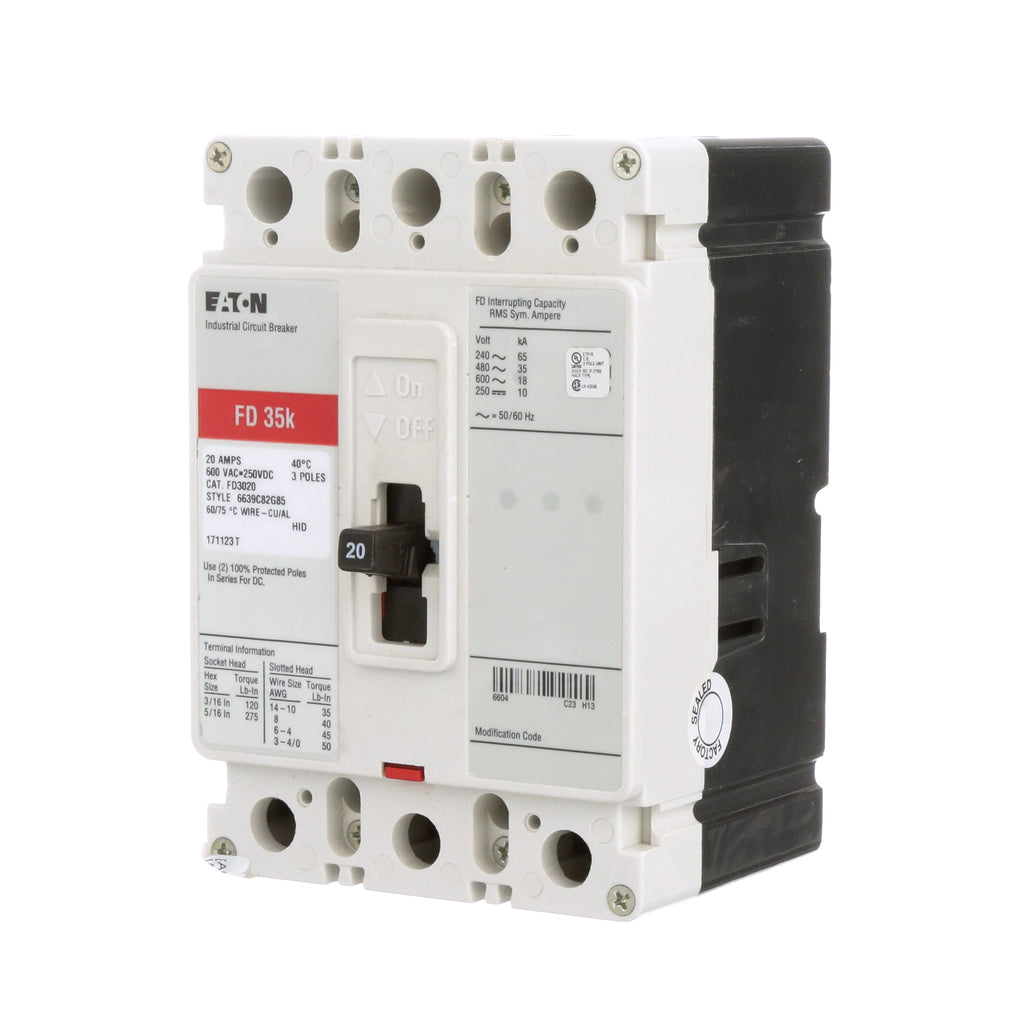

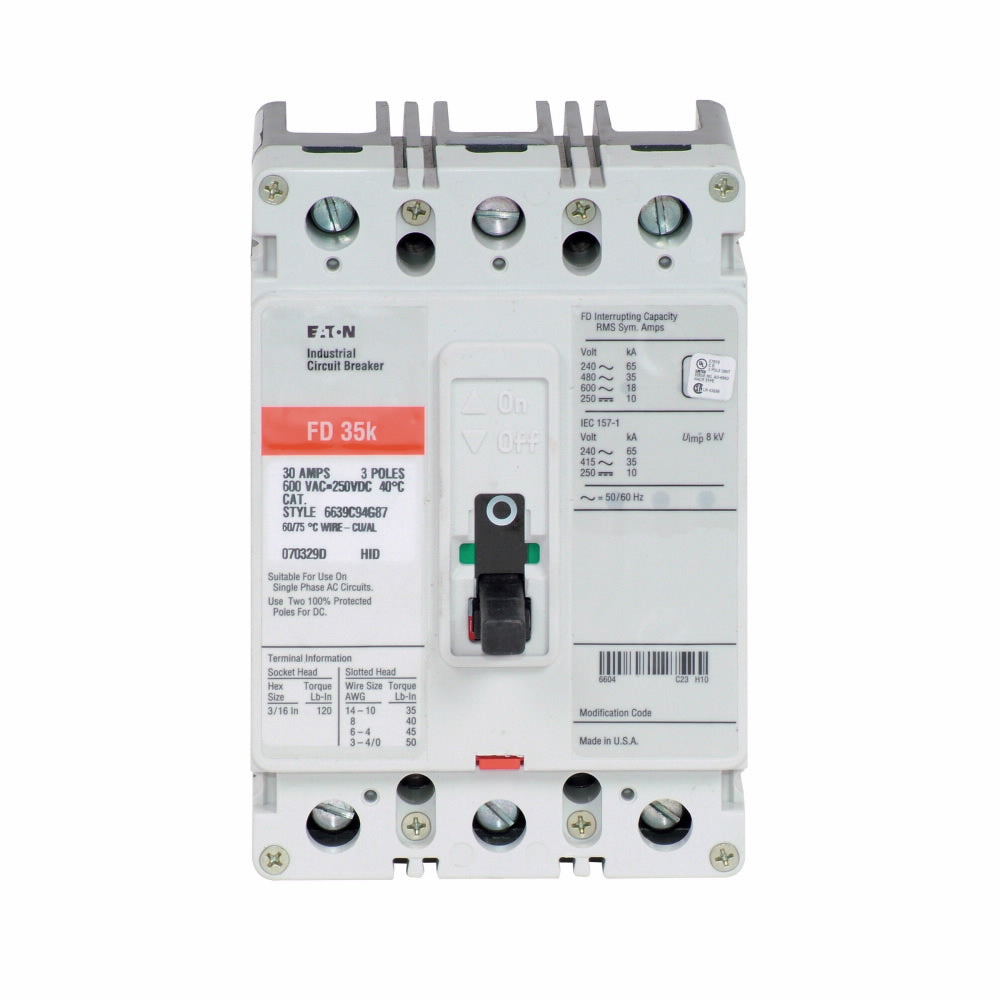

FD3020 - Cutler Hammer 20A 600VAC 3 Pole Series C Molded Case Circuit Breaker F Frame Thermal Magnetic

FD3020

FD3020 is a Cutler Hammer Series C molded case circuit breaker designed for industrial circuit protection.This 3 pole, 20 amp breaker features a thermal magnetic trip unit with fixed trip settings. It is rated for 600 VAC and 250 VDC operation, with an interrupting rating of 35kA at 480 VAC. The breaker is panel mount type with an F frame design, providing reliable overload and short circuit protection. It meets UL, CSA, and CE certifications.

Key Specifications
• Amperage: 20 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: Panel Mount
• Interrupt Rating: 35kA @ 480 VAC
• Series/Frame: Series C, F Frame
• Trip Unit: Thermal Magnetic, Fixed Trip
• Certifications: UL, CSA, CE
• Frequency: 50/60 Hz
• Dimensions: Approx. 6" H x 4.13" W x 3.38" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD3020
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Free Standing
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 786679305621
• GTIN : 00786679305621
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 4.5
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
