2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
FD1090L

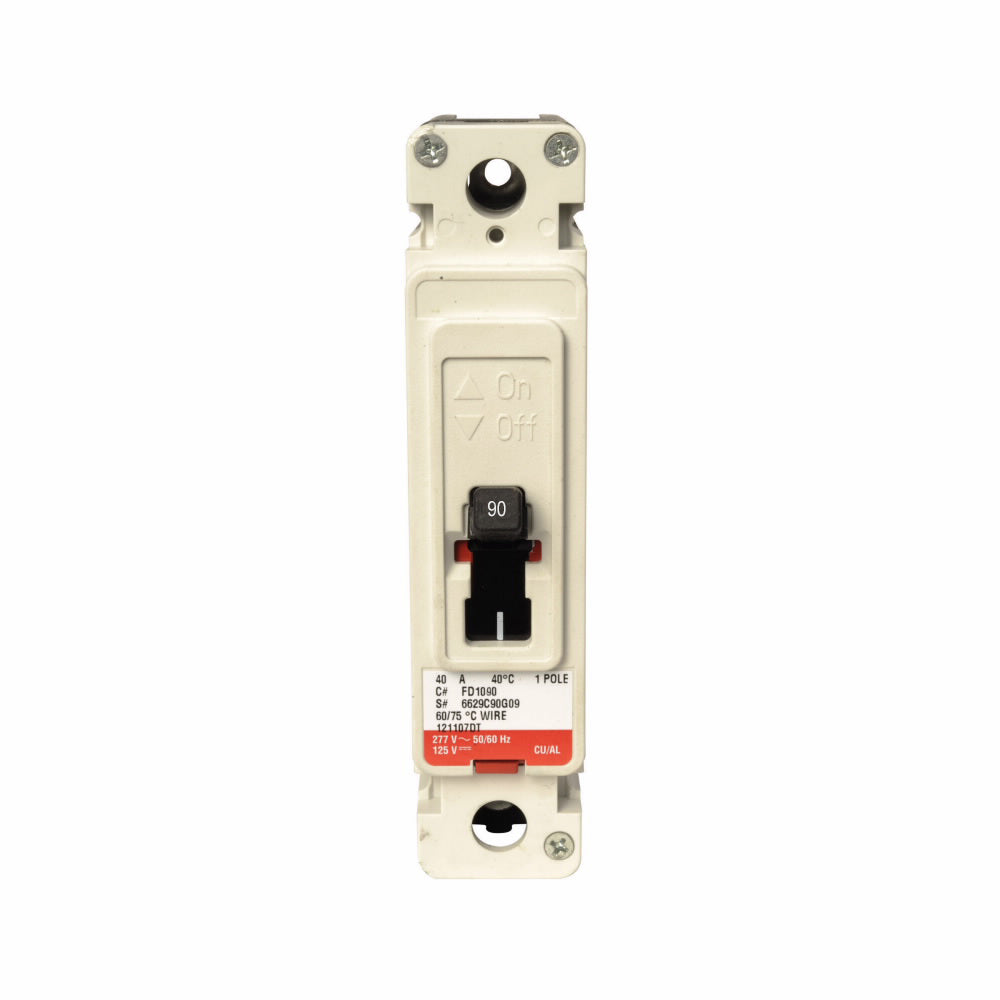

FD1090L is a 90 amp, single-pole molded case circuit breaker from Eaton's Series C F-frame lineup designed for reliable circuit protection.This Eaton FD1090L breaker features a fixed thermal and magnetic trip unit, supports line and load terminals, and is rated for 347 Vac and 125 Vdc operation. It has a 35 kA interrupt rating at 277 Vac and is UL listed for safety compliance.
- Amperage: 90 A
- Voltage Rating: 347 Vac, 125 Vdc
- Poles: 1
- Frame Type: F-Frame
- Series: C
- Trip Unit: Fixed Thermal Magnetic
- Interrupt Rating: 35 kA at 277 Vac
- Mounting Type: Complete breaker with line and load terminals
- Frequency: 50/60 Hz
- Certifications: UL Listed
Specifications
- Part Number: FD1090L
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FD
- Voltage : 277
- Amperage : 90
- Phase : 1
- Poles : 1
- AIC rating : 35kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679093283
- GTIN : 00786679093283
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 1.38 in (Length/Depth x Height x Width)
- Weight : 4.5
- Certification : UL Listed
