Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description

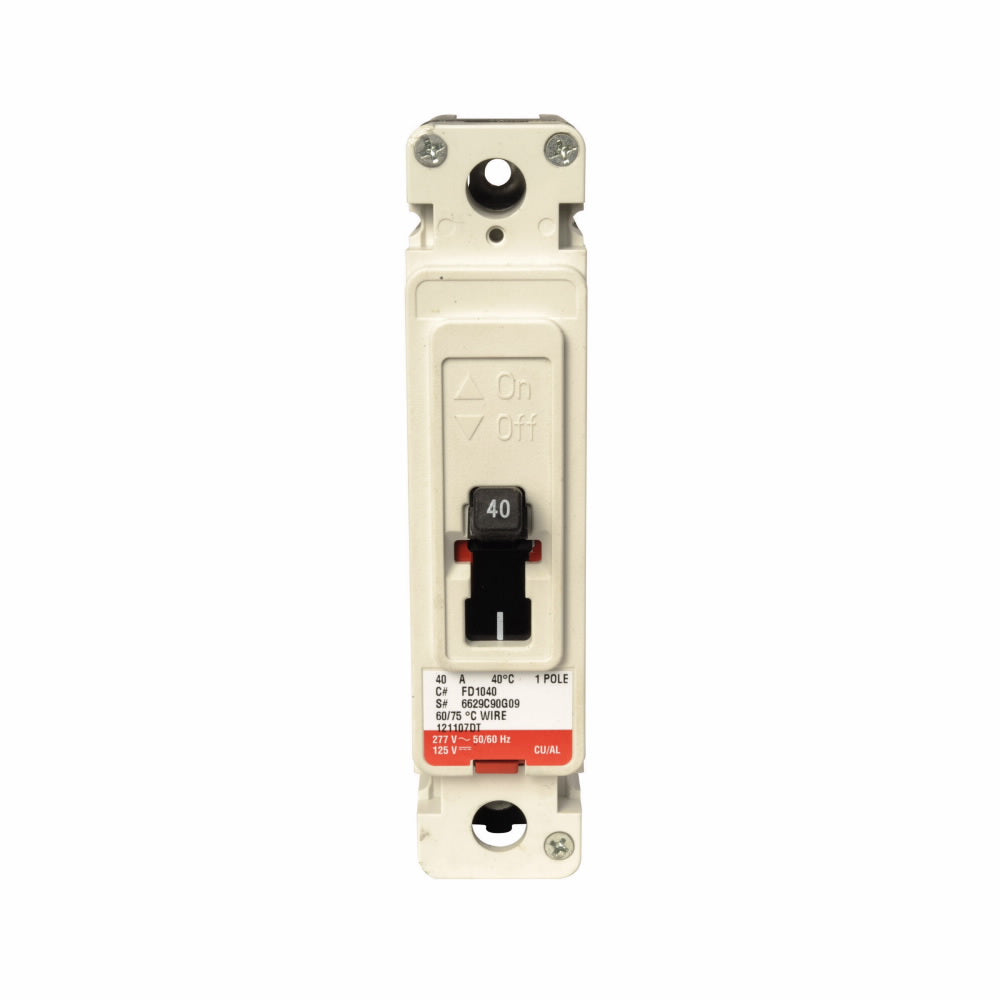

FD1040
FD1040 is a 40 Amp, 1 Pole molded case circuit breaker from Cutler Hammer designed for reliable circuit protection.This thermal magnetic circuit breaker features a 277 Volt AC and 125 Volt DC rating, with a surface mount type F-frame design from the Series C line. It provides robust interrupting capacity and is suitable for various industrial and commercial applications.
- Amperage: 40 Amps
- Voltage: 277 VAC / 125 VDC
- Poles: 1 Pole
- Mounting Type: Surface Mount
- Interrupt Rating: Thermal Magnetic
- Series/Frame: Series C, F-Frame
- Trip Unit: Thermal Magnetic
- Certifications: Industry standard compliant
Specifications
- Part Number: FD1040
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FD
- Voltage : 277
- Amperage : 40
- Phase : 1
- Poles : 1
- AIC rating : 35kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679312148
- GTIN : 00786679312148
- Country of Origin : Dominican Republic
- Dimensions : 3.38 in x 6 in x 1.38 in (Length/Depth x Height x Width)
- Weight : 2
- Certification : UL Listed
