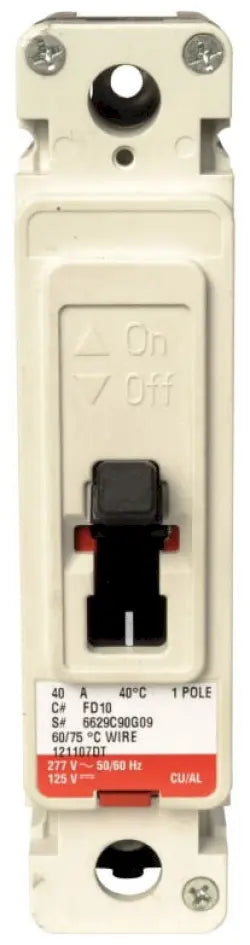

FD1030 - Cutler Hammer 30A 277V 1 Pole Series C F-Frame Molded Case Circuit Breaker, Bolt-On, 35kA Interrupt Rating, UL & CSA Listed

FD1030

FD1030 is a Cutler Hammer single-pole molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This Series C, F-frame breaker features a 30A current rating, 277V voltage rating, and a high 35kA interrupt rating at 277V. It uses a fixed thermal magnetic trip unit for consistent performance and is certified for safety and reliability.

Key Specifications
• Part Number: FD1030
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 30A
• Voltage: 277V AC (347V AC max), 125V DC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 35kA @ 277V AC
• Series/Frame: Series C, F-Frame
• Trip Unit: Fixed Thermal Magnetic
• Certifications: UL Listed, CSA Listed
• Phase: 1
• Terminal: Load side only

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD1030
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 277
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 35kA@277V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : A

Product Data

• UPC : 786679312131
• GTIN : 00786679312131
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 1.38 in (Length/Depth x Height x Width)
• Weight : 1.65
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
