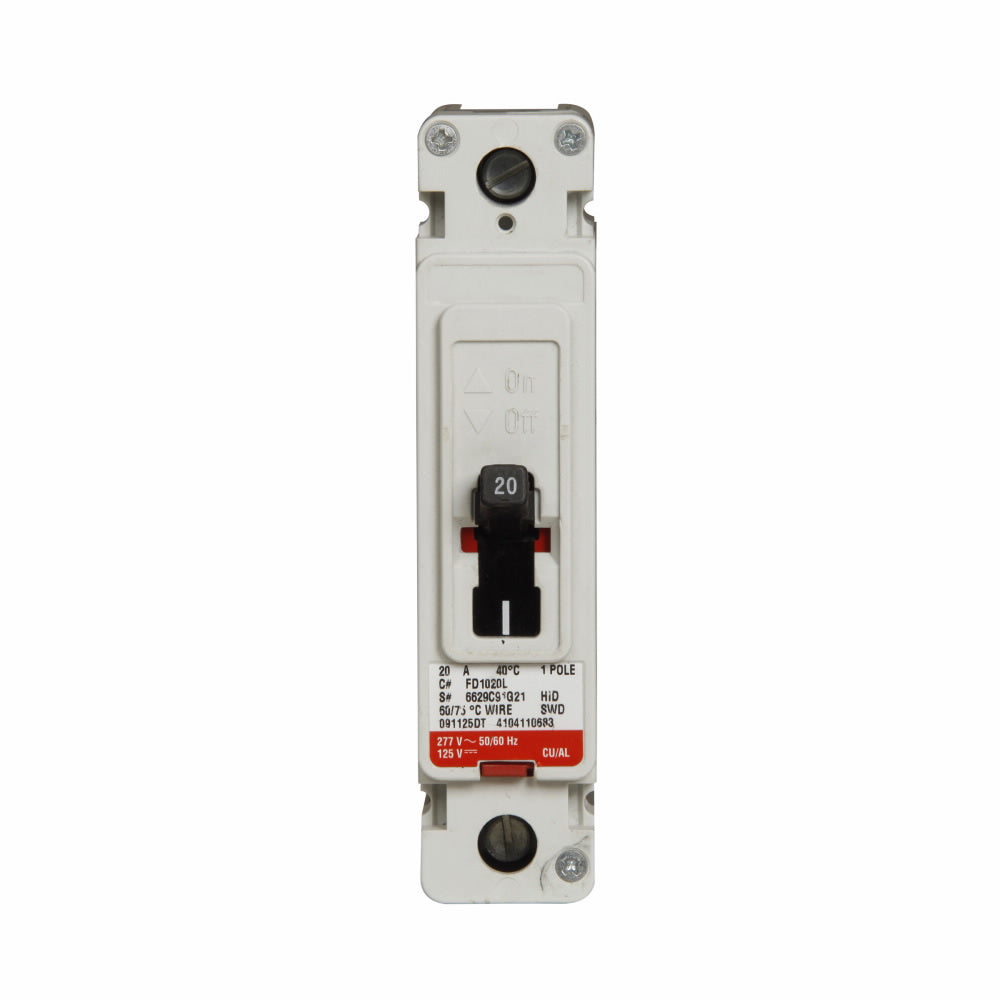

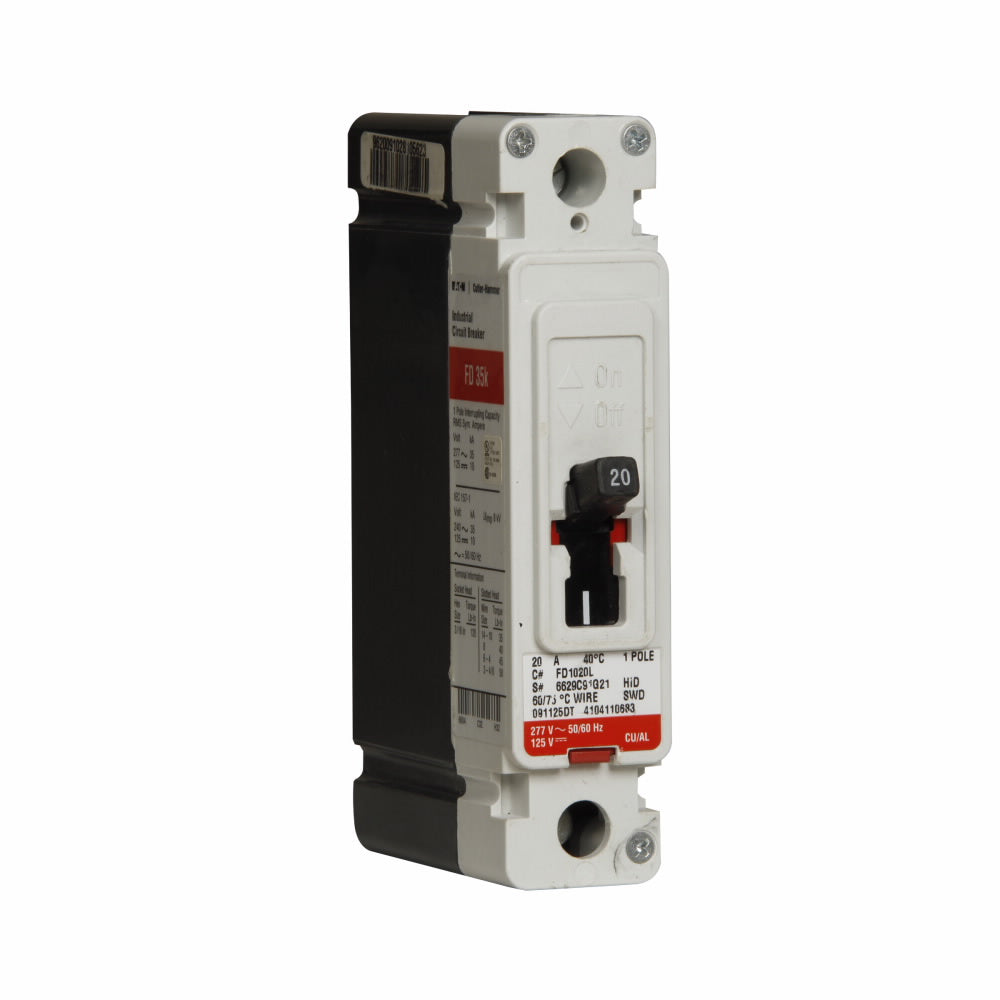

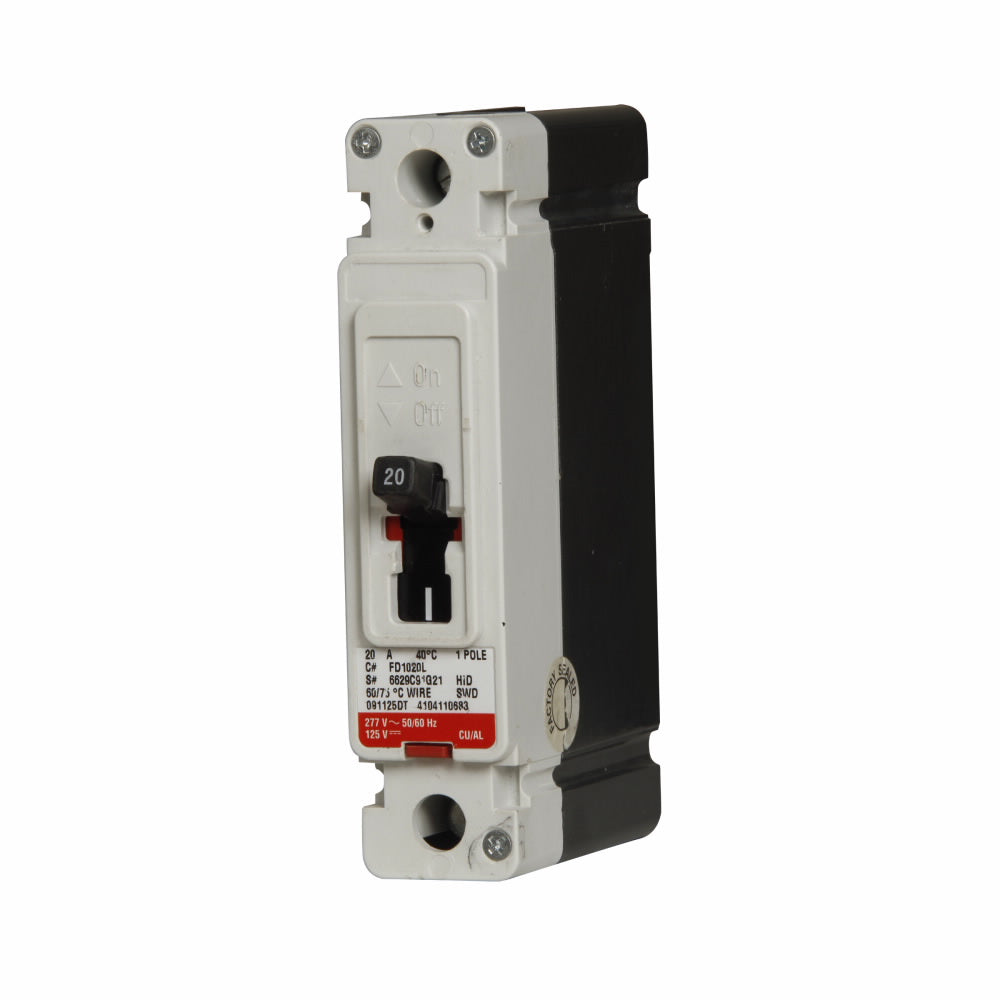

FD1020 - Cutler Hammer 20 Amp 1-Pole 277V FD Frame Molded Case Circuit Breaker

FD1020

FD1020 is a Cutler Hammer 20 Amp, 1-pole molded case circuit breaker designed for 277 volts AC applications.This FD frame breaker features thermal magnetic protection with long-time and instantaneous trip functions, a 35kA interrupt rating at 277V, and bolt-on mounting. It supports line and load side lug connections and is UL listed and CSA certified.

• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 20 Amps
• Voltage: 277 VAC, 125 VDC
• Poles: 1
• Frame Type: FD
• Interrupt Rating: 35kA at 277V
• Trip Unit: Thermal Magnetic, Long-Time and Instantaneous
• Mounting Type: Bolt-On
• Connection: Line and Load Lug
• Standards: UL Listed, CSA Certified
• Dimensions: 6" x 1.38" x 3.38"
• Weight: 1.6 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FD1020
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : FD
• Voltage : 277
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 35kA@277V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 225A/F
• Temp Rating : Minimum Operating Temp -4 Degrees F Max. Operating Temp.158 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : A

Product Data

• UPC : 786679312117
• GTIN : 00786679312117
• Country of Origin : Dominican Republic
• Dimensions : 3.38 in x 6 in x 1.38 in (Length/Depth x Height x Width)
• Weight : 1.6
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : UL Listed
