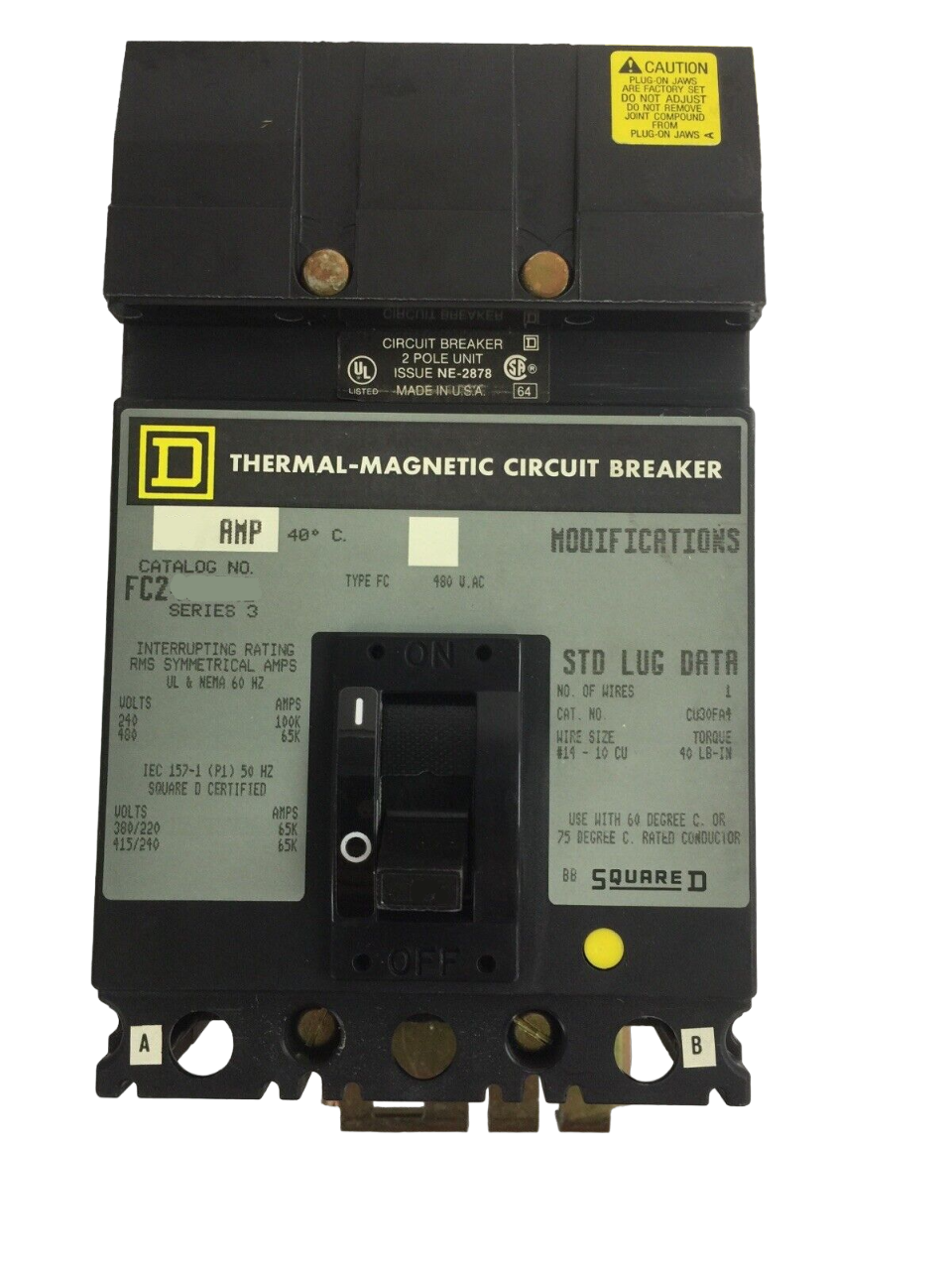

FC24030BC - Square D 30 Amp 480 VAC 2 Pole Molded Case Circuit Breaker I-Line FC Series

FC24030BC

FC24030BC is a Square D I-Line 2 Pole molded case circuit breaker rated for 30 Amps and 480 VAC, designed for reliable circuit protection in industrial applications. This breaker fits a 3 Pole frame and is part of the FC Series.This circuit breaker features a thermal magnetic trip unit and offers an interrupting rating of 100,000 Amps at 240 VAC and 65,000 Amps at 480 VAC. It includes a set of lugs for secure connections and is engineered for durability and safety compliance.

• Amperage: 30 Amps
• Voltage Rating: 480 VAC
• Poles: 2 (in a 3 Pole frame)
• Series/Frame: FC Series, I-Line style
• Interrupt Rating: 100,000 A @ 240 VAC, 65,000 A @ 480 VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line Frame
• Breaker Weight: Approximately 3.7 lbs
• Dimensions (D x W x H): 5" x 4.5" x 7.5" (plus handle and bracket allowances)
• Certifications: Meets industry standards for molded case circuit breakers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FC24030BC
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FC
• Voltage : 480
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 6
