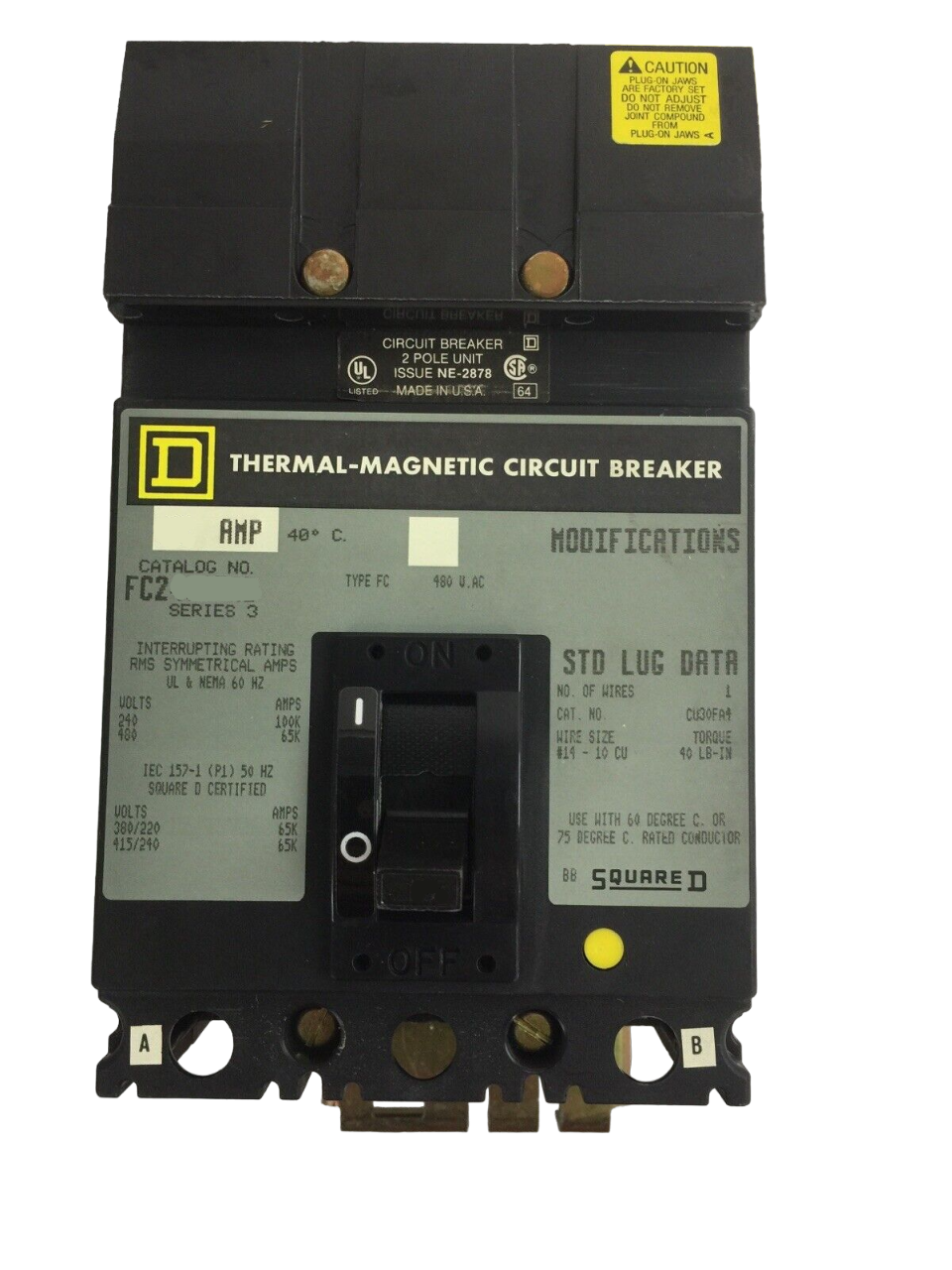

FC24025AB - Square D 25 Amp 2 Pole 480VAC Molded Case Circuit Breaker

FC24025AB

FC24025AB is a Square D molded case circuit breaker designed for industrial power distribution applications requiring reliable thermal-magnetic protection.

This 2-pole circuit breaker features a fixed thermal and magnetic trip unit (FC type) rated for 25 amperes at 480VAC. The unit is constructed as an I-Line style plug-in breaker with F-frame dimensions, suitable for integration into standard panelboards and distribution equipment. The breaker provides protection across multiple voltage standards including 240/480VAC at 50/60 Hz (UL/CSA/NOM), 480VAC STAR/277VAC at 50/60 Hz (UL/CSA/NOM), 240/415VAC at 50/60 Hz (IEC), and 250VDC applications.

• Amperage Rating: 25 Amps
• Poles: 2
• Voltage Rating: 480VAC
• Trip Unit Type: FC (Fixed Thermal-Magnetic)
• Frame Size: F Frame
• Connection Style: I-Line Plug-In
• Interrupt Rating: 100kAic at 240VAC, 65kAic at 480VAC
• Manufacturer: Square D / Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FC24025AB
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FC
• Voltage : 480
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 6
