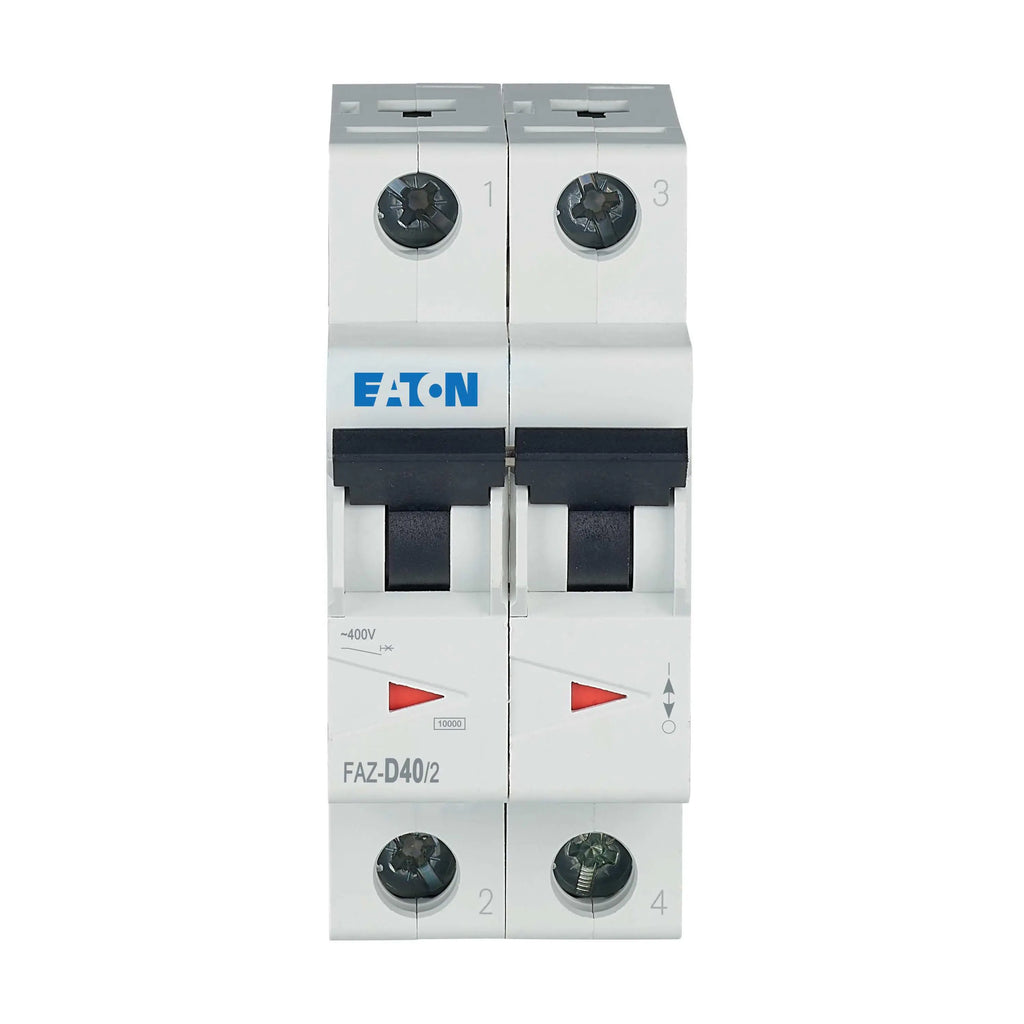

FAZ-D40/2-NA - Eaton 40A 2-Pole Miniature Circuit Breaker, D Curve, 240VAC/48VDC, 10kA Interrupt, 35mm DIN Rail Mount, UL 489 Listed

FAZ-D40/2-NA

FAZ-D40/2-NA is a current-limiting, thermal magnetic miniature circuit breaker designed for reliable protection in demanding electrical applications.

This Eaton 2-pole breaker features a D trip curve for high inrush applications, 40A current rating, and supports both AC and DC voltages. It is UL 489 listed for branch and feeder protection, offers a 10kA interrupting rating at 240VAC, and mounts on standard 35mm DIN rail for easy installation.

Key Specifications
• Amperage: 40A
• Voltage: 240VAC, 48VDC (also rated 415VAC per IEC/EN 60947-2)
• Poles: 2
• Mounting Type: 35mm DIN rail
• Interrupt Rating: 10kA @ 240VAC (14kAIC also listed)
• Series/Frame: FAZ-NA
• Trip Unit: Thermal magnetic, D curve (for high inrush)
• Certifications: UL 489 listed, CSA C22.2 No. 5, IEC 60947-2, CE, RoHS
• HACR Rated: Yes
• Reverse Feed Capable: Yes
• Application: Feeder and branch circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D40/2-NA
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ-NA
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Din Rail
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 786680133589
• GTIN : 04015081020720
• Country of Origin : Spain
• Dimensions : 1.5 in x 4.25 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.5
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
• Wire Size : 18 to 6 AWG, 18 to 10 AWG
