Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
FAZ-D25/3-RT

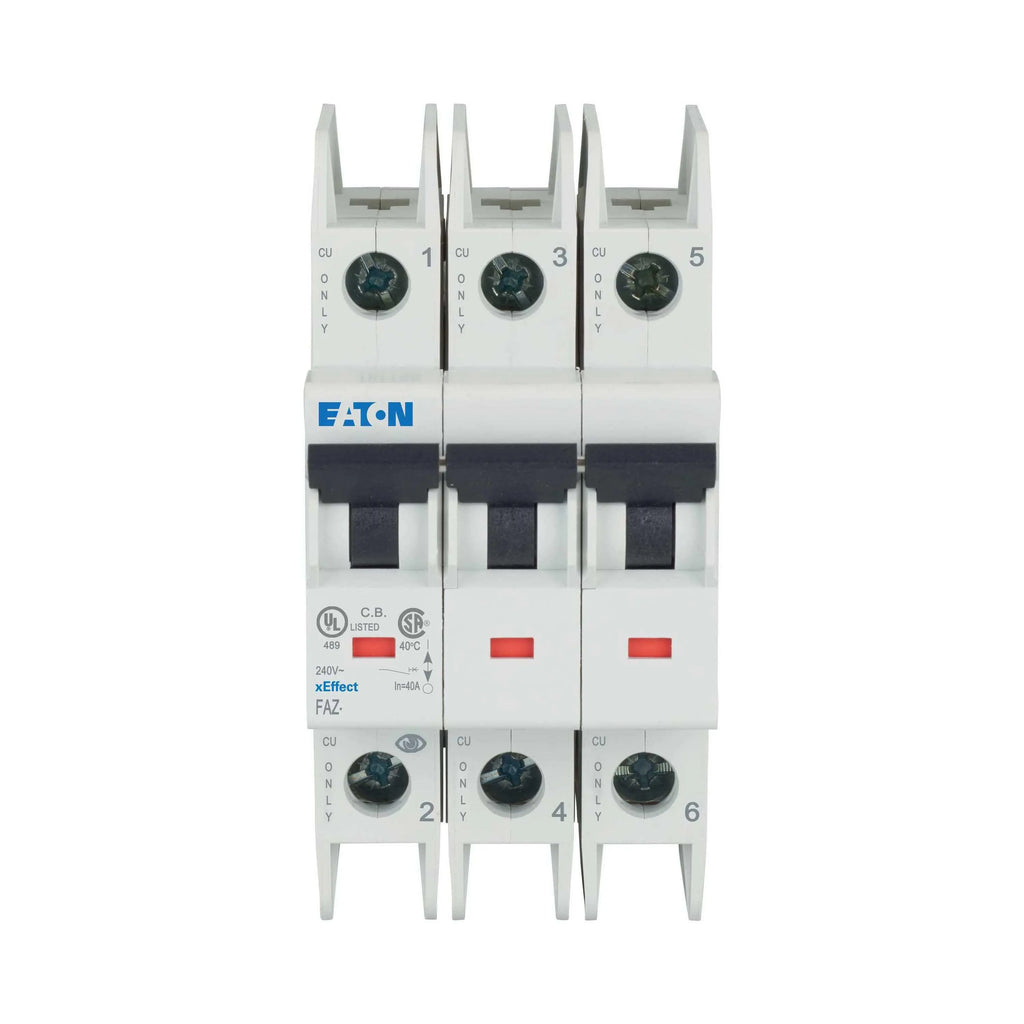

FAZ-D25/3-RT is a 3 pole, 25 amp miniature circuit breaker from Eaton's FAZ-RT series designed for 277/480 VAC applications.This industrial-grade circuit breaker features a D-curve trip characteristic suitable for high inrush current environments, with a 10-15 kA interrupt rating. It includes ring tongue terminals for secure connections and complies with UL 489 standards. The breaker is intended for supplementary protection in power distribution systems.
- Amperage: 25 A
- Voltage Rating: 277/480 VAC
- Poles: 3
- Trip Curve: D-Curve
- Interrupt Rating: 10-15 kA
- Mounting Type: DIN Rail
- Terminal Type: Ring Tongue
- Series/Frame: FAZ-RT
- Certifications: UL 489
- Frequency: 50-60 Hz
Specifications
- Part Number: FAZ-D25/3-RT
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAZ Series
- Type : FAZ-RT
- Voltage : 480
- Amperage : 25
- Phase : 3
- Poles : 3
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 401508102188
- GTIN : 04015081021888
- Dimensions : 2 in x 4.25 in x 2.25 in (Length/Depth x Height x Width)
- Weight : 1
