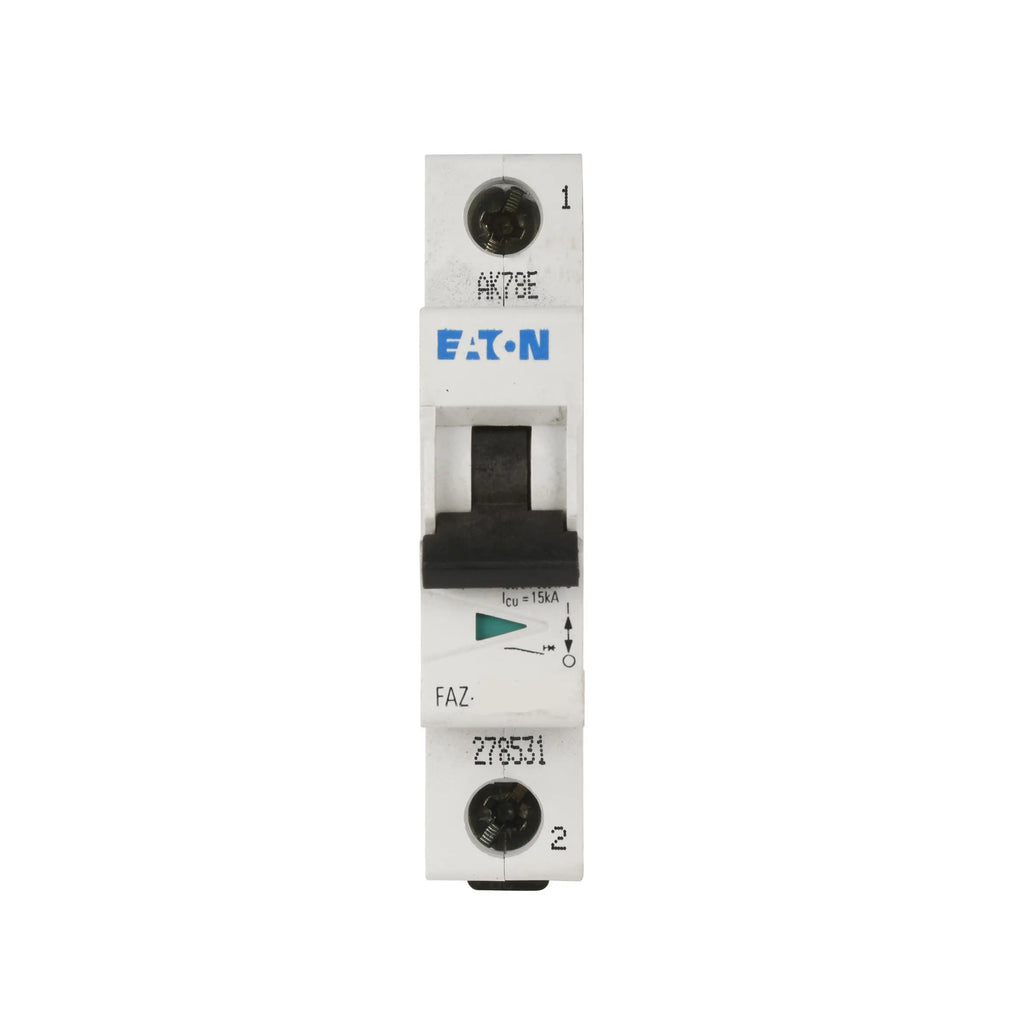

FAZ-D25/1-NA-SP - Eaton 25A 277/480VAC 1-Pole Thermal Magnetic Circuit Breaker DIN Rail Mount

FAZ-D25/1-NA-SP

FAZ-D25/1-NA-SP is a 25 Amp, 1-pole thermal magnetic circuit breaker from Eaton designed for branch circuit protection with DIN rail mounting.This Eaton FAZ series circuit breaker features a 25 Amp current rating, 277/480 VAC and 48 VDC voltage ratings, and a D curve trip characteristic suitable for high inrush currents. It has a 10 kA interrupting rating at 277 VAC and mounts on a standard 35 mm DIN rail. The breaker is UL 489 certified and uses screw terminal connections, making it ideal for industrial control and motor control applications.

• Amperage: 25 Amps
• Voltage Rating: 277/480 VAC, 48 VDC
• Number of Poles: 1
• Trip Type: Thermal Magnetic, D Curve
• Interrupt Rating: 10 kA @ 277 VAC
• Mounting Type: 35 mm DIN Rail
• Terminal Connection: Screw Terminals
• Series/Frame: FAZ
• Certifications: UL 489
• Frame Size: 40A
• Dimensions: Approx. 3" Length x 0.71" Width x 1" Depth

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D25/1-NA-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 10kA@480/277V
• Connection : Din Rail
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508163674
• GTIN : 04015081636747
• Country of Origin : Spain
• Dimensions : 1 in x 4.25 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.25
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
