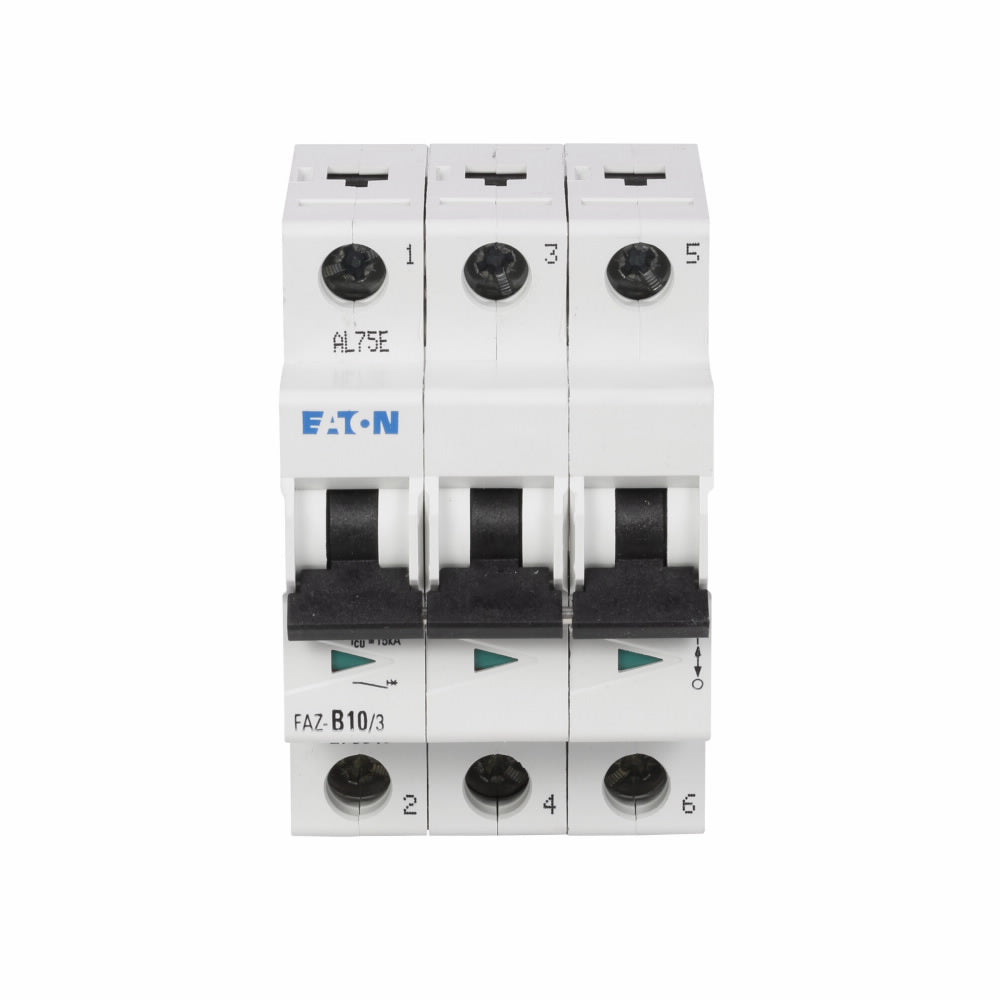

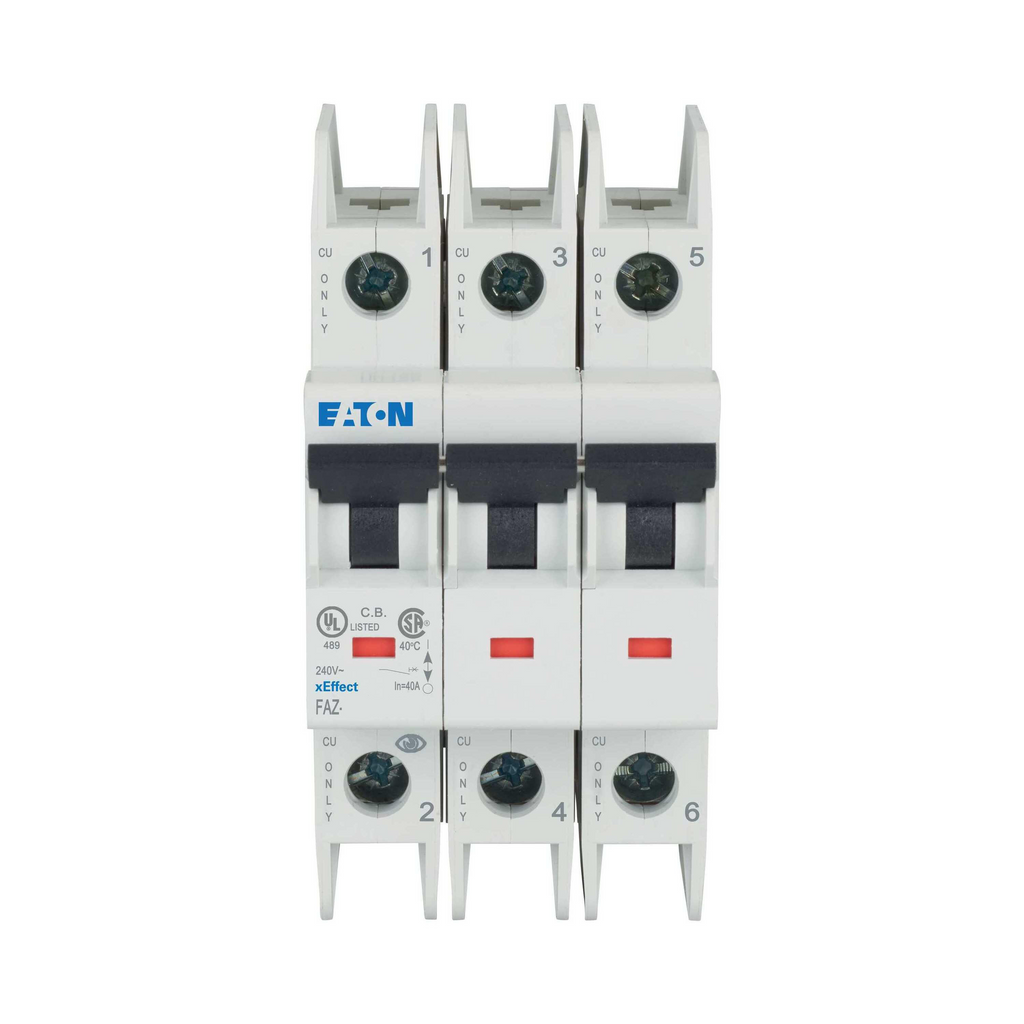

FAZ-D20/3-NA - Eaton 20A 3-Pole 277/480VAC Thermal Magnetic Circuit Breaker DIN Rail Mount

FAZ-D20/3-NA

FAZ-D20/3-NA is a 3-pole, 20 amp thermal magnetic circuit breaker from Eaton designed for branch circuit protection.This Eaton FAZ series circuit breaker features a 277/480VAC and 48/96VDC voltage rating, 14kA interrupting capacity, and D-curve (10-20X/n) trip characteristics suitable for high inrush currents. It mounts on a 35mm DIN rail and includes long time and instantaneous trip functions. UL, CSA, IEC, CE, and VDE certifications ensure compliance with industrial standards.

Key Specifications
• Amperage: 20 A
• Voltage: 277/480VAC, 48/96VDC
• Poles: 3
• Mounting Type: DIN Rail
• Interrupt Rating: 14kAIC @ 480Y/277 VAC
• Series/Frame: FAZ
• Trip Unit: Thermal Magnetic, D-Curve (10-20X/n)
• Approvals: UL 489, CSA, IEC, CE, VDE
• Terminal Connection: Line and Load
• Wire Gauge Range: 18 to 6 AWG
• Operating Temperature: -4 to 140°F
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D20/3-NA
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ-NA
• Voltage : 5
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 14kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508102147
• GTIN : 04015081021475
• Country of Origin : Spain
• Dimensions : 2 in x 4.25 in x 3 in (Length/Depth x Height x Width)
• Weight : 1
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
• Wire Size : 18 to 6 AWG, 18 to 10 AWG
