FAZ-D16/1-SP - Eaton 16A 1-Pole Miniature Circuit Breaker D Curve 277VAC/48VDC Thermal Magnetic DIN Rail Mount

Save $115.10
SKU: FAZ-D16/1-SP-New
Condition: New
Price:
$41.95 $157.05
Stock:
Low inventory, please call for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

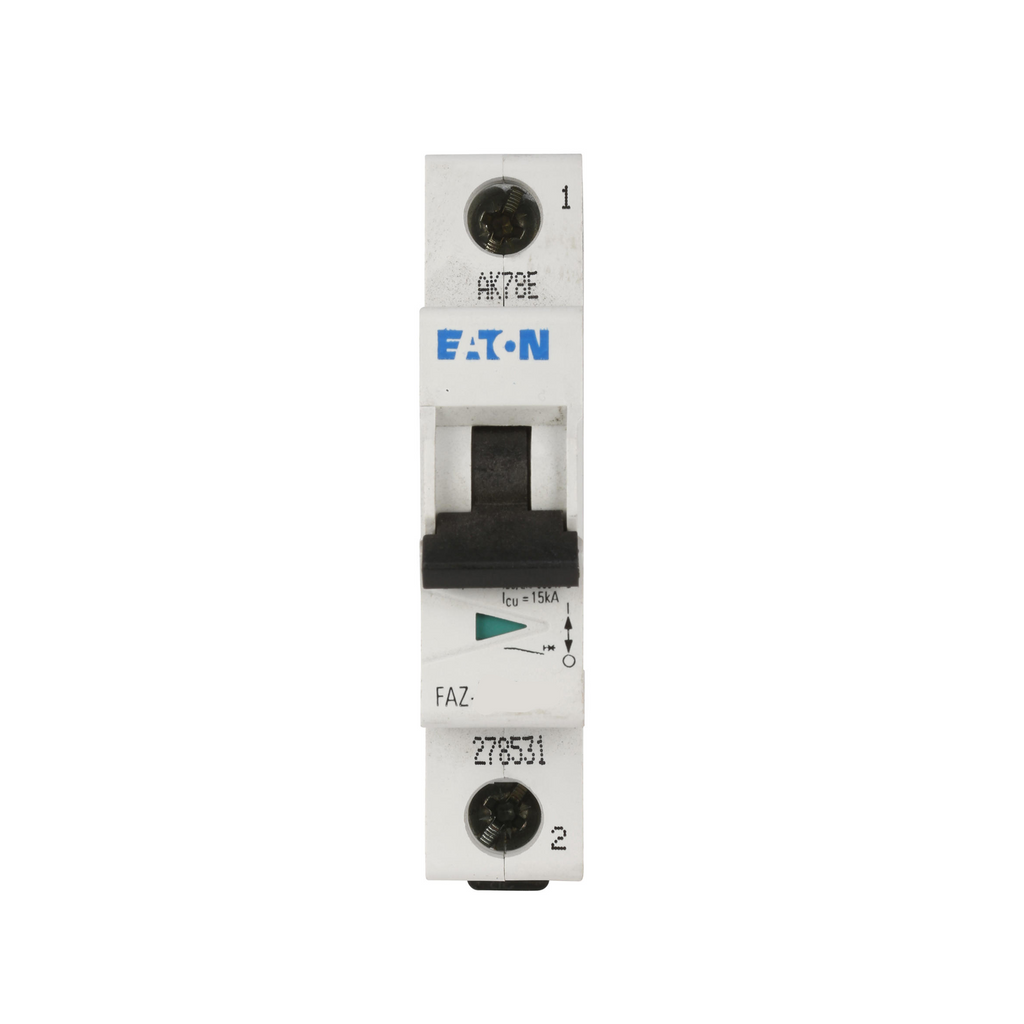

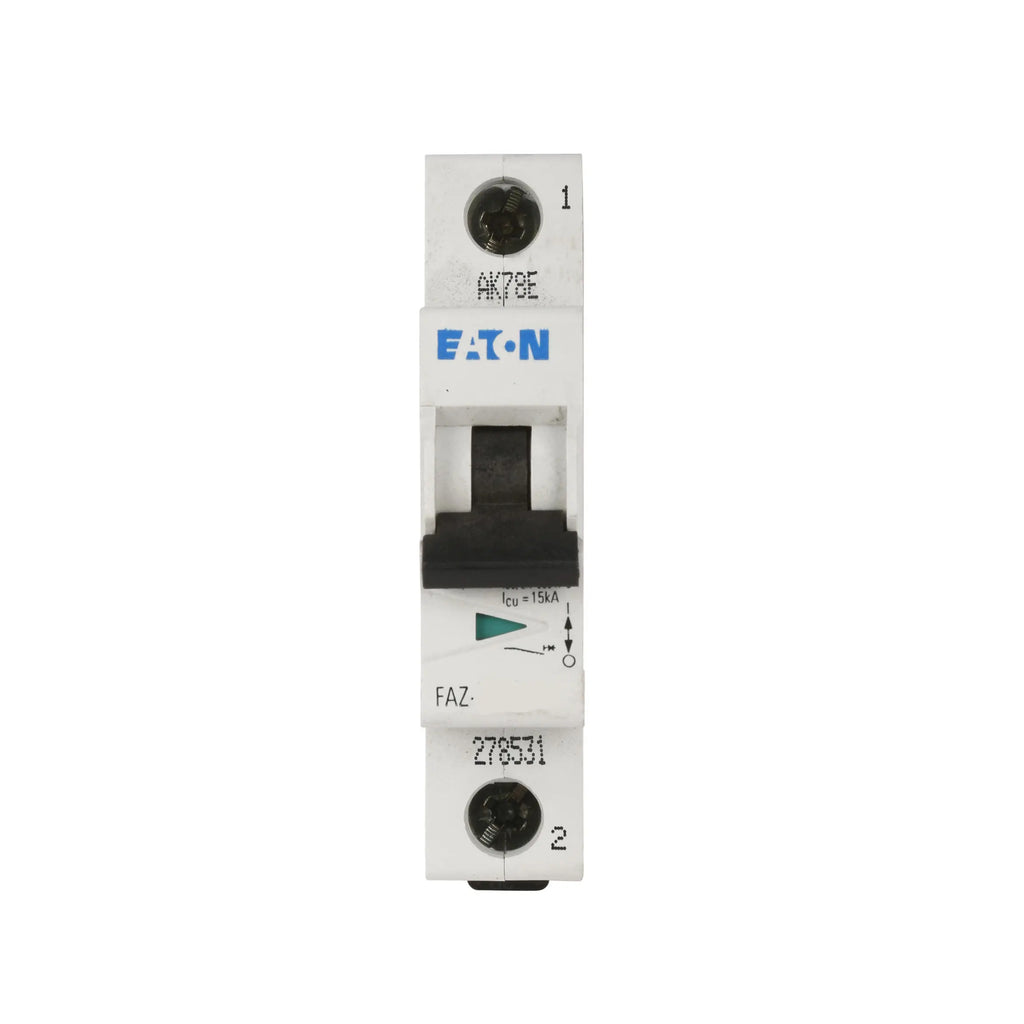

FAZ-D16/1-SP - Eaton Moeller Feed-Thru 16 Amp 1 Pole Circuit Breaker - Essential Electric Supply
FAZ-D16/1-SP - Eaton Moeller Feed-Thru 16 Amp 1 Pole Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
FAZ-D16/1-SP - Eaton Moeller Feed-Thru 16 Amp 1 Pole Circuit Breaker - Essential Electric Supply
FAZ-D16/1-SP - Eaton Moeller Feed-Thru 16 Amp 1 Pole Circuit Breaker - Essential Electric Supply

Description

FAZ-D16/1-SP


FAZ-D16/1-SP is a single-pole miniature circuit breaker from Eaton, designed for reliable protection in industrial and commercial applications. This breaker features a D curve thermal magnetic trip unit, ideal for handling high inrush currents commonly found in motor and transformer circuits. It is current-limiting and UL 1077 listed for supplementary protection. Engineered for easy installation, the FAZ-D16/1-SP mounts directly to a 35mm DIN rail and offers a compact design for space-constrained panels. The breaker provides robust protection with a 16A amperage rating, 277VAC/48VDC voltage rating, and a 14kA interrupting rating at 277VAC. It is reverse feed capable and HACR rated for use in heating, air conditioning, and refrigeration circuits.
  • Part Number: FAZ-D16/1-SP
  • Manufacturer: Eaton
  • Amperage Rating: 16A
  • Voltage Rating: 277VAC/48VDC
  • Number of Poles: 1
  • Mounting Type: 35mm DIN rail
  • Interrupting Rating: 14kA @ 277VAC
  • Series/Frame: FAZ
  • Trip Unit: D curve thermal magnetic
  • Certifications: UL 1077, CSA C22.2 No.235, IEC 60947-2
  • Reverse Feed Capable: Yes
  • HACR Rated: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: FAZ-D16/1-SP
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : FAZ Series
  • Type : FAZ
  • Voltage : 480
  • Amperage : 16
  • Phase : 1
  • Poles : 1
  • AIC rating : 10kA@277/480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
  • Protection : Thermal Magnetic

Product Data

  • UPC : 015081636918
  • Country of Origin : Romania
  • Dimensions : 3.5 in x 1 in x 3 in (Length/Depth x Height x Width)
  • Weight : 0.5
  • Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
  • Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
