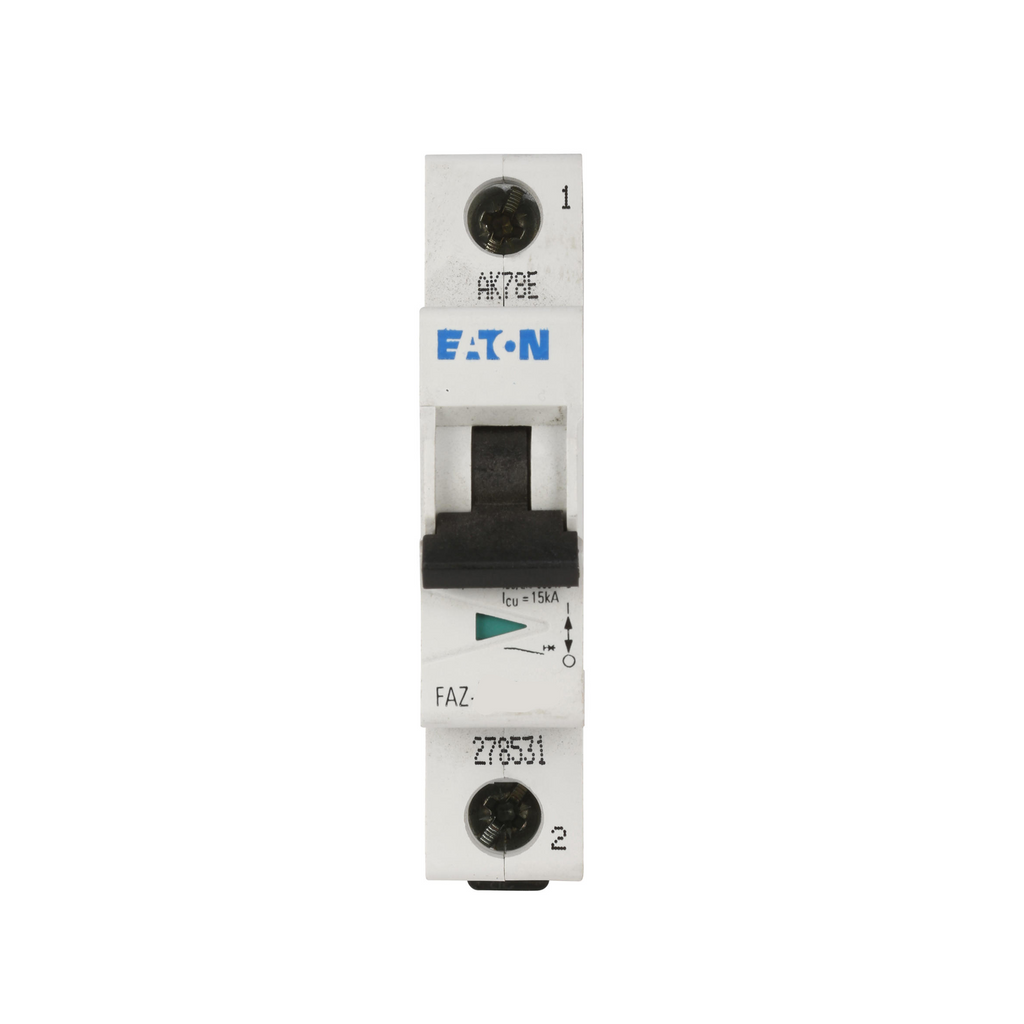

FAZ-C8/1-SP - Eaton 8A 277V 1-Pole C Curve Miniature Supplementary Protector DIN Rail

FAZ-C8/1-SP

FAZ-C8/1-SP is an Eaton 8 ampere, 1-pole miniature supplementary protector designed for DIN rail mounting.FAZ-C8/1-SP features a C curve thermal magnetic trip unit suitable for medium inrush current applications, with a voltage rating of 277 VAC/48 VDC and an interrupting rating of 10-15 kAIC. It is UL 1077 recognized and CSA certified, providing reliable circuit protection in industrial and control panel environments.

Key Specifications
• Amperage: 8 A
• Voltage Rating: 277 VAC / 48 VDC
• Number of Poles: 1
• Trip Curve: C curve
• Trip Type: Thermal magnetic
• Interrupting Rating: 10-15 kAIC @ 277 VAC
• Mounting Type: 35mm DIN rail
• Certifications: UL 1077 recognized, CSA certified, RoHS compliant
• Frequency Rating: 50-60 Hz
• Reverse Feed Capable: Yes
• Agency Approvals: UL Recognized File # E177451, CSA File # 204453

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-C8/1-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 277
• Amperage : 8
• Phase : 1
• Poles : 1
• AIC rating : 10kA@277V
• Connection : Din Rail
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508163760
• GTIN : 04015081637607
• Country of Origin : Romania
• Dimensions : 0.69 in x 0.69 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.27
• Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
• Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
