Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
FAZ-C7/1-SP

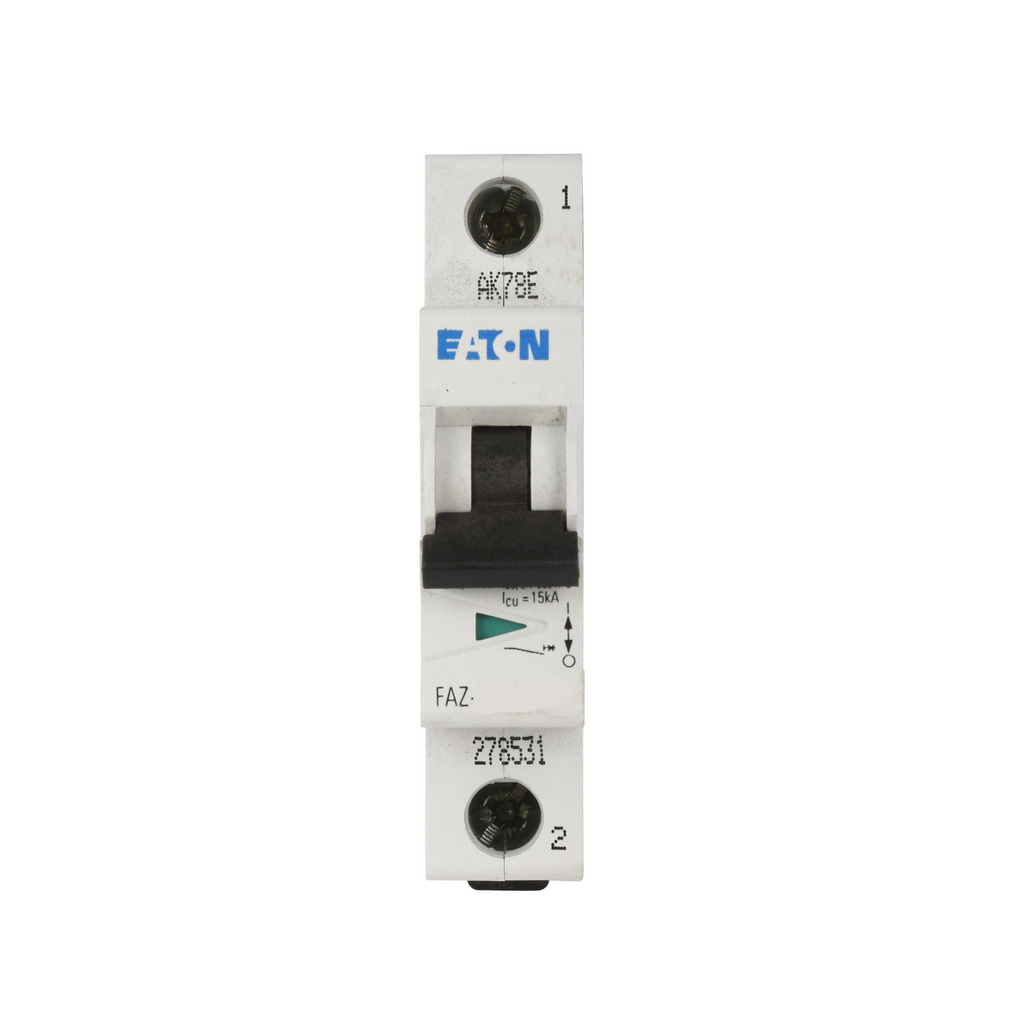

FAZ-C7/1-SP is a 7 Amp, 277 Volt, single-pole miniature circuit breaker from Eaton designed for DIN rail mounting.This Eaton FAZ series circuit breaker features a C curve trip characteristic suitable for medium inrush currents, thermal magnetic trip type, and a 15 kA interrupt rating at 277 VAC. It is UL 1077 and UL 489 certified as a supplementary protector with screw terminals and a frequency rating of 50-60 Hz.
- Amperage Rating: 7 A
- Voltage Rating: 277 VAC
- Number of Poles: Single-pole
- Trip Curve: C curve (5-10x In)
- Interrupt Rating: 15 kAIC
- Mounting Type: 35 mm DIN rail
- Trip Type: Thermal magnetic
- Terminals: Screw
- Certifications: UL 1077, UL 489
- Frequency Rating: 50-60 Hz
- Supplementary Protector Type
Specifications
- Part Number: FAZ-C7/1-SP
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAZ Series
- Type : FAZ
- Voltage : 277
- Amperage : 7
- Phase : 1
- Poles : 1
- AIC rating : 10kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 015081639766
- GTIN : 04015081639762
- Country of Origin : Germany
- Dimensions : 0.69 in x 0.75 in x 3 in (Length/Depth x Height x Width)
- Weight : 0.27
