FAZ-C50/1-SP - Eaton 50A 277V Single-Pole C Curve Miniature Circuit Breaker DIN Rail Mount

FAZ-C50/1-SP

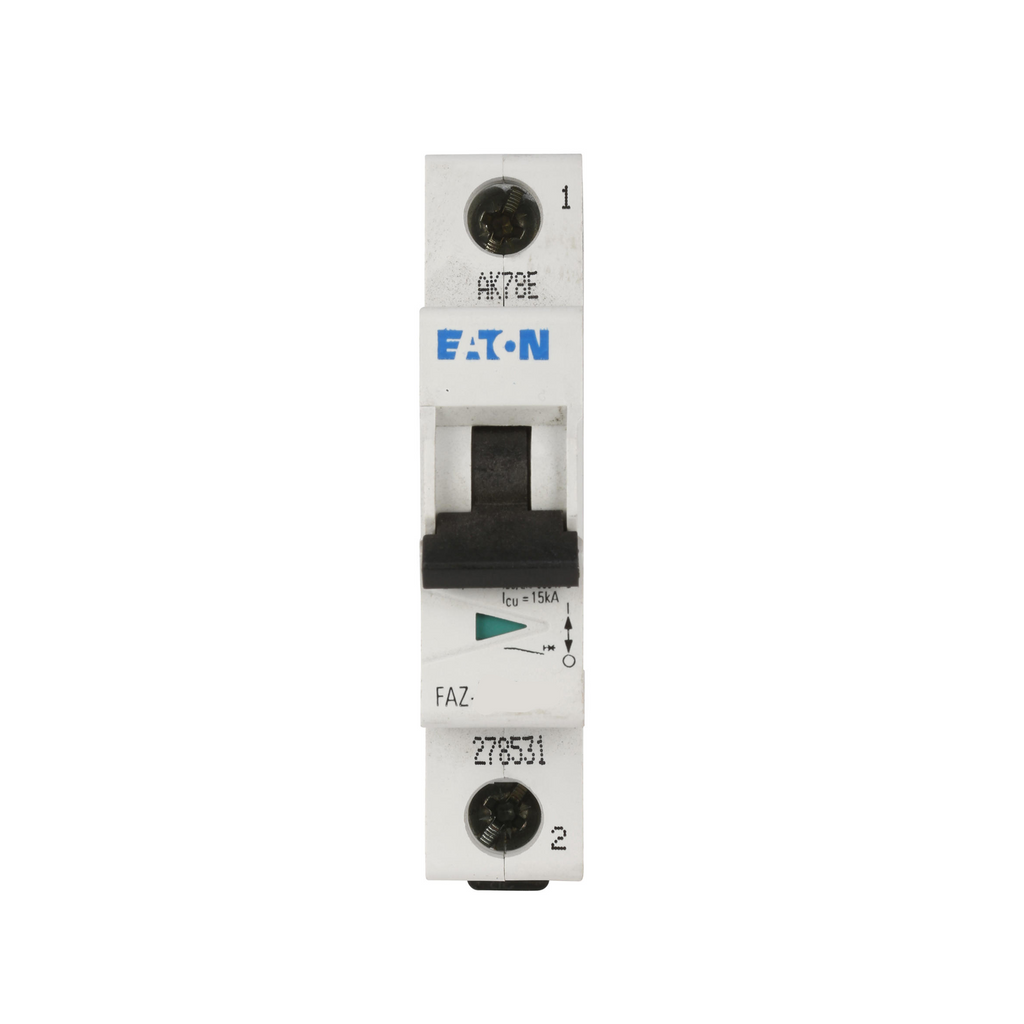

FAZ-C50/1-SP is an Eaton 50 amp, 277 volt, single-pole miniature circuit breaker designed for supplementary protection.This Eaton FAZ supplementary protector features a C curve trip characteristic suitable for medium inrush current applications. It is UL 1077 and IEC 60947-2 certified, with a 15 kA interrupt rating and thermal magnetic trip unit. The breaker mounts on a 35mm DIN rail and uses standard screw terminals.

Key Specifications
• Amperage Rating: 50 A
• Voltage Rating: 277 V AC
• Number of Poles: Single-pole
• Trip Curve: C Curve
• Interrupt Rating: 15 kAIC
• Mounting Type: DIN Rail
• Trip Type: Thermal Magnetic, 5-10X In
• Certifications: UL 1077, IEC 60947-2, CSA C22.2 No.235
• Terminals: Standard Screw
• Frequency Rating: 50-60 Hz
• Application: Suitable for medium inrush current loads

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-C50/1-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 277
• Amperage : 50
• Phase : 1
• Poles : 1
• AIC rating : 10kA@277V
• Connection : Din Rail
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508163679
• GTIN : 04015081636792
• Country of Origin : Romania
• Dimensions : 0.69 in x 1 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.3
• Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
• Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
