FAZ-C40/1-NA-SP - Eaton 40A 277V 1-Pole Thermal Magnetic Circuit Breaker C Curve

FAZ-C40/1-NA-SP

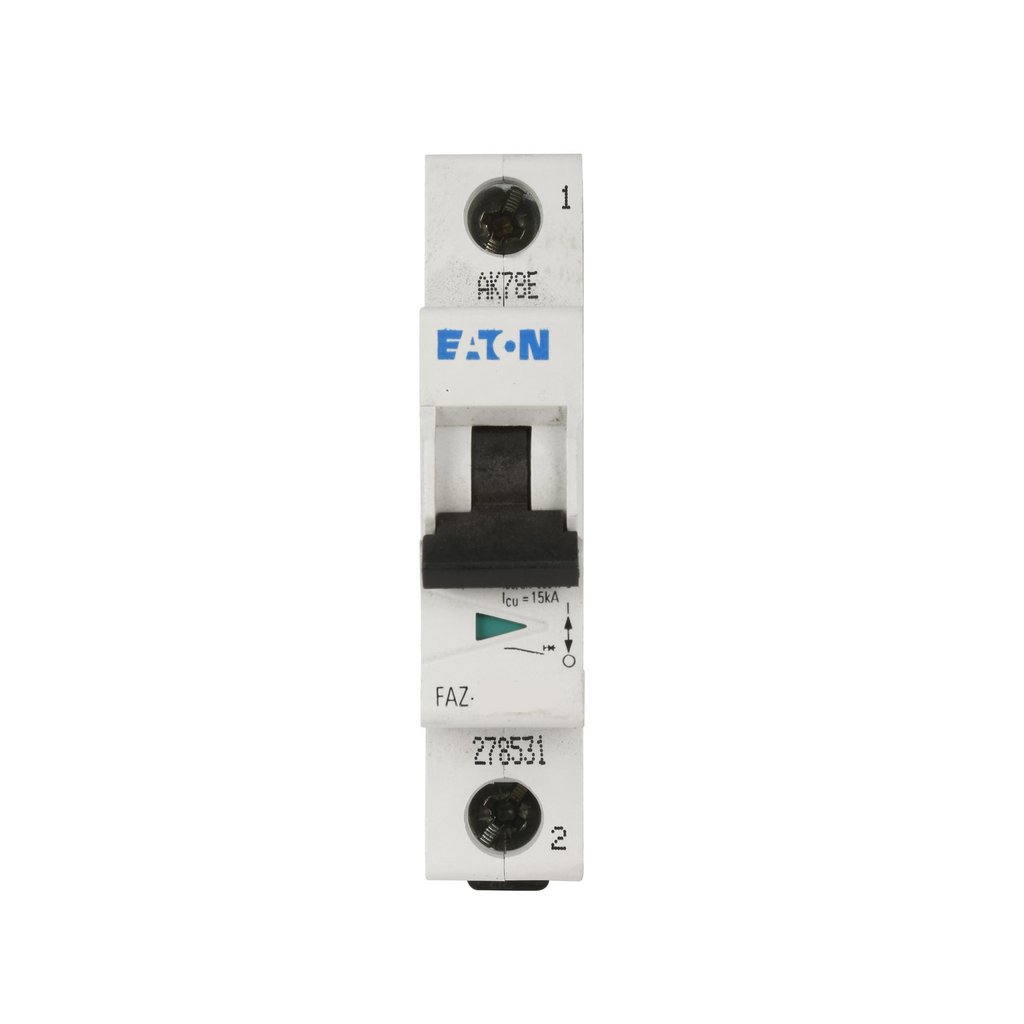

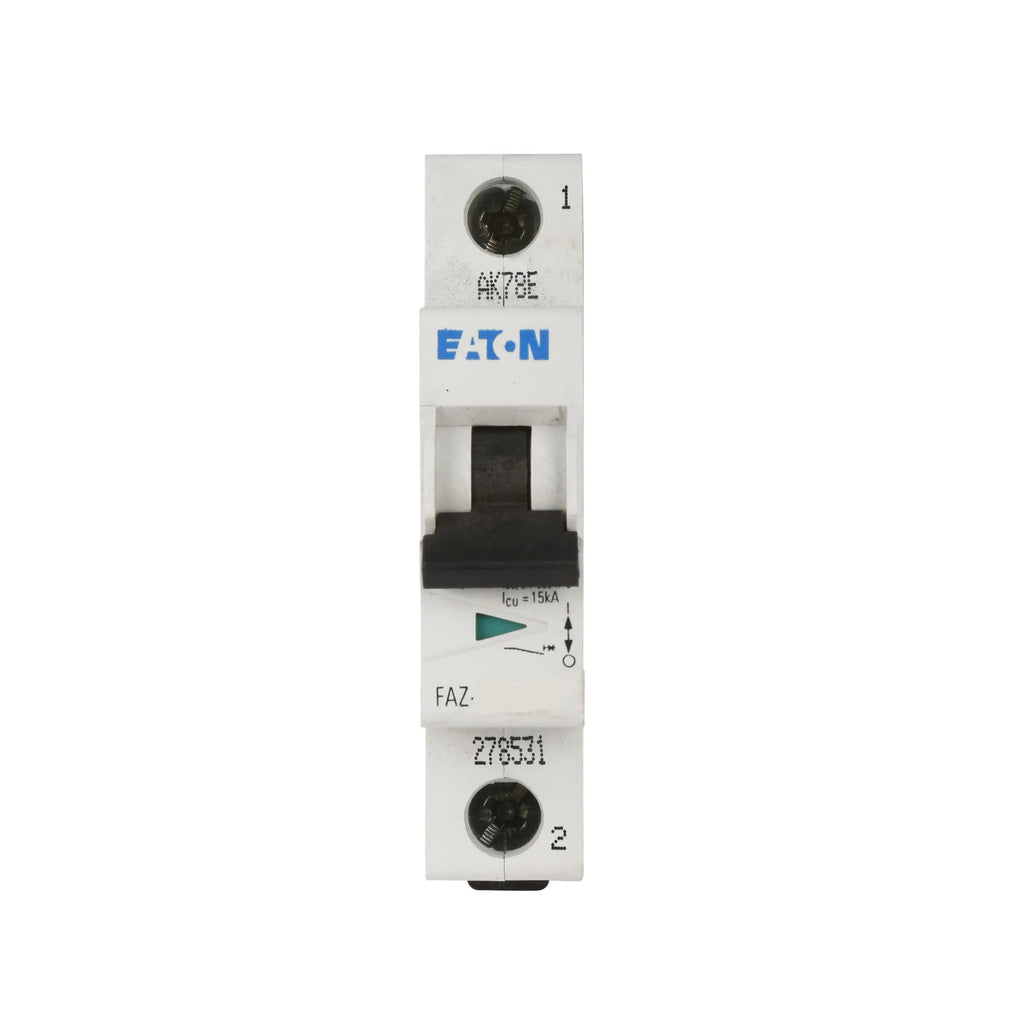

FAZ-C40/1-NA-SP is an Eaton 40 amp, 1-pole thermal magnetic circuit breaker designed for branch protection in industrial applications.This Eaton FAZ series miniature circuit breaker features a 277 VAC voltage rating, 10 kA interrupt rating, and a C curve trip characteristic suitable for medium inrush currents. It mounts on a 35mm DIN rail and complies with UL 489 and CSA C22.2 No. 235 standards. The breaker is ideal for protecting small transformers and pilot devices with reliable current limiting and thermal magnetic trip functionality.

• Amperage: 40A
• Voltage Rating: 277 VAC, 48 VDC
• Poles: 1
• Mounting Type: 35mm DIN rail
• Interrupt Rating: 10 kA
• Trip Unit: Thermal Magnetic, C Curve
• Series/Frame: Eaton FAZ
• Certifications: UL 489, CSA C22.2 No. 235, CE Marked
• Actuator Type: Lever
• Product Dimensions: 4.3 in H x 2.1 in W x 3 in D
• Weight: 0.9 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-C40/1-NA-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 10kA@480/277V
• Connection : Din Rail
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 786680133046
• GTIN : 04015081636402
• Country of Origin : Spain
• Dimensions : 0.7 in x 1 in x 2.97 in (Length/Depth x Height x Width)
• Weight : 0.3
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
