Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description

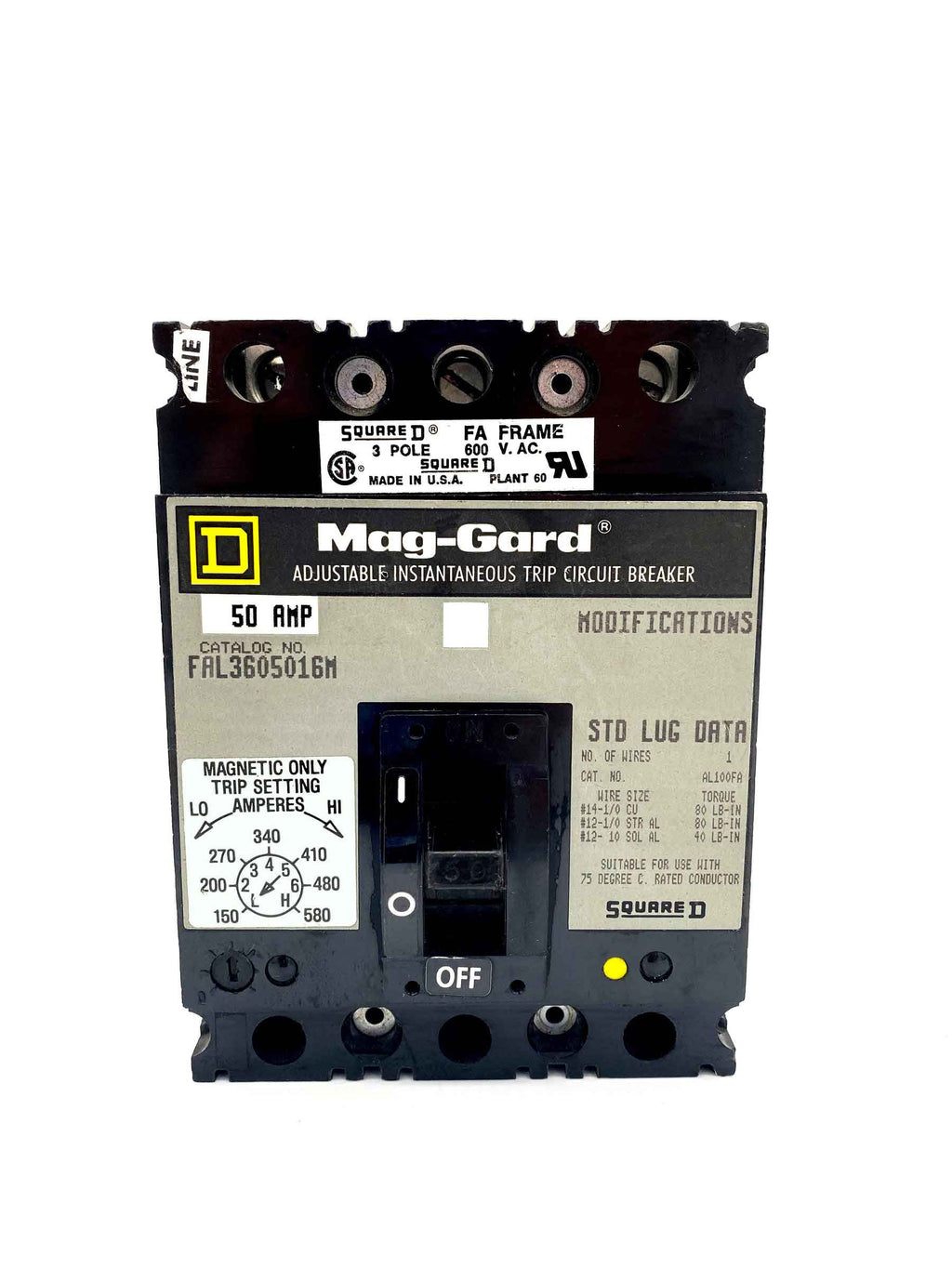

FAL3605016M
FAL3605016M is a 3 Pole magnetic molded case circuit breaker designed for reliable motor protection and industrial applications.This Square D FAL Series breaker features a 50A current rating, 600VAC voltage rating, and a feed-thru mounting configuration. It provides instantaneous trip protection with a magnetic-only trip unit, suitable for motor circuit protection. The breaker is UL and CSA listed, ensuring compliance with industry safety standards.
- Part Number: FAL3605016M
- Manufacturer: Square D
- Series/Frame: FAL
- Amperage: 50A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Feed-Thru
- Interrupting Rating: 18kAIC @ 480V
- Trip Unit: Magnetic Only, Instantaneous Trip
- Protection Type: Motor Circuit Protector
- Terminal Connection: Line and Load Side Lug
- Certifications: UL, CSA
Specifications
- Part Number: FAL3605016M
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : Instantaneous Trip
- Frame Size : F Frame
- Protection : Magnetic Only
Product Data
- UPC : 785901650355
- GTIN : 00785901423706
- Weight : 5
