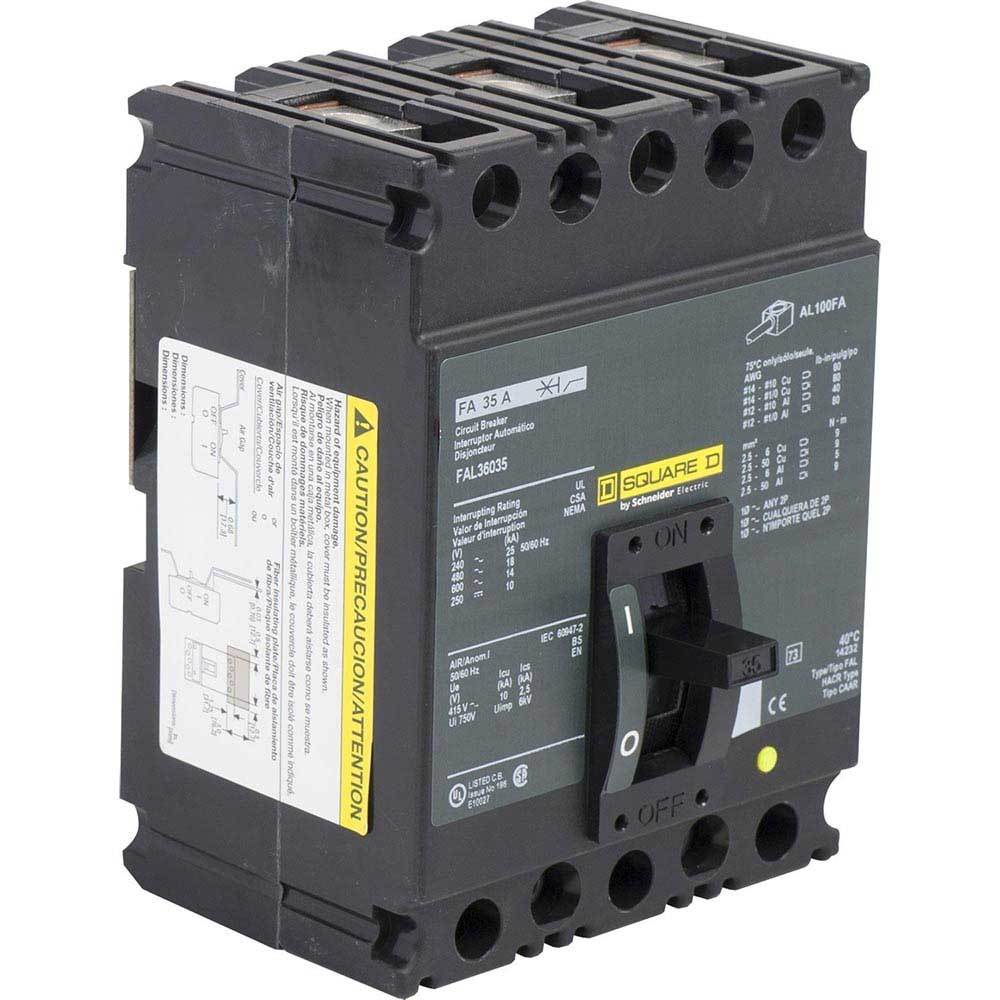

FAL36035 - Square D 35 Amp 3 Pole 600V Thermal Magnetic Circuit Breaker F Frame

FAL36035

FAL36035 is a Square D 35 Amp, 3 Pole, 600 Volt thermal magnetic molded case circuit breaker designed for panelboard mounting.FAL36035 features a feed-thru design with line and load side lug terminals, non-interchangeable trip, and an F frame. It provides reliable protection with long-time and instantaneous trip units and is rated for interrupting capacities up to 25kA at 240 VAC and 14kA at 600 VAC. This breaker is UL, CSA, and CE certified and suitable for use in various voltage applications including 240 VAC, 480 VAC, 600 VAC, and 250 VDC.

Key Specifications
• Amperage: 35 Amps
• Poles: 3 Pole
• Voltage Rating: 600 Volts
• Mounting Type: Panelboard Mount (Feed-Thru)
• Interrupting Rating: 25kA @ 240 VAC, 18kA @ 480 VAC, 14kA @ 600 VAC
• Frame/Series: F Frame, FAL Series
• Trip Unit: Thermal Magnetic, Long-Time and Instantaneous
• Certifications: UL, CSA, CE
• Dimensions: Approximately 6" H x 4.5" W x 4.13" D
• Manufacturer: Square D by Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL36035
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 600
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901529743
• GTIN : 00785901529743
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4.621
• Certification : CSA-UL LISTED
• Wire Size : AWG 14, AWG 1/0 copper)1, AWG 12, AWG 1/0 aluminium)1
