FAL360301021 - Square D 30A 600V 3 Pole FAL Series Molded Case Circuit Breaker with 120V Shunt Trip, 100A Frame, Thermal Magnetic Trip Unit, UL/CSA/CE Certified

FAL360301021

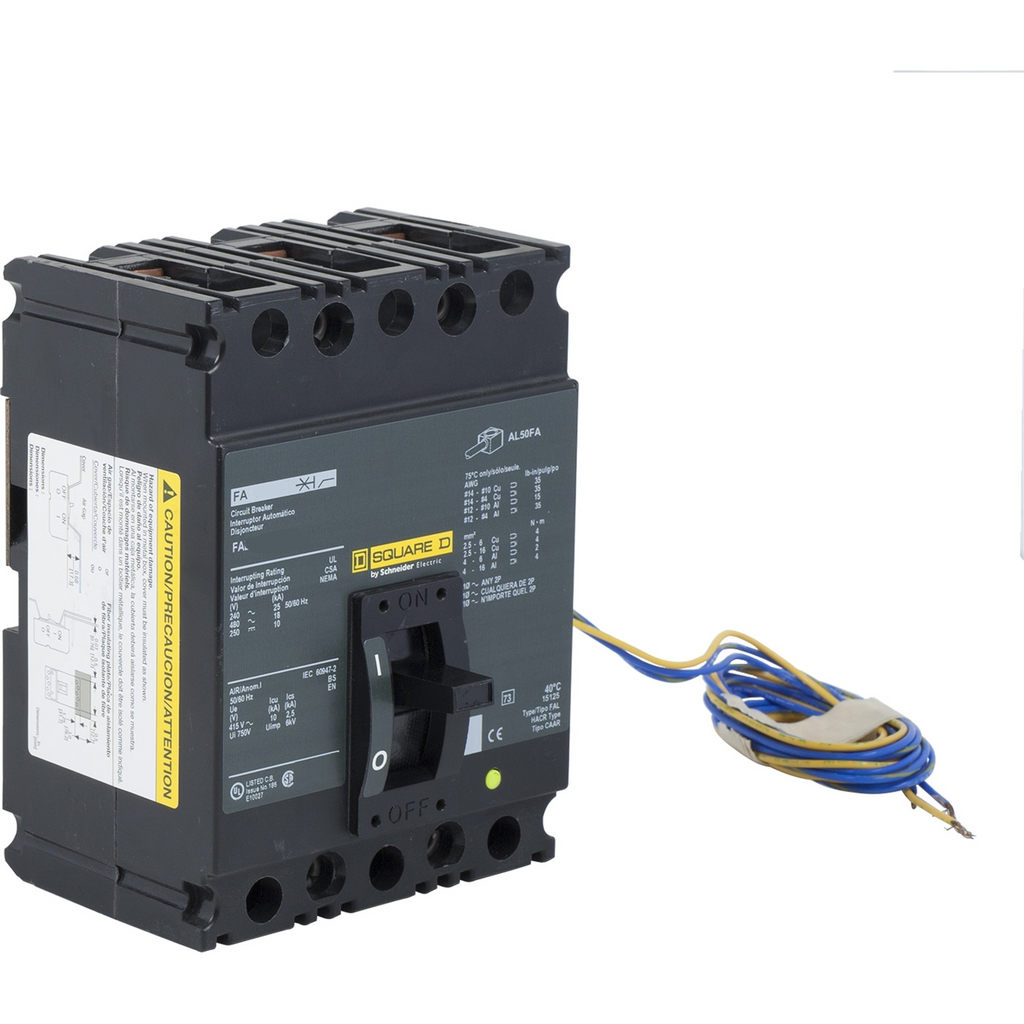

FAL360301021 is a Square D 30A, 600V, 3 pole molded case circuit breaker with an internally mounted 120V shunt trip, designed for reliable power distribution and emergency shutdown applications.

This unit features a 100A frame, thermal magnetic trip unit, and is suitable for line and load side panel mounting. It is rated for use at 240V, 480V, and 600V AC (50/60 Hz), as well as 250V DC, with interrupting ratings up to 25kA at 240V AC, 18kA at 480V AC, and 14kA at 600V AC. The breaker is UL, CSA, and CE certified, ensuring compliance with industry standards for safety and performance.

Key Specifications
• Part Number: FAL360301021
• Manufacturer: Square D
• Amperage: 30A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Panel mount (line and load)
• Interrupt Rating: 25kA at 240V AC, 18kA at 480V AC, 14kA at 600V AC
• Series/Frame: FAL Series, 100A frame
• Trip Unit: Thermal magnetic, non-interchangeable
• Shunt Trip: 120V, internally mounted
• Certifications: UL, CSA, CE
• Terminal: Plug-on
• Approvals: Underwriters Lab, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120/240Vac shunt trip

Specifications

• Part Number: FAL360301021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901129110
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 5
