Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

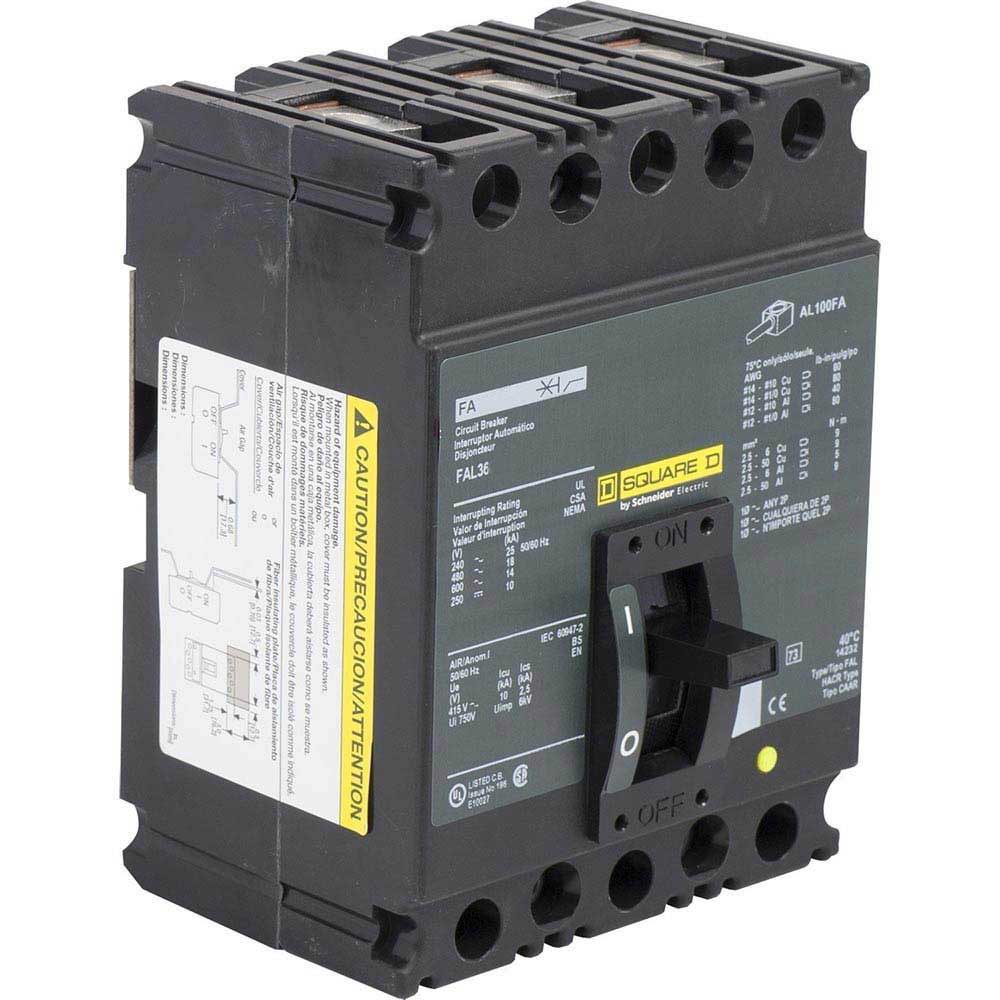

FAL36030
FAL36030 is a 3 pole, 30 amp, 600 volt thermal magnetic molded case circuit breaker from Square D designed for reliable industrial power distribution protection.This circuit breaker features a FAL frame with feed-thru mounting type, long-time and instantaneous trip functions (LI), and an interrupting rating of 18kAIC at 480V. It includes line and load side lug terminals and is UL and CSA certified, meeting HACR standards for HVAC applications.
- Manufacturer: Square D
- Part Number: FAL36030
- Amperage: 30 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: FAL
- Mounting Type: Feed-Thru
- Interrupt Rating: 18kAIC at 480V
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Terminal Connection: Line and Load Side Lug
- Certifications: UL, CSA, HACR
- Dimensions (HxWxD): 6.4 x 4.5 x 4.13 inches
Specifications
- Part Number: FAL36030
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 078590142362
- GTIN : 00785901423621
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 4.989
- Wire Size : 12-4 AWG (Aluminum) 14-4 AWG (Copper)
