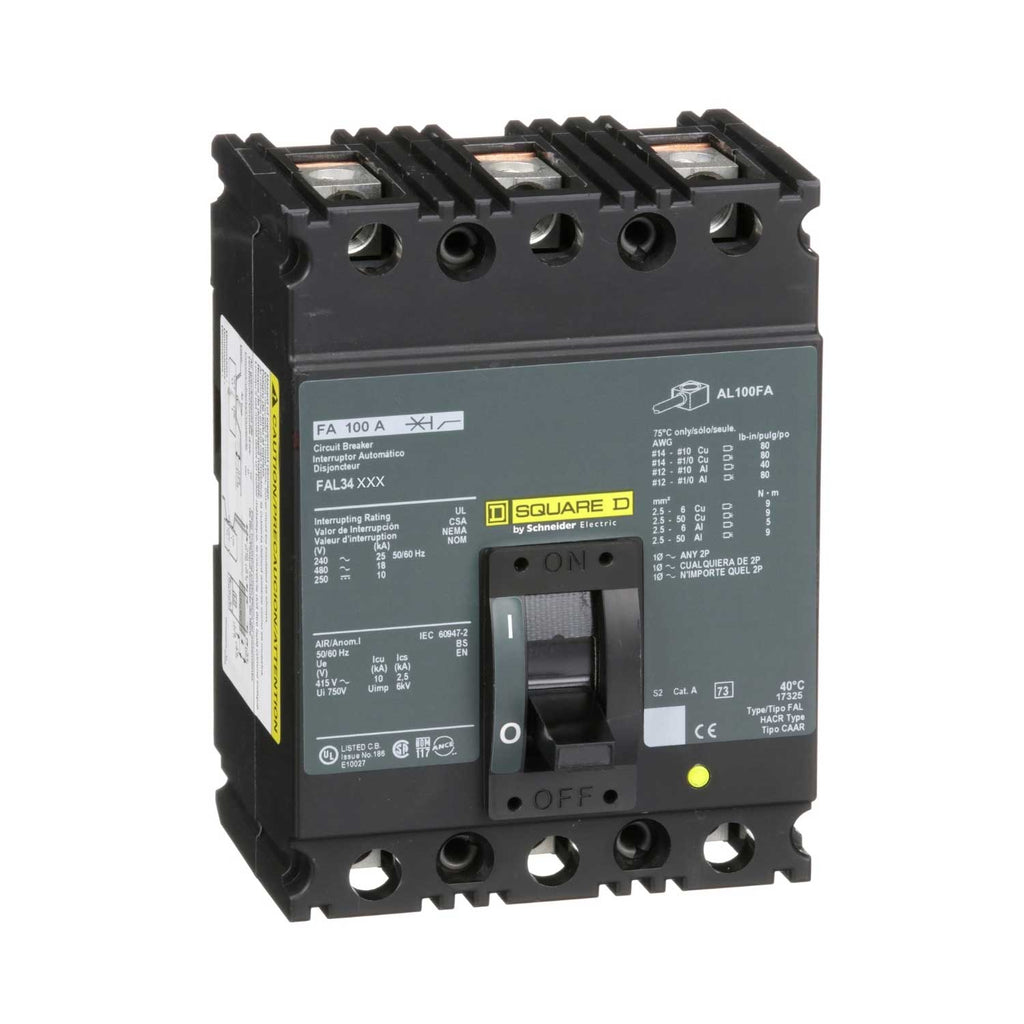

FAL34050 - Square D 50A 480V 3 Pole Molded Case Circuit Breaker F Frame Thermal Magnetic

FAL34050

FAL34050 is a Square D 3 pole molded case circuit breaker rated for 50 amps and 480 volts, designed for industrial power distribution protection.This FAL series breaker features thermal magnetic trip units providing adjustable trip protection against overloads and short circuits. It supports 3-phase systems with a bolt-on mounting type and includes aluminum/copper line and load lugs for secure connections. The breaker has an interrupt rating of 25kA at 240VAC and 18kA at 480VAC, meeting UL, CSA, and CE certifications for safety and reliability.

• Brand: Square D
• Series: FAL
• Amperage: 50A at 40°C
• Voltage: 480 VAC / 250 VDC
• Poles: 3
• Phase: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA at 240 VAC, 18kA at 480 VAC
• Trip Unit: Thermal Magnetic, Adjustable
• Terminal Type: Aluminum/Copper Line and Load Lugs
• Certifications: UL Listed, CSA Certified, CE Listed
• Frame: F Frame

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL34050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 480
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901423362
• GTIN : 00785901423362
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 5.031
