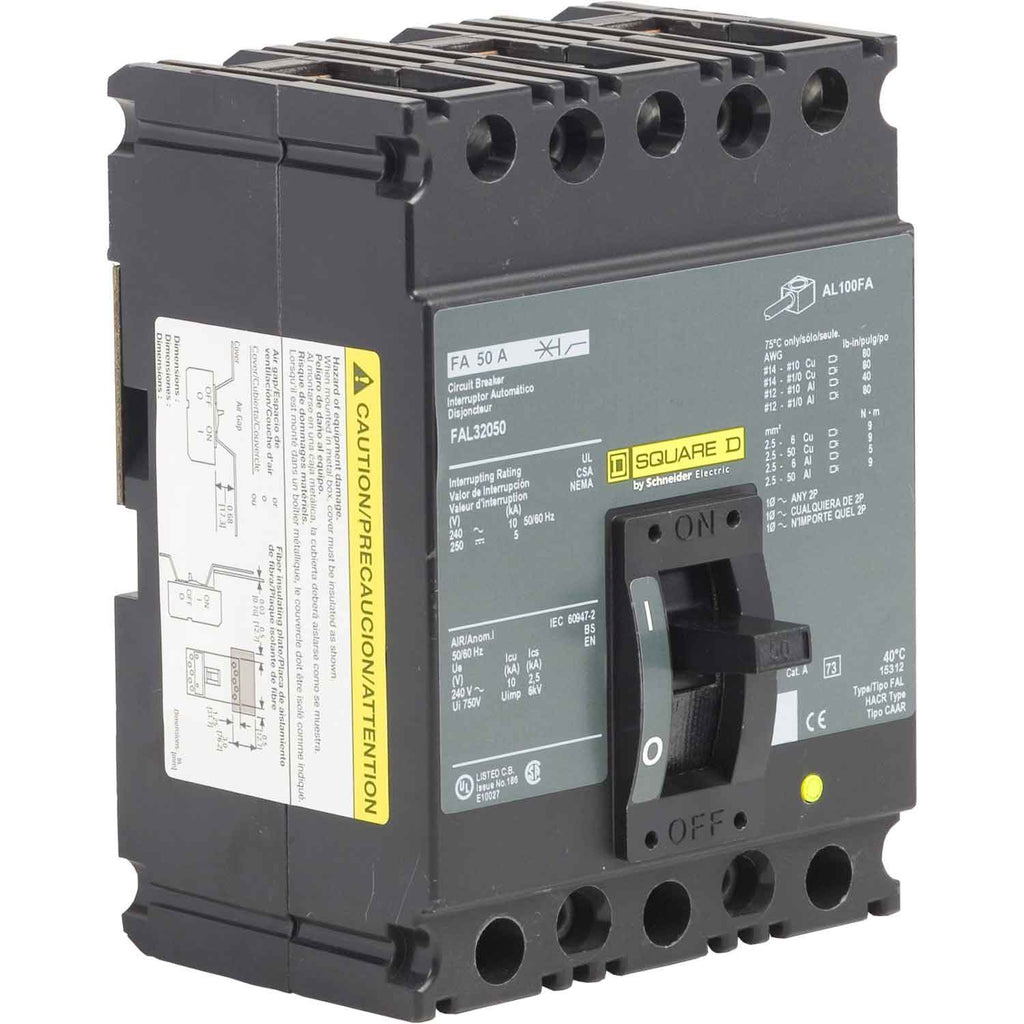

FAL32050 - Square D 50 Amp 240 Volt 3 Pole Molded Case Circuit Breaker Feed-Thru

FAL32050

FAL32050 is a 3 pole, 50 amp, 240 volt molded case circuit breaker from Square D designed for reliable thermal magnetic protection.This Square D FAL32050 circuit breaker features a feed-thru design with line and load side lug terminals, a 10kA interrupt rating at 240V, and thermal magnetic trip unit including long-time and instantaneous trip functions. It mounts as a unit mount breaker and is part of the FAL series, providing robust circuit protection for industrial and commercial applications.

• Amperage: 50 Amps
• Voltage: 240 Volts
• Poles: 3
• Mounting Type: Unit Mount
• Interrupt Rating: 10kA @ 240V AC
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Terminals: Line and Load Side Lugs
• Series/Frame: FAL
• Type: Molded Case Circuit Breaker
• Certifications: OEM Authentic Square D Product

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL32050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 240
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 100A/FA
• MCM Size : Min. Wire Size 14 AWG (Cu), 12 AWG (Al) Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901423058
• GTIN : 00785901423058
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4.989
• Standards : UL Listed, CSA Certified, CE Marked, IEC, Federal Specification W-C-375B/GEN
