Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAL320301212

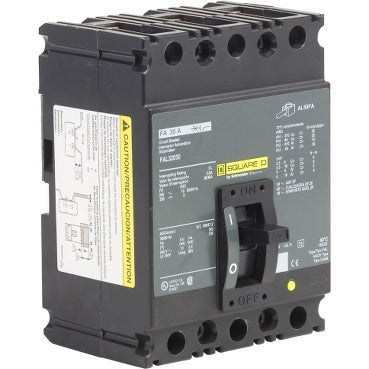

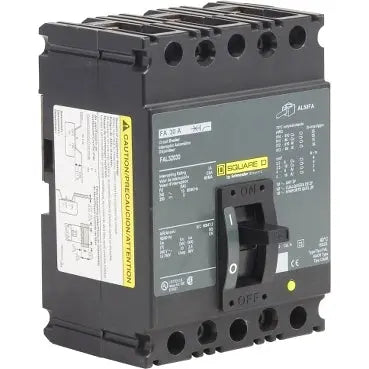

FAL320301212 is a Square D 3 pole molded case circuit breaker rated for 100 amps and 240 volts, designed for reliable circuit protection.This circuit breaker features a thermal magnetic trip unit, suitable for a variety of industrial and commercial applications. It has a frame rating of 100 amps with a trip rating of 30 amps, providing precise overload and short circuit protection. The breaker is designed for mounting in standard panelboards and switchgear, with a maximum voltage rating of 240V AC. It meets industry certifications ensuring safety and performance.
- Manufacturer: Square D
- Part Number: FAL320301212
- Amperage: 100A Frame, 30A Trip
- Voltage Rating: 240V AC
- Poles: 3
- Type: Molded Case Circuit Breaker
- Trip Unit: Thermal Magnetic
- Series/Frame: FAL
- Mounting Type: Panelboard/Switchgear
- Interrupt Rating: Not explicitly specified
- Certifications: Industry standard certified
Specifications
- Part Number: FAL320301212
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 240
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Country of Origin : Mexico
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 4
